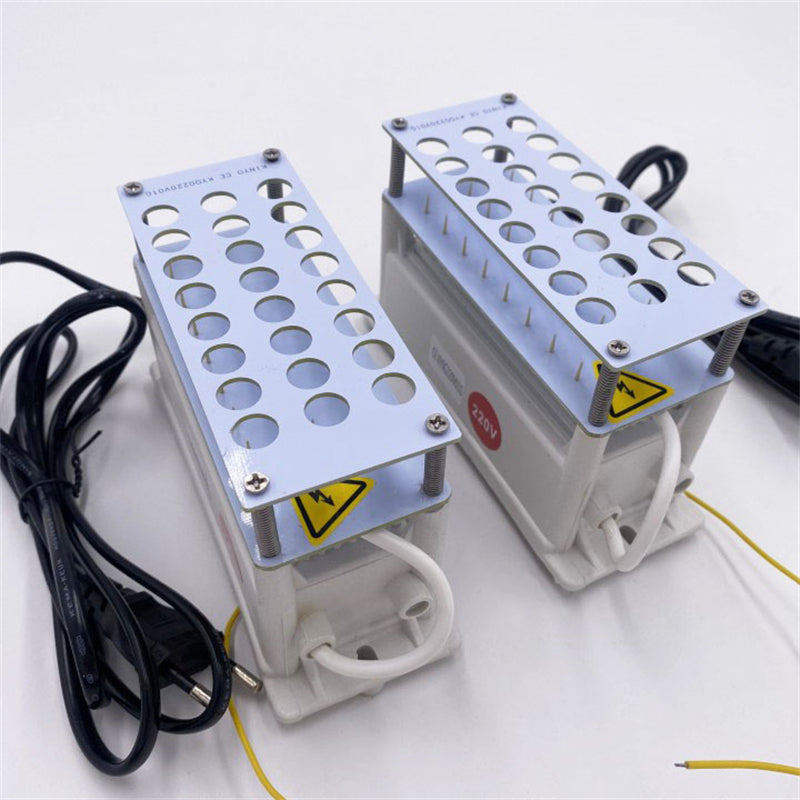

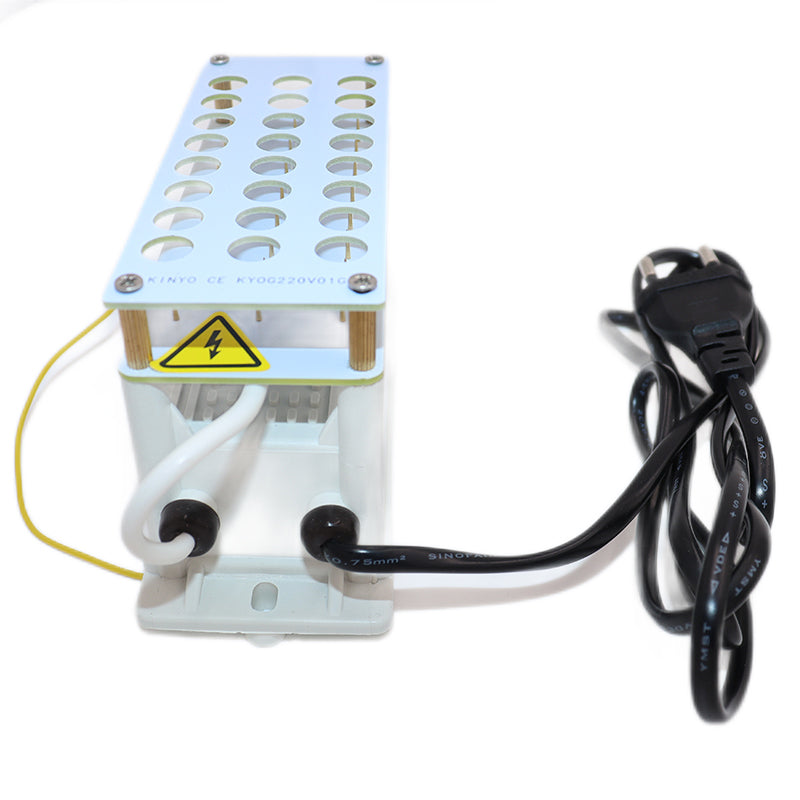

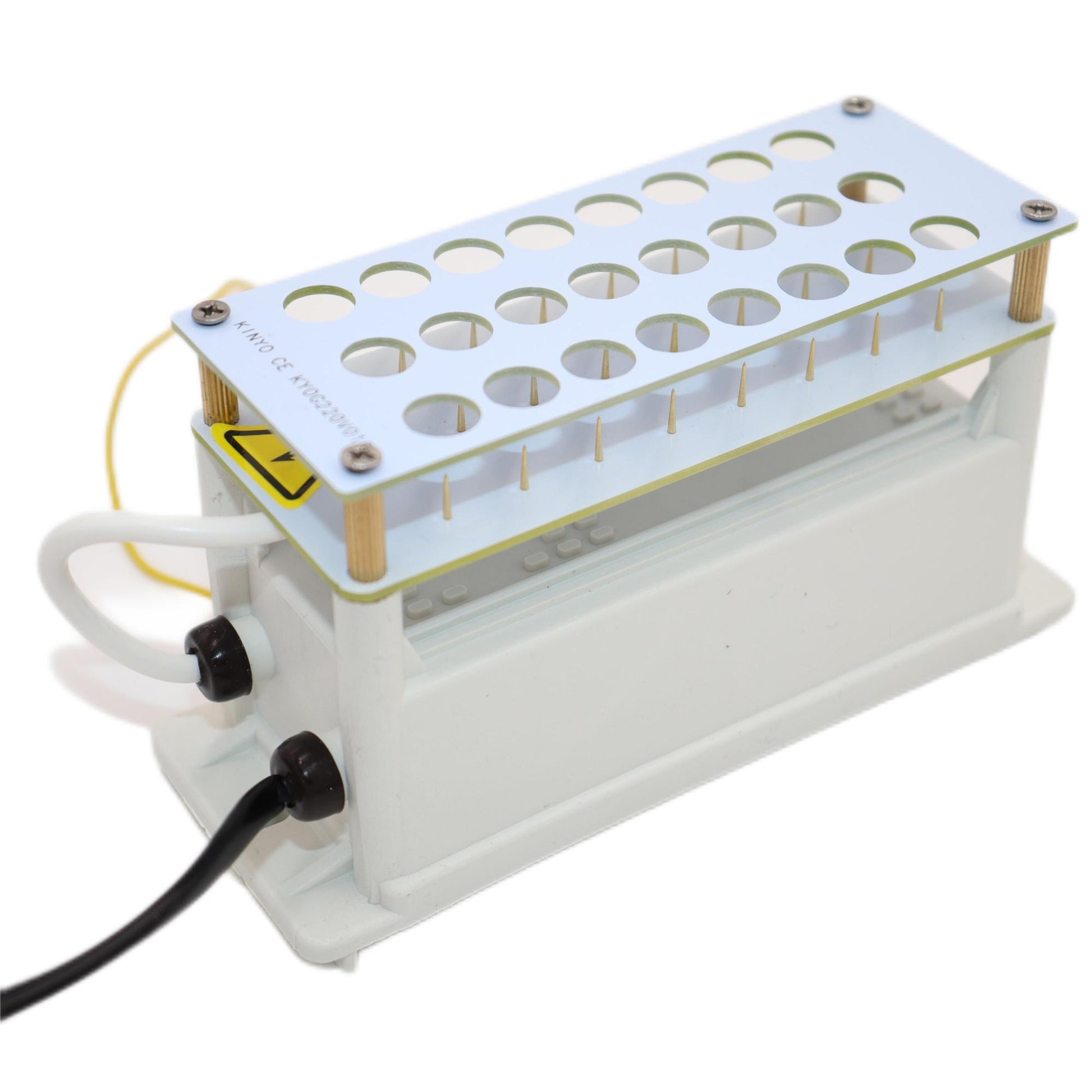

Needle Type Plasma Ion Generator Ionizer

Breathe easy with the Plasma Ion Anion Generator Ionizer Air Purifiers. Its Needle Ionizer produces up to 200 million ions to purify the air and eliminate the harmful bacteria that surrounds you. Conquer the air quality challenge with this powerful air purifier!

Specification：

• Model: KYOG220V01GP
• Negative ion concentration:>200 Million PCS/cm3
• Input voltage: AC80V-AC260V/50Hz
• Output voltage: -25KV~-22KV
• Can Meet standards: UL, CUL, TUV, CE, CB, EMC, RoHS, REACH
• Features: No ozone, low noise, long life.
• Lifetime:15000hours
• Power:<5W
• Max output current :Adjustable
• Applicable air volume:< 2500m3/h
• High voltage output: -1.6KV DC
• Size：146*55*60mm

Protective functions：

• Current double closed-loop control
• Output short circuit protection
• Overload protection
• Fault signal output （optional）

Cautions：

• Make sure that the tip of the needle is upright and no objects touch.
• Do not touch the tip of the needle with any objects when it works.
•  In order to prolong the service life of the product, please use it with a fan, work for 6 hour and rest for 5-10 minutes.
• Use environment: temperature should not exceed 30℃, humidity should not exceed 80%
