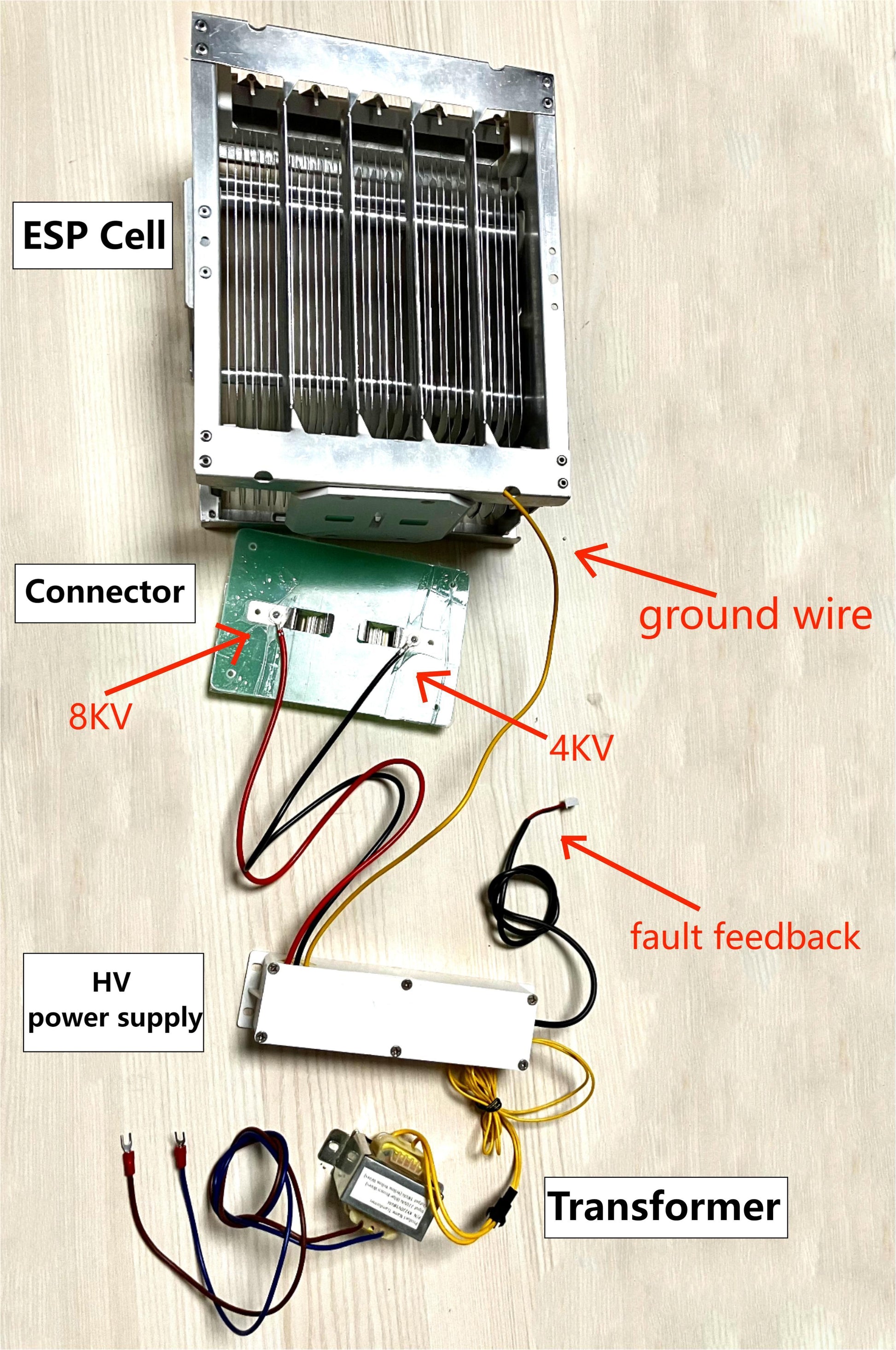

This 3W high voltage power supply is specifically designed for ESP purifiers, providing fault feedback and high voltage protection for safe and stable operation. With its reliable performance, you can confidently enjoy the benefits of clean air.
Protecting Functions：
1. Output short circuit protection, 2. Arc-pull protection: 2~5 seconds continuous arc protection 3. Signal description
Selling Points：
1. Using unique high-voltage voltage and current double closed-loop control patent technology to ensure consistent purification efficiency and effective control of ozone concentration. 2. Kinyo has over 20 years of experience in R&D and manufacturing. Our products are efficient and reliable by advanced technology.
Specification：
Model: KYOG12V04
Input voltage: 12VDC or 24VDC or 85V~250VAC 50Hz/60Hz (Customizable)
Maximum Power Consumption: 2 Watts
Double high voltage output: 8/4KVDC (Customizable)
Output current: (Adjustable)
Air volume:< 200m3/h
Fault signal feedback: Working normally: 0VDC; Fault: 4.5VDC

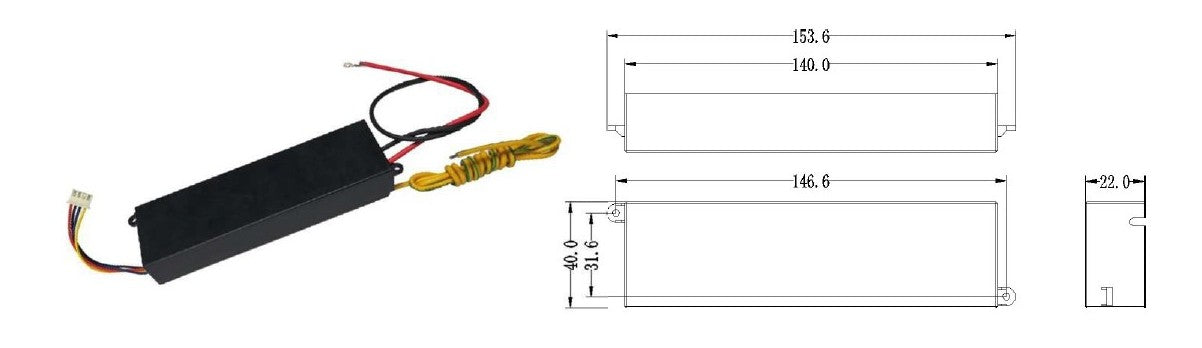

Size:154×22×40mm (Customizable)

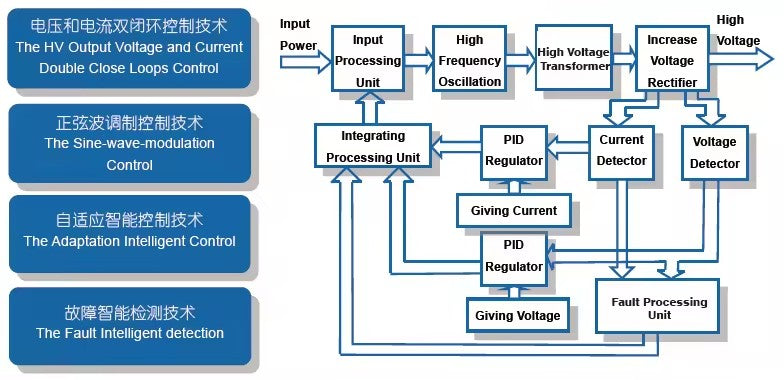

Control Technology: Current and voltage double close loop control.
