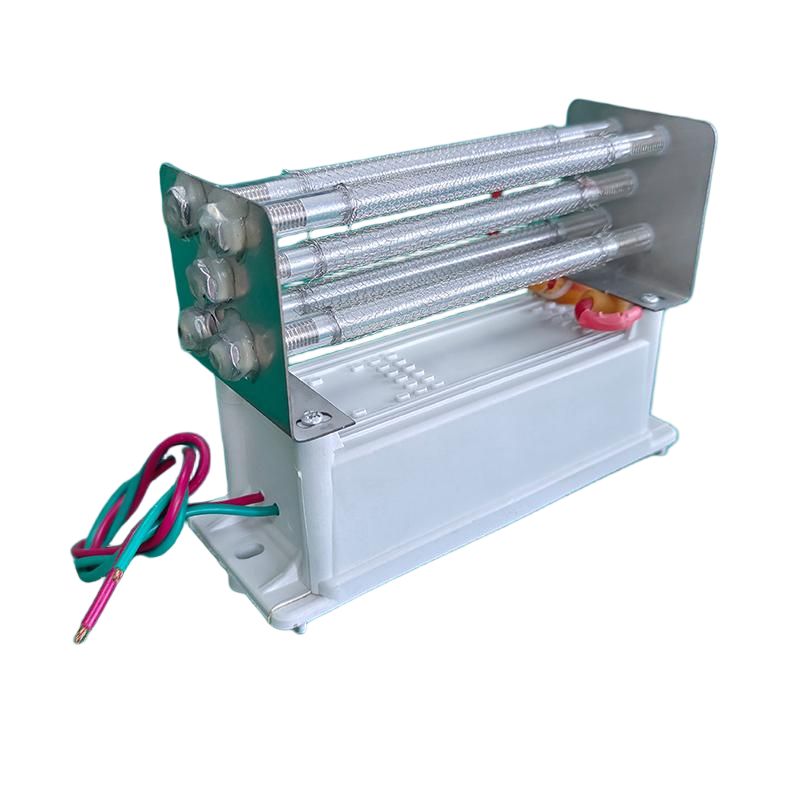

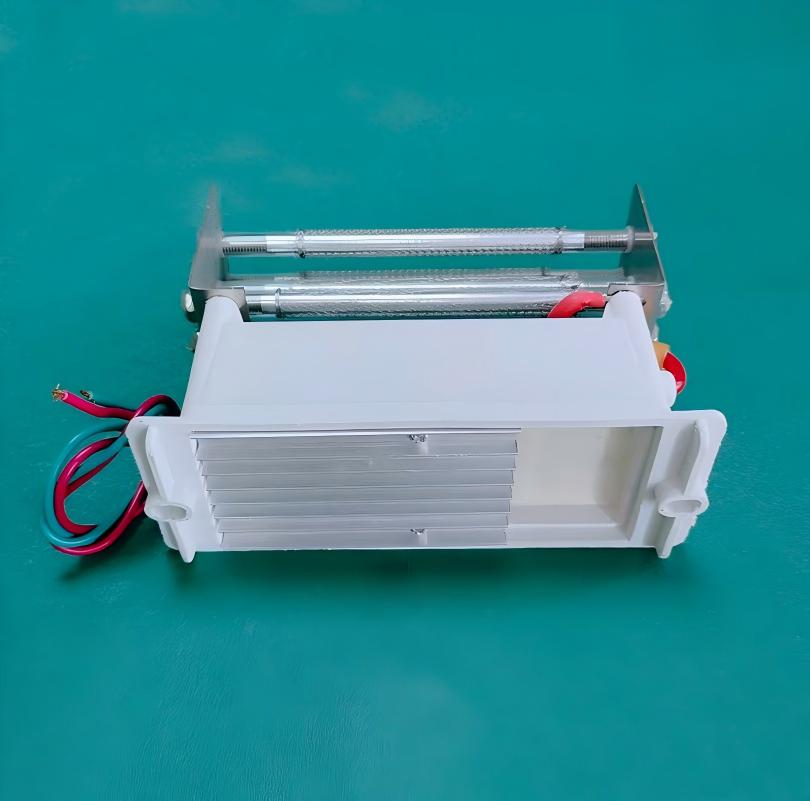

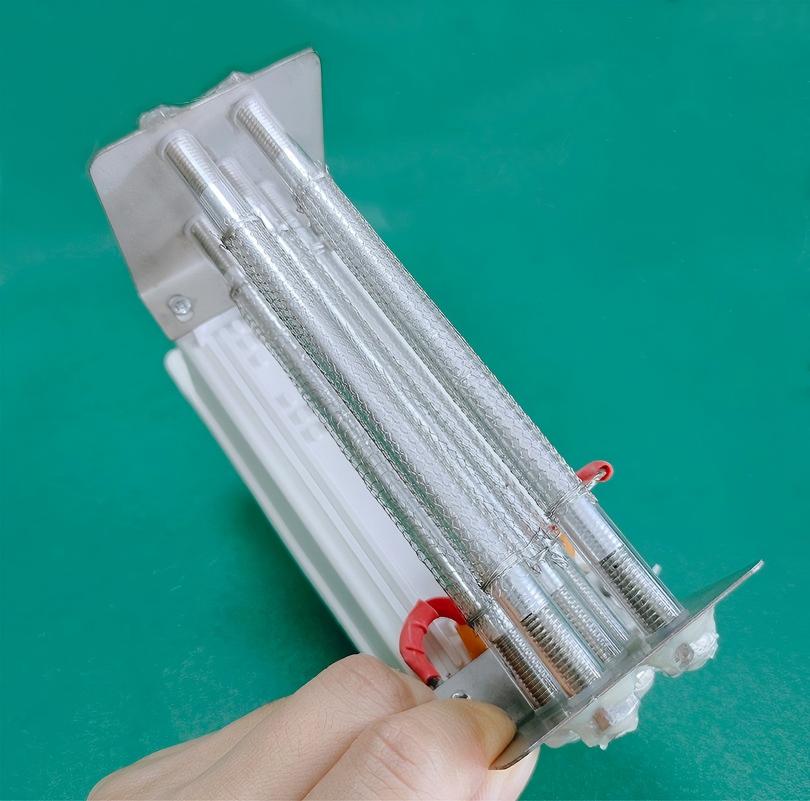

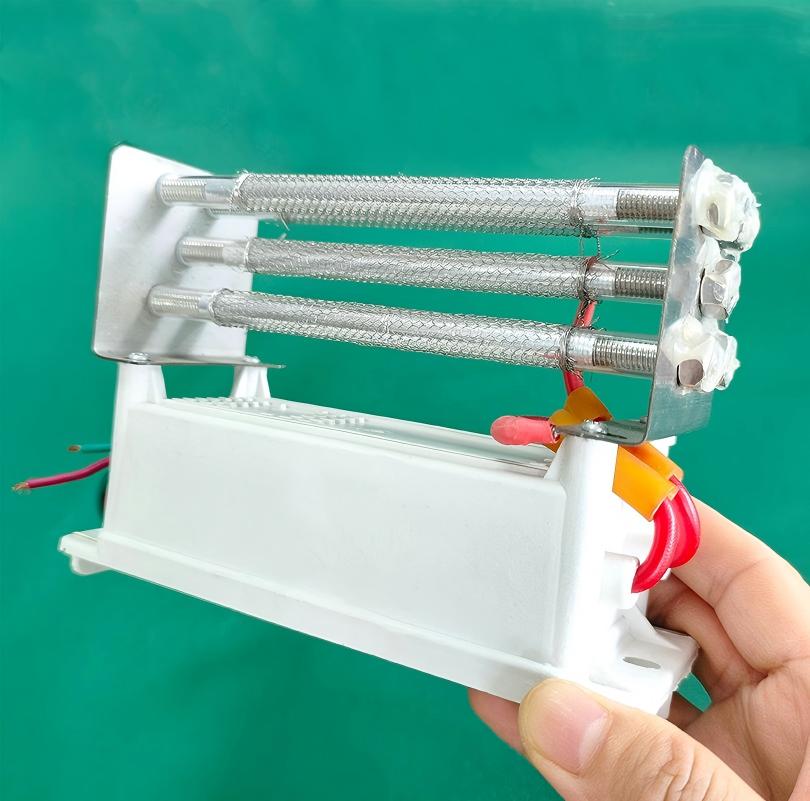

15G/H Tube Type Ozone Durable Ozone Generator

The latest version tube type ozone generator is durable and  efficient, and additional models ranging from 0.1G/H to 20G/H can be requested.

Specification

High Voltage: 3.1KV-3.5KV
Ozone Power Supply Dimensions: 145 × 55 × 40 mm
Ozone Tube Dimensions: 200 × 45 mm
Power: 60 W ± 5 W
Input Voltage: AC 220 V
Output Voltage: 3.5 kV ± 5% (3500 V ± 500)
Input Current: ≤ 380 mA
Power Factor: ≥ 0.95
Applicable Discharge Gap: 3 – 5 mm
Frequency: ~16 kHz
Operating Mode: Intermittent continuous pulse discharge, ozone generation plate operates continuously
Safety Performance: 3 kV isolation between primary and secondary
Protection Functions: Open-circuit and short-circuit protection
Gas Feed: Dry air or oxygen
Ozone Generation Method: Electric Discharge
Cooling Method: Ambient air cooling

Features：

• Durable and Portable.
• High efficiency sterilization
• Safe and efficient.

Application:
Dryer, Dishwasher, Refrigerator, Electronic shoe cabinet, Air purifier and so on.
