Miniature 4-Needle Bipolar Plasma Generator Module | KYOG12V03GP-1 | 100M Ions/cm³, DC 12V

$27.00 USD

Sale Sold out

Shipping calculated at checkout.

Configuration KYOG12V03GP-1 Custom OEM/ODM Solution

≥ 99.9%

Overall Sterilization

≥ 90%

Bacteria Removal

100M

Ions / cm³ Density

< 1.0 W

Low Power Draw

Engineered for Space-Constrained Air Purification & OEM Appliances: The KYOG12V03GP-1 is an ultra-compact bipolar needlepoint plasma generator engineered specifically for tight spaces such as automotive purifiers, smart appliances, HVAC dampers, and medical/commercial electronic systems. Featuring a 4-needle matrix emitter sealed in high-grade flame-retardant epoxy resin, it delivers over 100 million pcs/cm³ of balanced positive and negative ions at under 1 Watt power consumption, neutralizing airborne pathogens and odors right at the source.

Performance & Verification

Parameter	Result	Notes
Staphylococcus Aureus Sterilization	≥ 99.9%	Third-Party Tested
Natural Airborne Bacteria Removal	≥ 90%	Third-Party Tested
Bipolar Ion Output (Positive/Negative)	100 million pcs/cm³ each	Internal Laboratory Test
Ozone Concentration	< 0.05 ppm	Internal Laboratory Test
Operating Noise	< 25 dB(A)	Internal Laboratory Test

Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.

Engineering Highlights

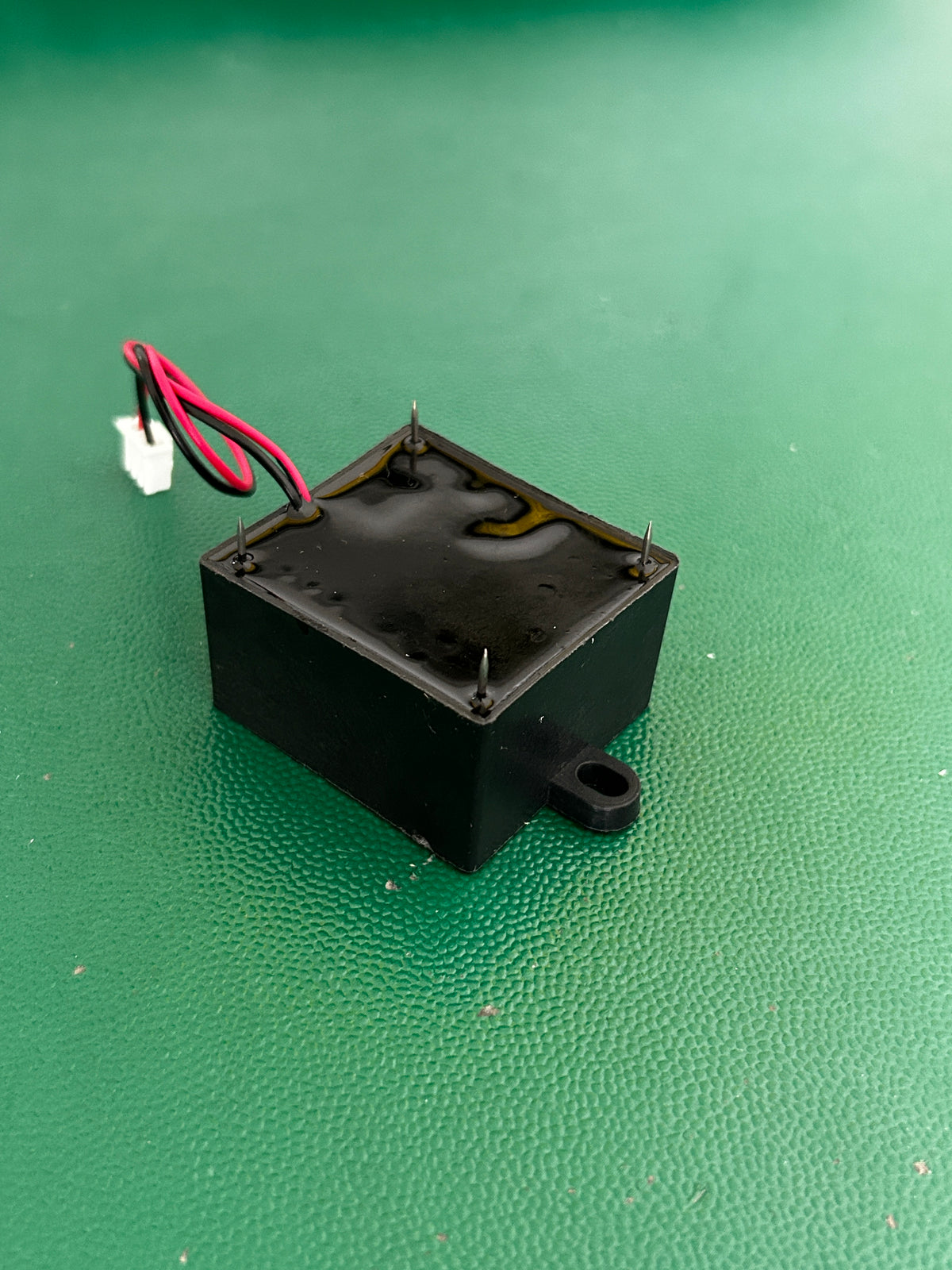

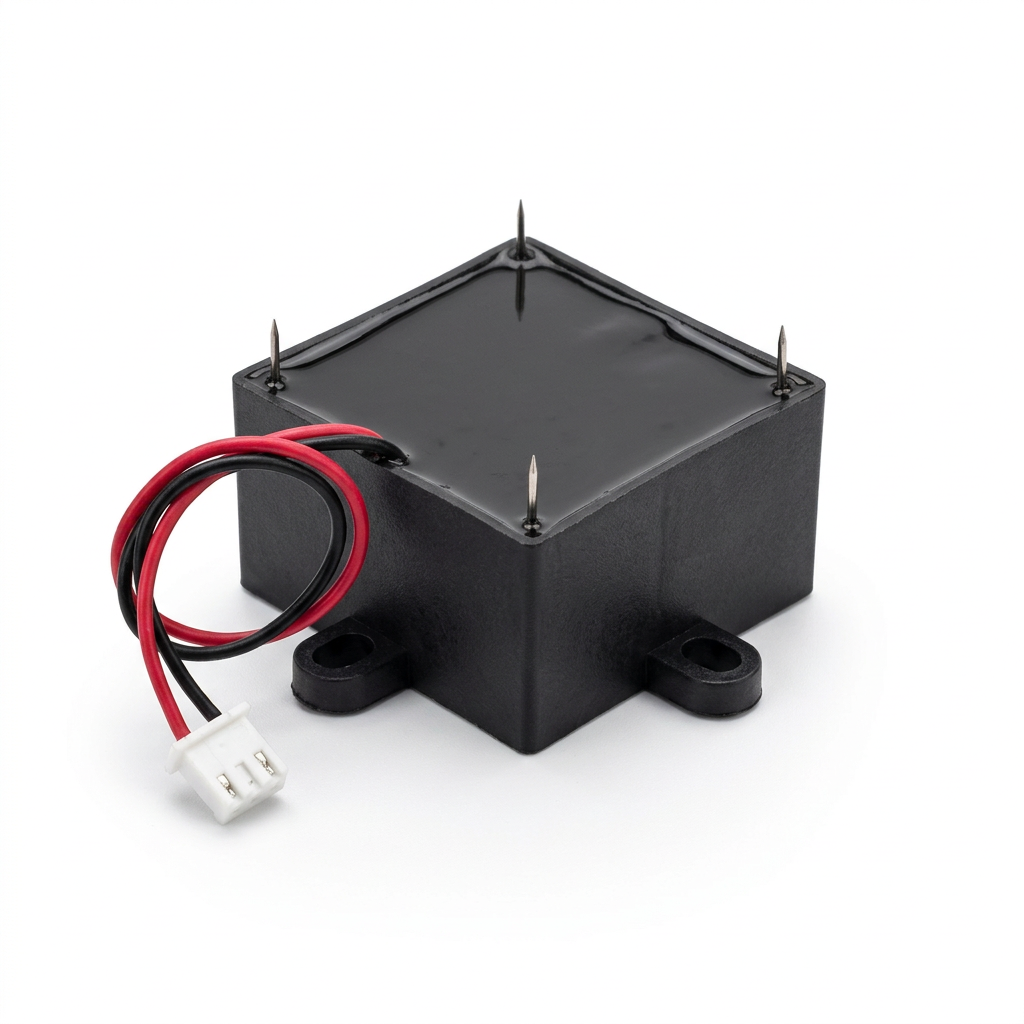

01. 4-Needle Matrix Emitter

Precision four-corner needlepoint electrode array delivers uniform, high-density bipolar ionization across localized airflows without bulky discharge grids.

02. Ultra-Compact Envelope (45 × 40 mm)

Minimalist cubic form factor with dual side screw mounting flanges allows seamless integration into extremely tight structural cavities.

03. Sub-1W High Efficiency Operation

04. Fully Potted Epoxy Moisture-Proof Sealing

High-voltage components are vacuum potted in flame-retardant epoxy resin, ensuring long-term insulation and resistance against moisture, dust, and vibration.

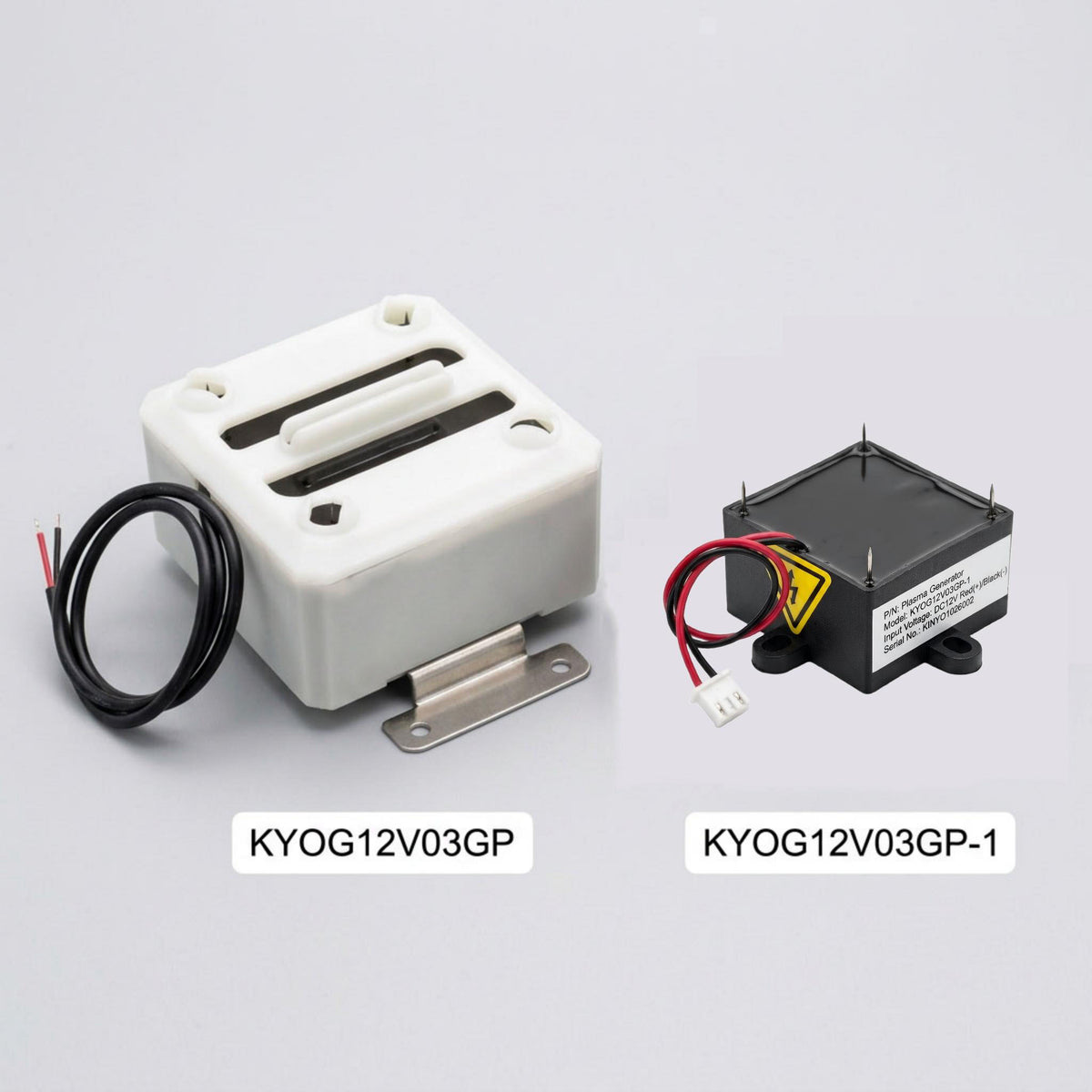

Series Selection Guide: Bipolar Needlepoint Plasma Series

Model	KYOG12V03GP (Standard)	KYOG12V03GP-1 (Compact Micro)
Emitter Configuration	Dual-polar discharge needles	4-Needle Matrix Array
Dimensions	75 × 72 × 48.5 mm	45 × 40 × 26 mm
Input Voltage / Power	DC 12V, 5W	DC 12V, < 1W
Airflow Capacity	Up to 1,000 m³/h	Up to 250 m³/h (Localized / In-duct)
Primary Applications	Central HVAC, main ducts, AHUs	Vehicle purifiers, compact appliances, dampers

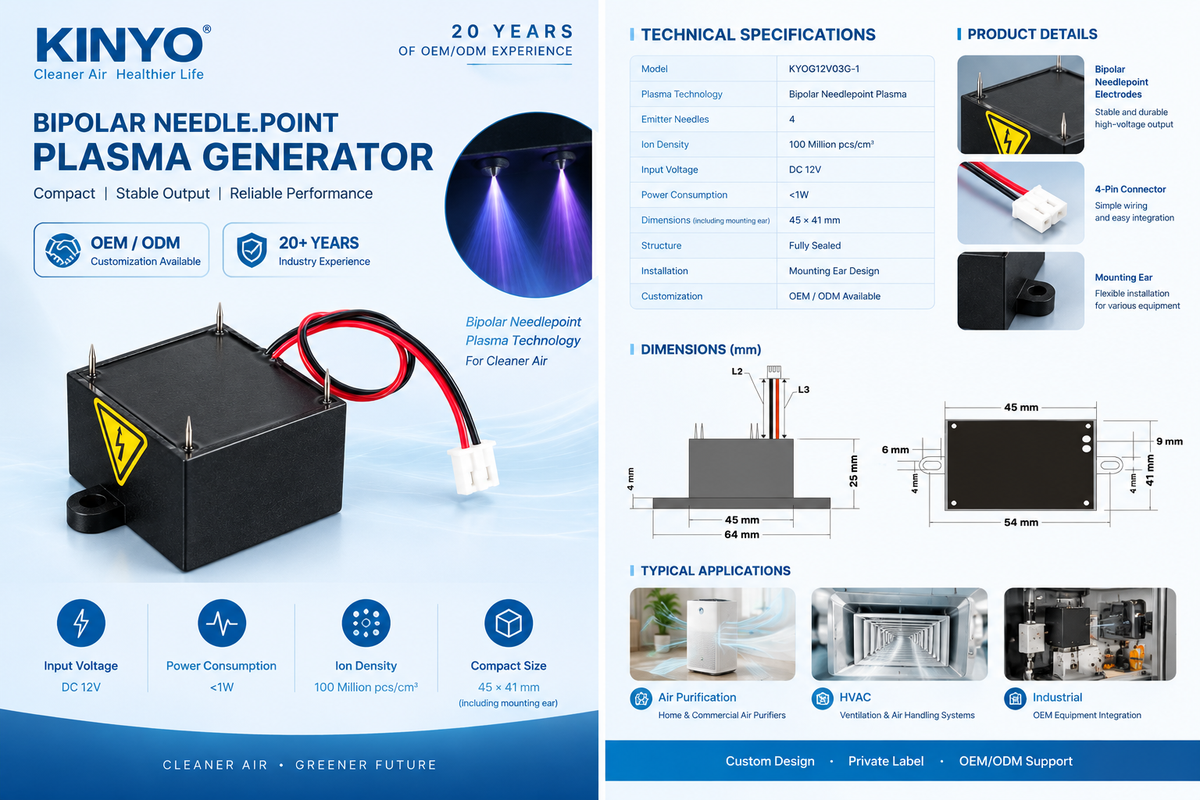

Technical Data & Specifications

Model	KYOG12V03GP-1
Operating Voltage	12V DC (Rated)
Power Consumption	< 1.0 W
Discharge Structure	4-Needle Corner Matrix Array
Housing Dimensions	45 × 40 × 26 mm (excluding flanges)
Mounting Type	Dual-Side Flange Screw Fixation

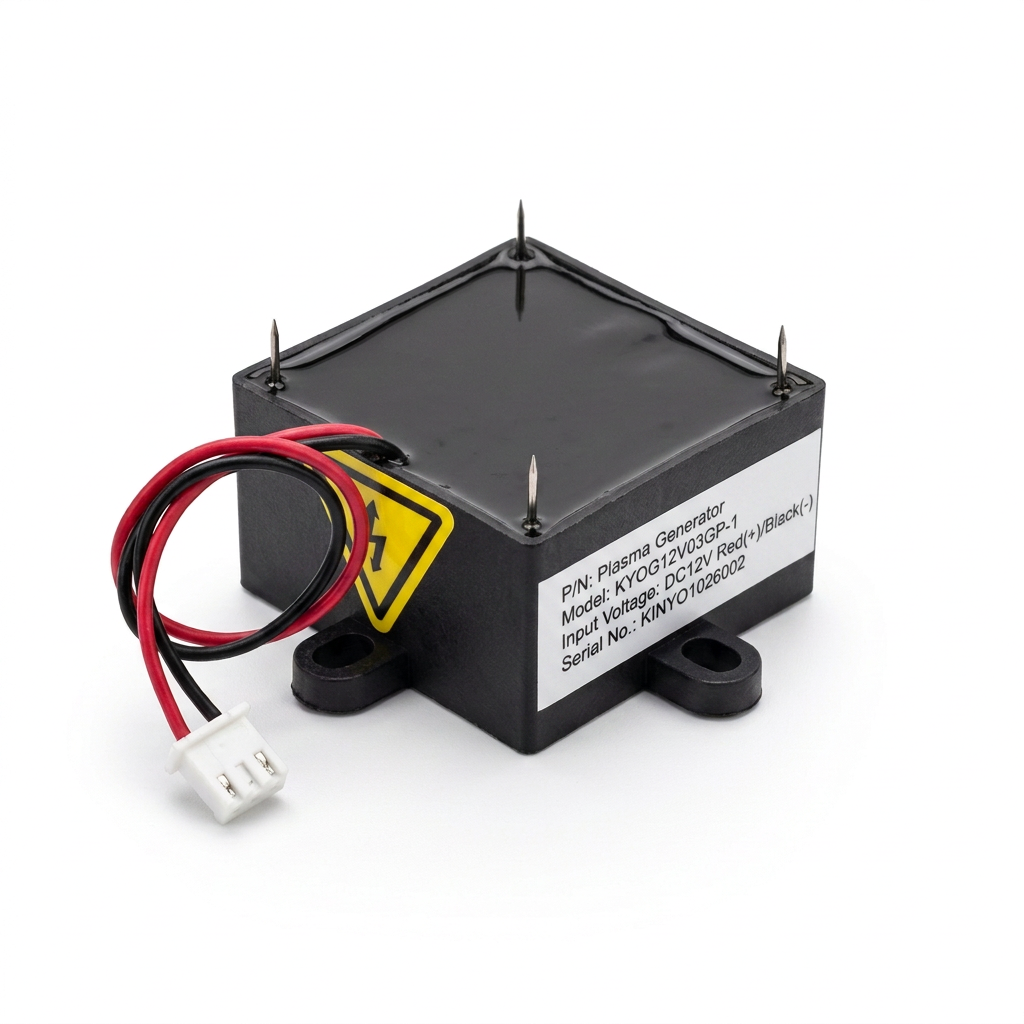

Lead Wire / Connector	Red (+)/Black (-) with 2-pin white connector
Compliance & Standards	Designed to meet CE, RoHS standards (Reports available upon request)

OEM / ODM Engineering Solutions

Custom lead wire lengths, harness connectors, mounting brackets, input voltages (5V/12V/24V), and private labeling available for global HVAC and appliance manufacturers.
