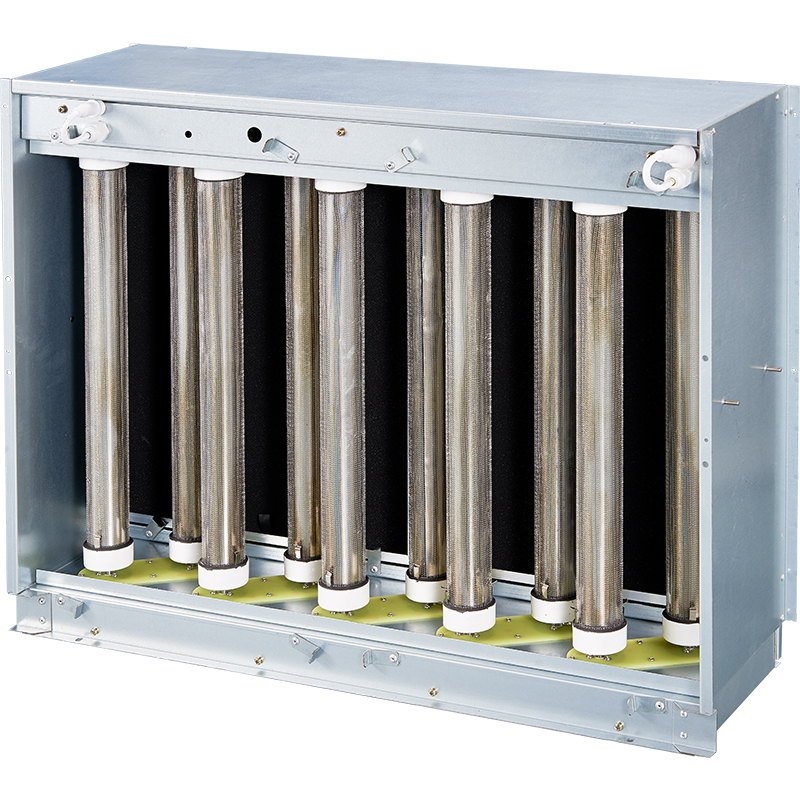

Plasma Ion Deodorization for Industrial Ventilation Ducts: This bipolar ionizer module uses a high energy ion tube to neutralize odor-causing compounds like H2S, ammonia and amines directly inside HVAC ducts, wind cabinets or wind pipe deodorization sections, with automatic airflow-sensing operation.
Performance & Verification
Parameter
Result
Sterilization Rate
>95%
Hydrogen Sulfide (H2S) Removal
>90%
Ammonia (NH3) Removal
>90%
Air Flow Induction Speed
0.5 m/s
Engineering Highlights

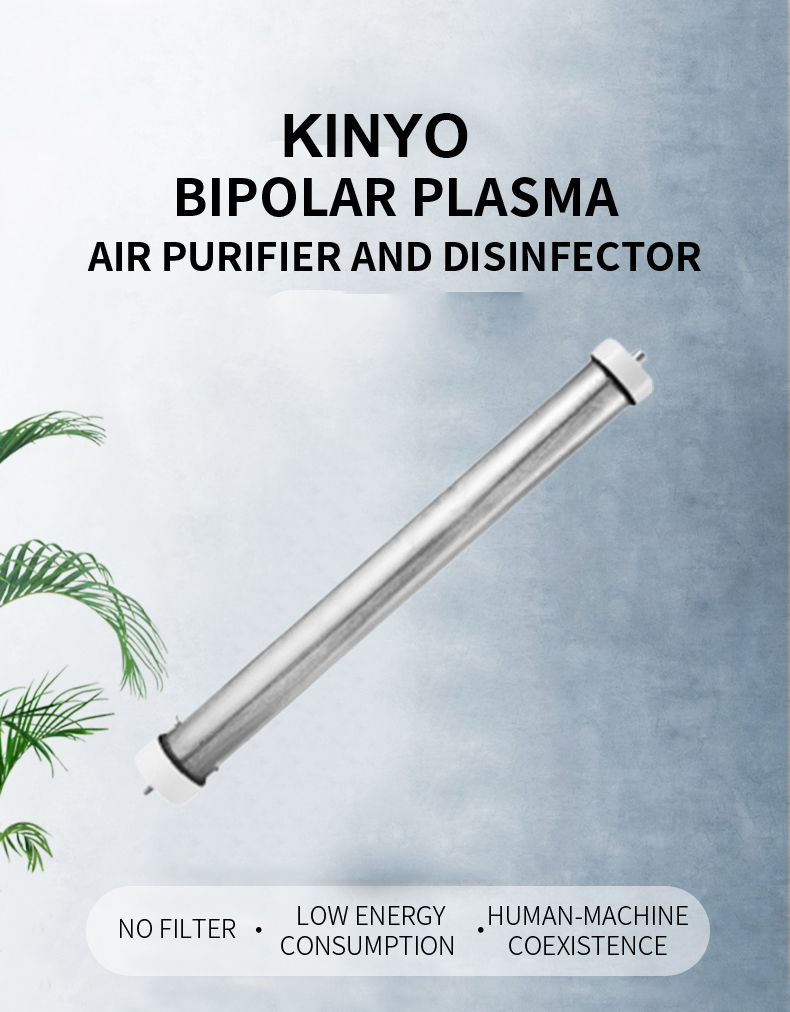

01. High Energy Ion Tube Technology
Generates bipolar ions that break down CH3NH2, (CH3)3N, NH3, diamines, H2S, (CH3)2S and other odor compounds.
02. Modular Splice-Together Design
Multiple modules combine for easy installation in wind cabinets and duct deodorization sections of any size.
03. Automatic Airflow Sensing
Activates automatically when airflow is detected and enters standby mode when idle, saving energy.
04. Non-Consumable, No Secondary Pollution
Ozone control technology keeps output clean with no filters to replace and no secondary pollution.
Technical Data & Specifications
Model
KY-ADS-M568K2
Type
Air Ionizer
Air Volume
1700 m3/h
Electrical
220V/110V, 40W, 7KV High Voltage Output
Dimensions
371x568x285mm
Weight
15kg
Applications
HVAC FCU AHU MAU DuctsIndustrial Central VentilationWind Cabinet Deodorization SectionsIndustrial Odor Control
OEM / ODM Custom Solutions
Custom air volume, input voltage, logo and carton packaging available for HVAC equipment brands.
