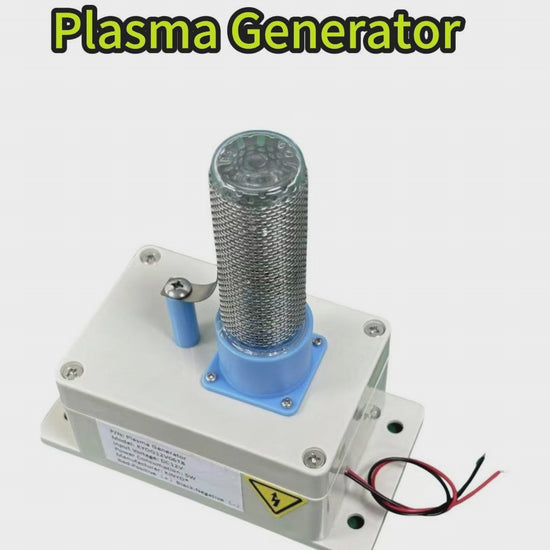

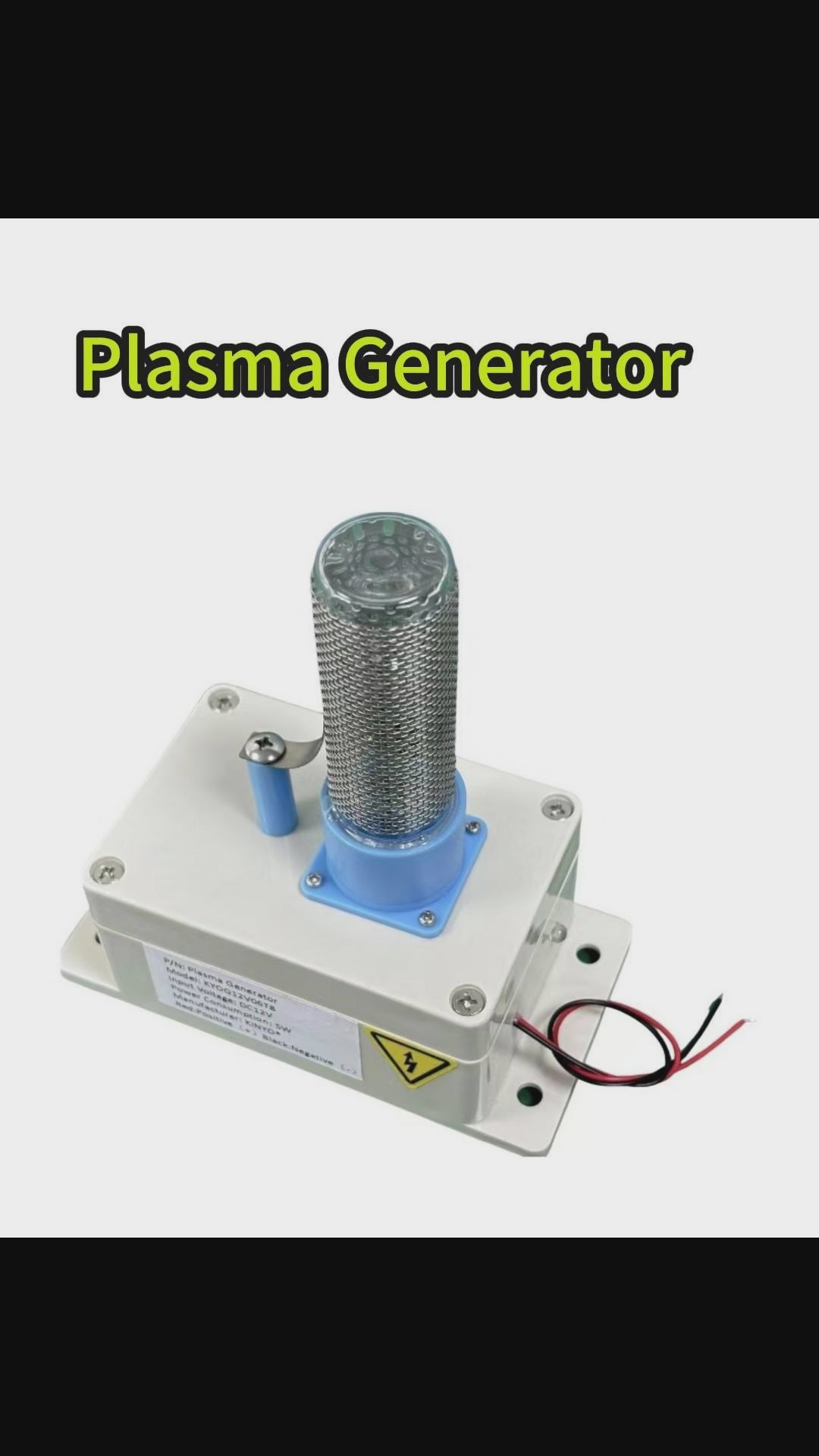

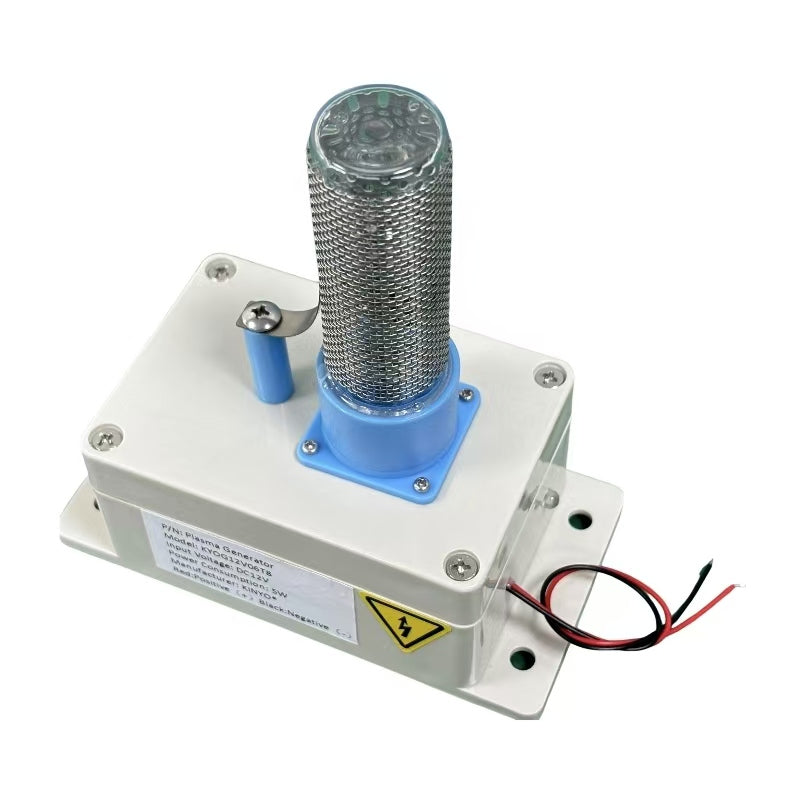

Bipolar Plasma Ion Tube for HVAC & Ventilation Integration: The KYOG12V06T8 is a single-tube cold plasma bipolar ionizer for integration into HVAC and ventilation equipment. It releases bipolar ions to neutralize odors and airborne contaminants, runs on a standard 12VDC supply (24VDC optional) at 5W, with optional RS485 wired control, and serves equipment with airflow up to 1,000 m³/h covering areas of 40–50 m².
Performance & Verification
Parameter
Result
Notes
Sterilization Rate
> 99%
Third-Party Laboratory Tested
Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.
Engineering Highlights
01. Single-Tube Cold Plasma Design
One 32 mm × 87 mm bipolar plasma ion tube with adjustable intensity, sized for direct integration into HVAC and ventilation equipment.
02. RS485 Wired Control (Optional)
Optional RS485 wired control support allows the ion tube to be managed from the host equipment's control system.
03. 17,000-Hour Stated Service Life
Composite housing and stainless steel filter materials support long service intervals in continuous HVAC operation.
04. Compact 115×60×35mm Housing
500 g compact form factor with 40–50 m² application area fits duct and equipment integration without major modifications.
Technical Data & Specifications
Model
KYOG12V06T8
Technology Type
Single-Tube Cold Plasma Bipolar Ionizer
Ion Tube
1 pc, 32 mm diameter × 87 mm length (adjustable intensity)
Input Voltage
12VDC (Standard) / 24VDC (Optional)
Power Consumption
5 Watts
Airflow Capacity
1,000 m³/h (approx. 580 CFM)
Application Area
40–50 m²
Service Life
17,000 Hours (stated)
Control
RS485 Wired (Optional)
Materials
Composite materials & stainless steel filter
Dimensions
115 × 60 × 35 mm
Weight
500 g
Applications
HVAC SystemsVentilation EquipmentAir Handling Units (AHU)Fan Coil Units (FCU)Air Purifier OEM Integration
OEM / ODM Custom Solutions
HVAC manufacturers and air purifier brands: contact us to discuss custom tube sizes, input voltages, intensity configurations, and private labeling for the KYOG12V06T8.
