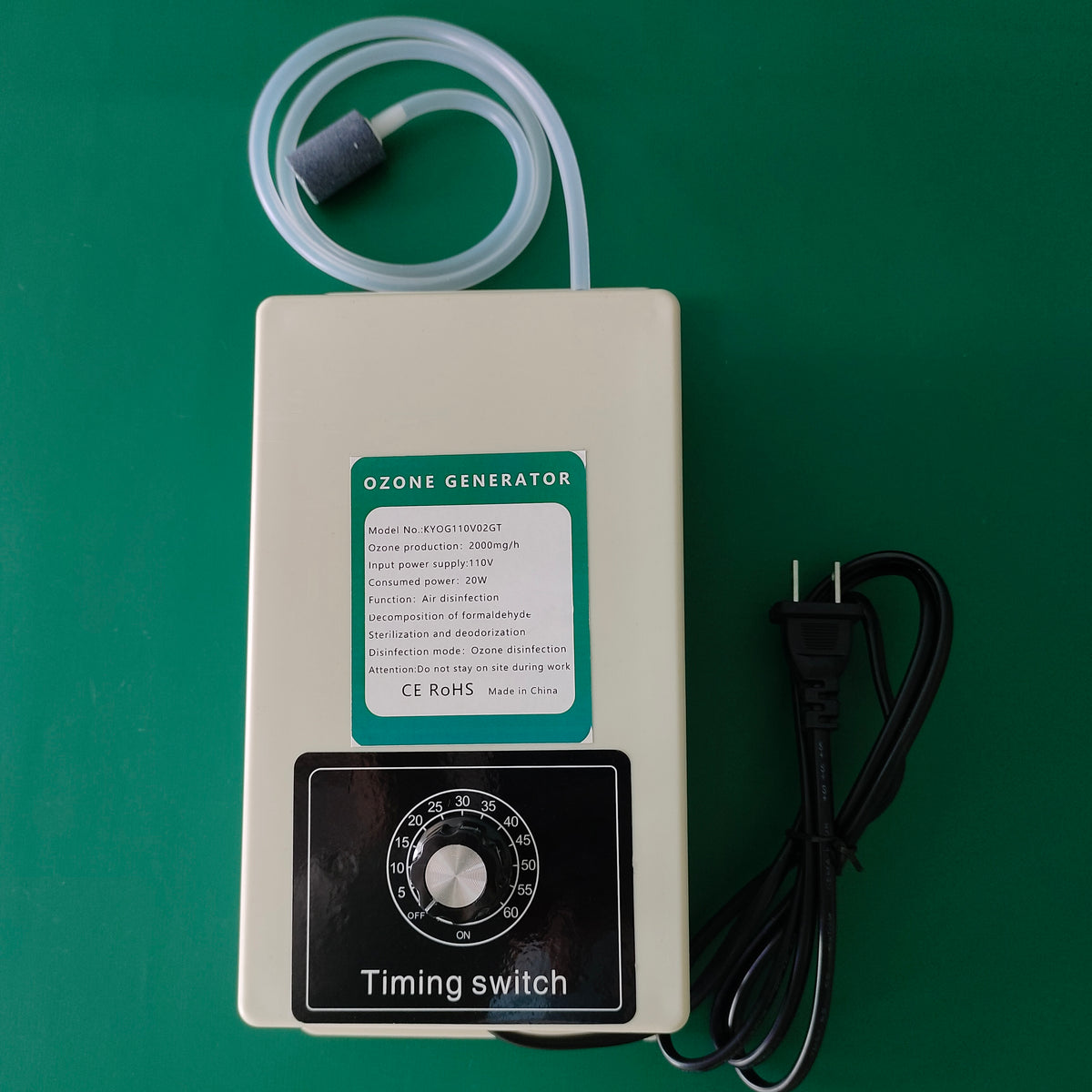

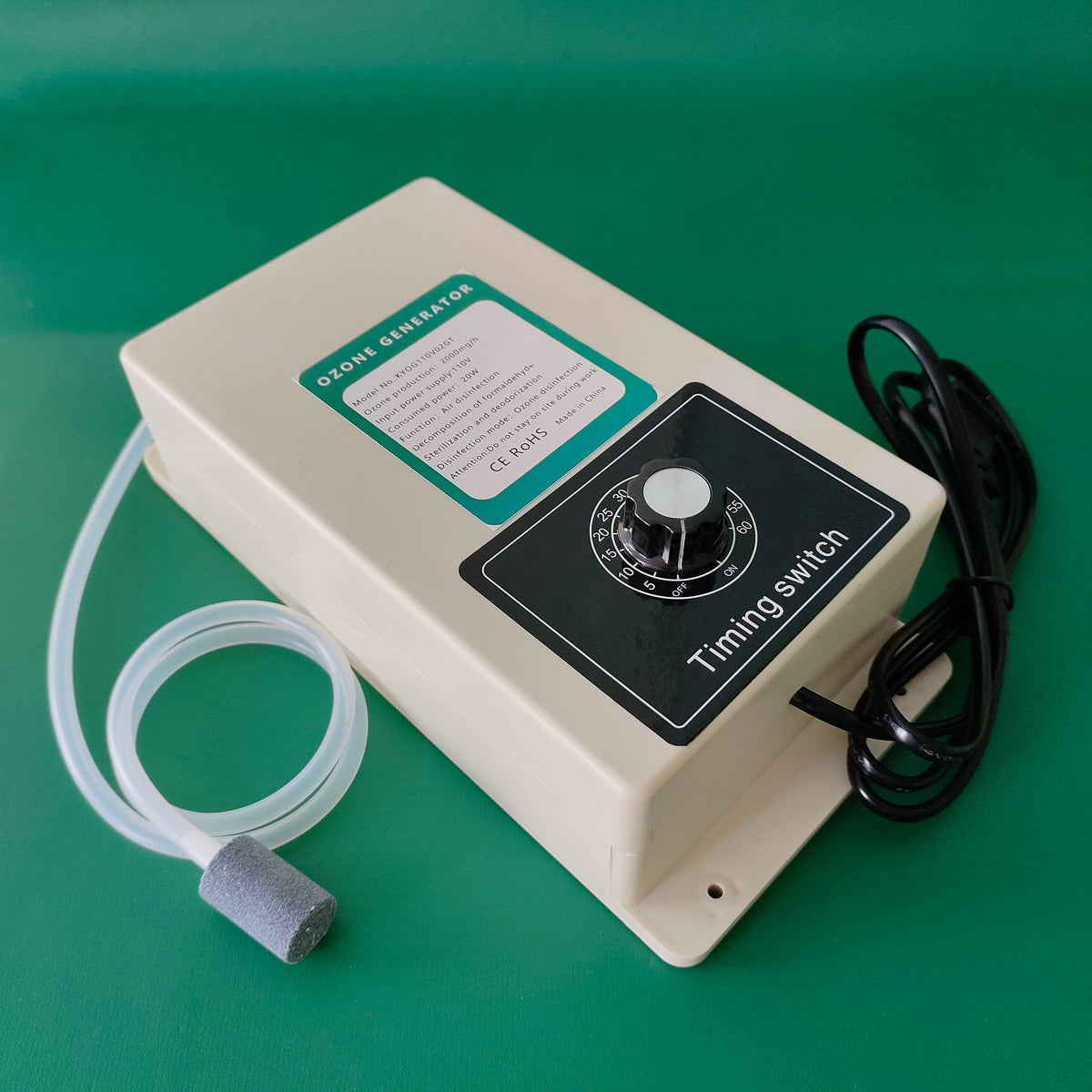

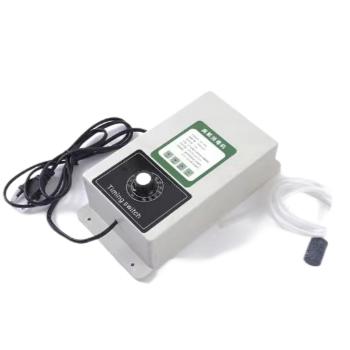

Ozone Generator for Water & Food Sanitization / KYOG-2GT / 2000mg/h 60-Min Timer

$14.21 USD

Sale Sold out

Shipping calculated at checkout.

Input Voltage 110VAC 220VAC

2000 mg/h

High Ozone Output Yield

>99%

sterilization

60-Min Timer

Mechanical Countdown

240 × 120 mm

Dual-Mount Enclosure

Integrated Ozonation System with Precision Mechanical Countdown Timing

Commercial kitchens, food processing workshops, and healthcare facilities require an integrated ozonation appliance with precise cycle timing and built-in positive-pressure aeration without requiring external air compressors. The KINYO KYOG-2GT series combines a heavy-duty 2000 mg/h quartz corona discharge tube, a dedicated diaphragm air pump, a 3.1–3.5 kV solid-state power driver, and a 60-minute mechanical countdown timer inside a rugged 1.0 kg ABS housing. Designed for drinking water purification, fruit and vegetable pesticide breakdown, meat preservation, and room air deodorization, it delivers plug-and-play active oxygen with automatic timed shutoff.

Performance & Verification

Parameter	Result / Rating	Verification / Notes
Ozone Generation Output Yield	2000 mg/h (2 g/h) at rated internal positive airflow	Internal Laboratory Test
Microbial Sterilization Efficacy	≥ 99.0% bacterial and viral reduction in aqueous wash	Internal Laboratory Test
Pesticide Residue Decomposition	≥ 92.0% chemical pesticide surface degradation	Internal Laboratory Test
High-Voltage Output Drive	3.1 kV – 3.5 kV AC resonant corona drive	Internal Laboratory Test
Electrical Power Consumption	20 W rated operating power draw	Internal Laboratory Test

Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on water volume, immersion depth, room airflow and organic load. Test reports are available upon request.

Engineering Highlights

01. 60-Minute Precision Rotary Timer

Integrated mechanical countdown timer allows exact operational programming from 5 to 60 minutes, featuring auto-shutoff and continuous-ON mode to prevent unattended over-run.

02. High-Efficiency Quartz Corona Tube

Industrial quartz dielectric tube delivers continuous 2000 mg/h ozone output with high thermal resistance and stable corona discharge, outlasting planar ceramic electrodes.

03. Internal Diaphragm Air Delivery Pump

Built-in positive-pressure air pump feeds fresh air through the quartz tube directly to the 5mm barbed discharge nozzle without requiring external compressors or gas canisters.

04. Robust Dual-Mount ABS Enclosure

Engineered 240 × 120 × 70 mm flame-retardant chassis with base mounting flanges for secure wall-mounting or flexible tabletop use in commercial kitchens and processing areas.

Technical Data & Specifications

Product Model	KYOG-2GT (KYOG110V2GT / KYOG220V2GT)
Product Category	Multifunctional Ozone Generator with Integrated Timer & Air Pump
Ozone Generation Method	Dielectric Barrier Discharge (DBD) Quartz Tube
Rated Ozone Output Yield	2000 mg/h (2 g/h)
Timer Control	0–60 Minute Mechanical Countdown Rotary Timer with Hold / Constant-ON
Operating Input Voltage	AC 110V (60Hz) / AC 220V (50Hz) (Selectable Options)
Output High Voltage	3.1 kV – 3.5 kV AC Resonant Corona Drive
Rated Power Consumption	20 W
Chassis Dimensions	240 × 120 × 70 mm (Net Weight 1.0 kg)
Air Outlet Diameter	5 mm Barbed Hose Fitting
Duty Cycle Recommendation	≤ 60 minutes continuous per cycle (Automatic shutoff via mechanical timer)
Enclosure Material	Molded Flame-Retardant ABS with Passive Cooling Ventilation
Included Accessories	Food-grade silicone aeration delivery hose, porous mineral bubble diffuser stone
Applicable Standards	CE Certified, RoHS Compliant Design

Applications

Fruit & Vegetable Pesticide Removal Meat & Seafood Sanitization Drinking Water Purification Aquarium & Hydroponics Ozonation Baby Supplies & Utensil Disinfection Clothes Washing Deodorization Commercial Dishwashers & Dryers Room Air Deodorization & Formaldehyde Degradation

Custom OEM/ODM Engineering & Multi-Voltage Integration

Shenzhen KINYO Technology Co., Ltd. provides comprehensive OEM/ODM manufacturing for commercial and domestic sanitization brands. We support customized ozone yields (1000 mg/h to 3000 mg/h), dual-voltage configurations (110VAC/220VAC), customized panel labeling, branded timer dials, bespoke housing colors, and private-label retail packaging. Contact our engineering team for technical datasheets and sample evaluation.

View full details
