Bipolar Plasma Ionizer Module for HVAC Duct | KY-ADS-M568K1 | 3400 m³/h, H2S/NH3 >90%

Bipolar Plasma Ionizer Module for HVAC Duct | KY-ADS-M568K1 | 3400 m³/h, H2S/NH3 >90%

$872.10 USD
$872.10 USD
Sale Sold out
Shipping calculated at checkout.
Air volume
Input voltage
3,400 m³/h
Rated Airflow
> 90%
H2S & NH3 Removal
> 95%
Sterilization Rate
70W
Low Power Draw

Heavy-Duty Bipolar Plasma Ion Deodorization for Industrial Central Ventilation & HVAC Ducts: The KINYO KY-ADS-M568K1 is a high-volume modular plasma ionizer engineered for integration into AHU, MAU, FCU, and industrial ventilation ductwork. Delivering 3,400 m³/h treatment capacity with an internal 7KV high-voltage ion tube core, it actively oxidizes hydrogen sulfide (H2S), ammonia (NH3), and volatile organic odor compounds into benign molecular components without recurring consumables or secondary chemical pollution.

Performance & Verification
Parameter Result Notes
Hydrogen Sulfide (H2S) Removal > 90% Third-Party Tested
Ammonia (NH3) Removal > 90% Third-Party Tested
Sterilization Rate > 95% Third-Party Tested
Airflow Induction Start Speed 0.5 m/s Internal Laboratory Test

Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.

Engineering Highlights

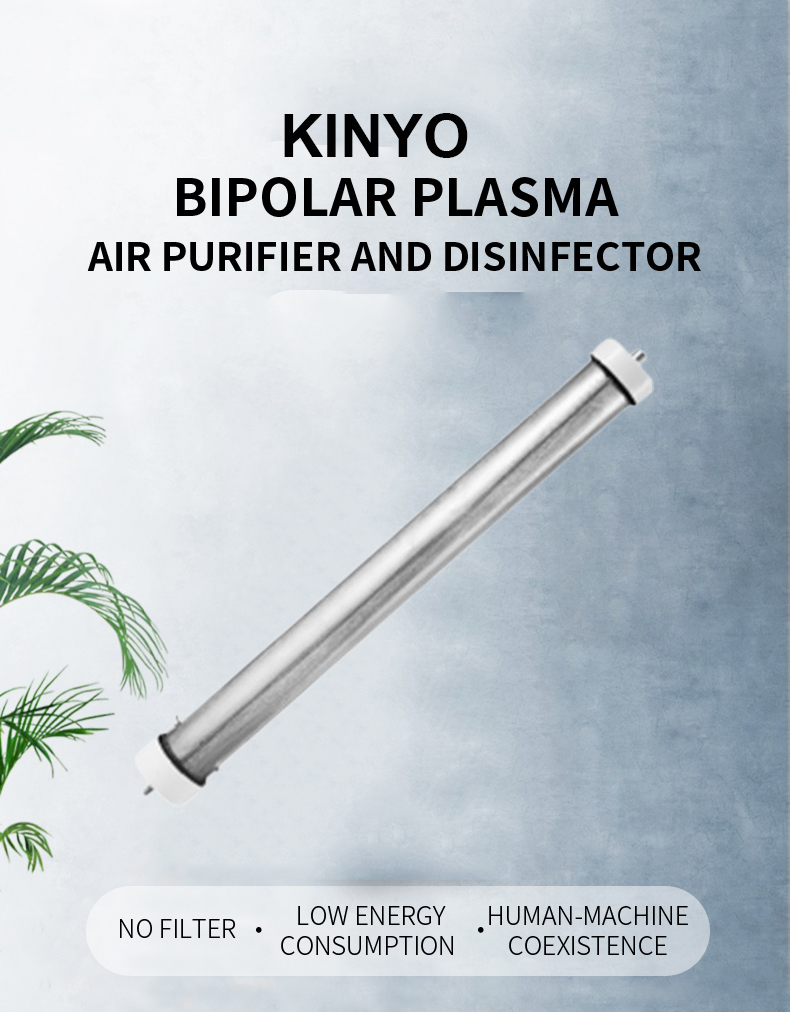

01. High-Voltage 7KV Ion Tube Core
High-density positive and negative ion cluster generation rapidly neutralizes volatile sulfur compounds, amine gases, and biological pathogens.
02. Splicable Modular Architecture
Heavy-duty 720 × 568 mm chassis easily splices into wind cabinets or expands across large AHU duct sections for high-volume commercial airflow.
03. Smart Airflow Sensing Induction
Built-in 0.5 m/s airflow sensor automatically activates the module when ventilation runs and enters standby when airflow stops.
04. Non-Consumable & Low Operating Cost
Operates at only 70W total consumption with washable, non-disposable components, eliminating replacement filter costs and secondary waste.
Technical Data & Specifications
Model KY-ADS-M568K1
Architecture Modular Duct-Mounted / Wind Cabinet Plasma Ionizer
Rated Airflow Capacity 3,400 m³/h (Modular Splicing Expandable)
Input Voltage & Power 110V / 220VAC, 50/60Hz, 70W
High Voltage Output 7 KV
Dimensions (L × W × H) 720 × 568 × 285 mm
Net Weight 20 kg
Control Method Airflow Sensing Induction (0.5 m/s threshold)
Enclosure Material Corrosion-Resistant Industrial Metal Chassis
Compliance & Standards Designed to meet CE, RoHS standards (Reports available upon request)
Applications
Industrial HVAC Systems AHU & MAU Ducts FCU Ventilation Sections Wind Cabinet Deodorization Sewage & Waste Facilities Commercial Restrooms & Kitchens
OEM / ODM Engineering Solutions
Modular splicing configurations, custom airflow engineering, custom supply voltages (110V/220V/380V), BMS protocol integration, and private labeling available for HVAC OEMs.
