Fresh Air Purifier for Schools & Clinics / KY-APN-1000 / 1000m³/h & Washable ESP Filter

$2,185.00 USD

Sale Sold out

Shipping calculated at checkout.

Service type Custom OEM/ODM Solution

> 90%

Deodorization

> 99%

Sterilization

> 94%

Formaldehyde Removal

> 99%

PM2.5 Removal

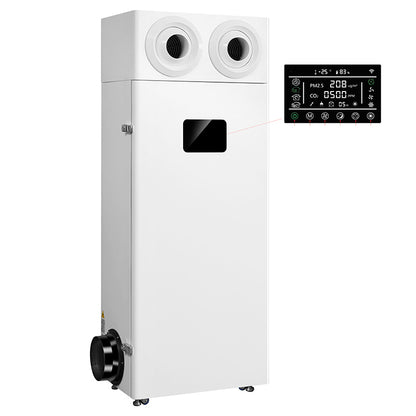

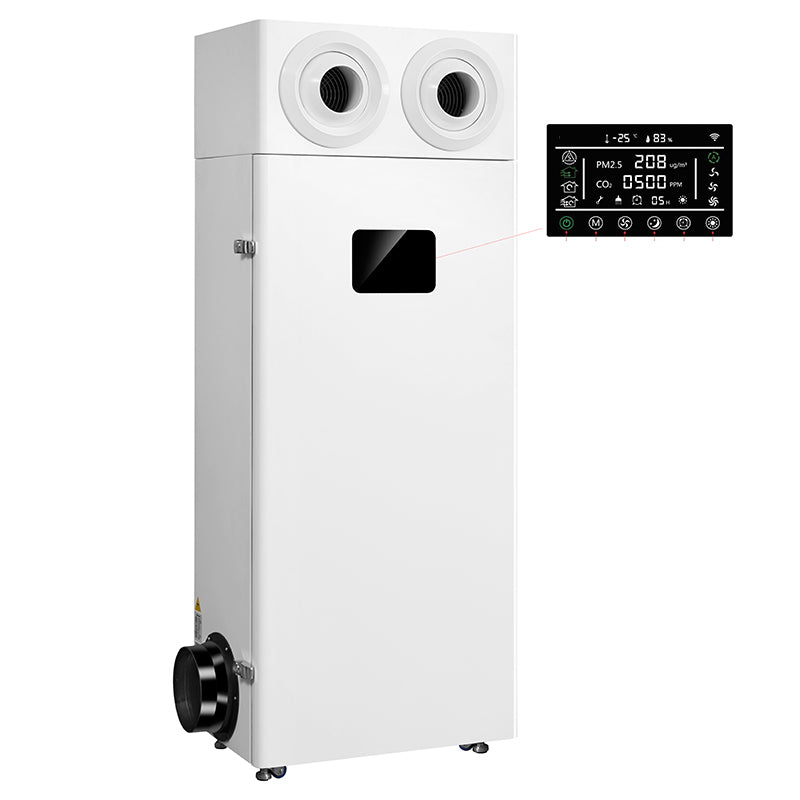

High-Capacity Commercial Fresh Air Purifier: Engineered for school classrooms, medical clinics, hospital wards, commercial conference halls, and public facilities (coverage up to 100㎡), the KY-APN-1000 delivers 1000m³/h (588 CFM) high-velocity ventilation with a 15-meter air throw. Featuring dual-cycle operation (external wall duct fresh air intake and internal circulation sterilization), it integrates washable two-stage electrostatic precipitation (ESP), catalytic plasma net, UV-C germicidal irradiation, and negative ion generation. It removes PM2.5, airborne pathogens, and foul odors without recurring filter replacement costs. Backed by KINYO-CHINA OEM/ODM industrial manufacturing.

Performance & Verification

Parameter	Result / Accuracy	Notes
Maximum Recirculation Airflow	1000 m³/h (588 CFM)	Factory Calibrated High-Volume Blower
Air Delivery Throw Distance	15 m	Dual Aerodynamic Jet Nozzle Diffusers
Microbial & Viral Sterilization Rate	> 99.99%	Third-Party Laboratory Test
PM2.5 Particulate Removal	> 99.98%	Third-Party Laboratory Test
Formaldehyde Removal Efficiency	> 94%	Third-Party Laboratory Test
Deodorization / Odor Removal Rate	> 90%	Third-Party Laboratory Test
Operating Acoustic Noise	< 38 dB(A) (Quiet) / < 42 dB(A)	Factory Anechoic Chamber Test Rating
Negative Anion Emission Density	≥ 2.0 × 10⁶ pcs/cm³	High-Energy Ion Generator Output
Ozone Emission Boundary	< 0.003 mg/m³	Ozone-Free Safe (Man-Machine Coexistence)

Note: Performance values represent factory engineering tests. Actual results may vary depending on room geometry, duct configurations, ventilation load, and environmental pollutant concentrations. Official third-party test reports available upon request.

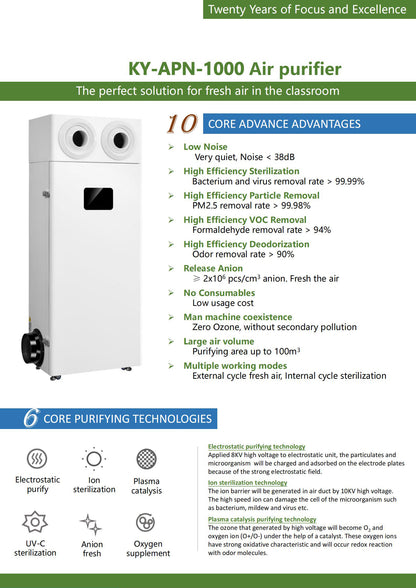

Engineering Highlights

01. Dual-Cycle Fresh Air Ventilation

Supports External Fresh Air Intake (via rear wall duct), Internal Circulation Sterilization, and Hybrid Mixed Mode, effectively regulating indoor CO2 concentrations below 1000 ppm.

02. Washable Non-Consumable ESP Technology

Features two-stage slide-out electrostatic collector cells (8KV charging / 10KV ion barrier) and pre-filter that wash clean with water, eliminating costly recurring filter replacements.

03. 15-Meter Long-Throw Jet Diffusion

Dual circular jet nozzles propel clean air up to 15 meters across large classrooms, medical wards, or commercial halls, ensuring rapid and uniform air exchange throughout the space.

04. Integrated Environmental Sensing & Control

Front color touchscreen monitors real-time PM2.5, CO2, temperature, and humidity, with remote control, quiet sleep mode, timer, and optional 1500W auxiliary PTC heating.

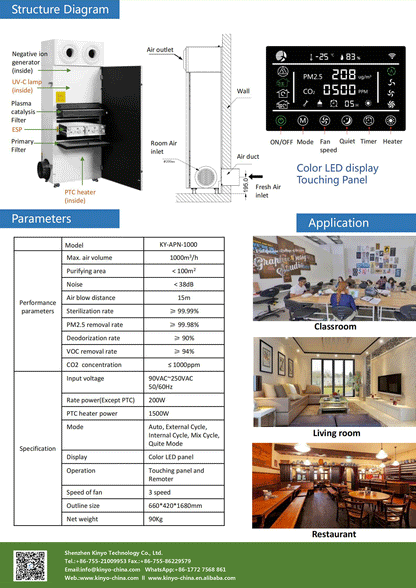

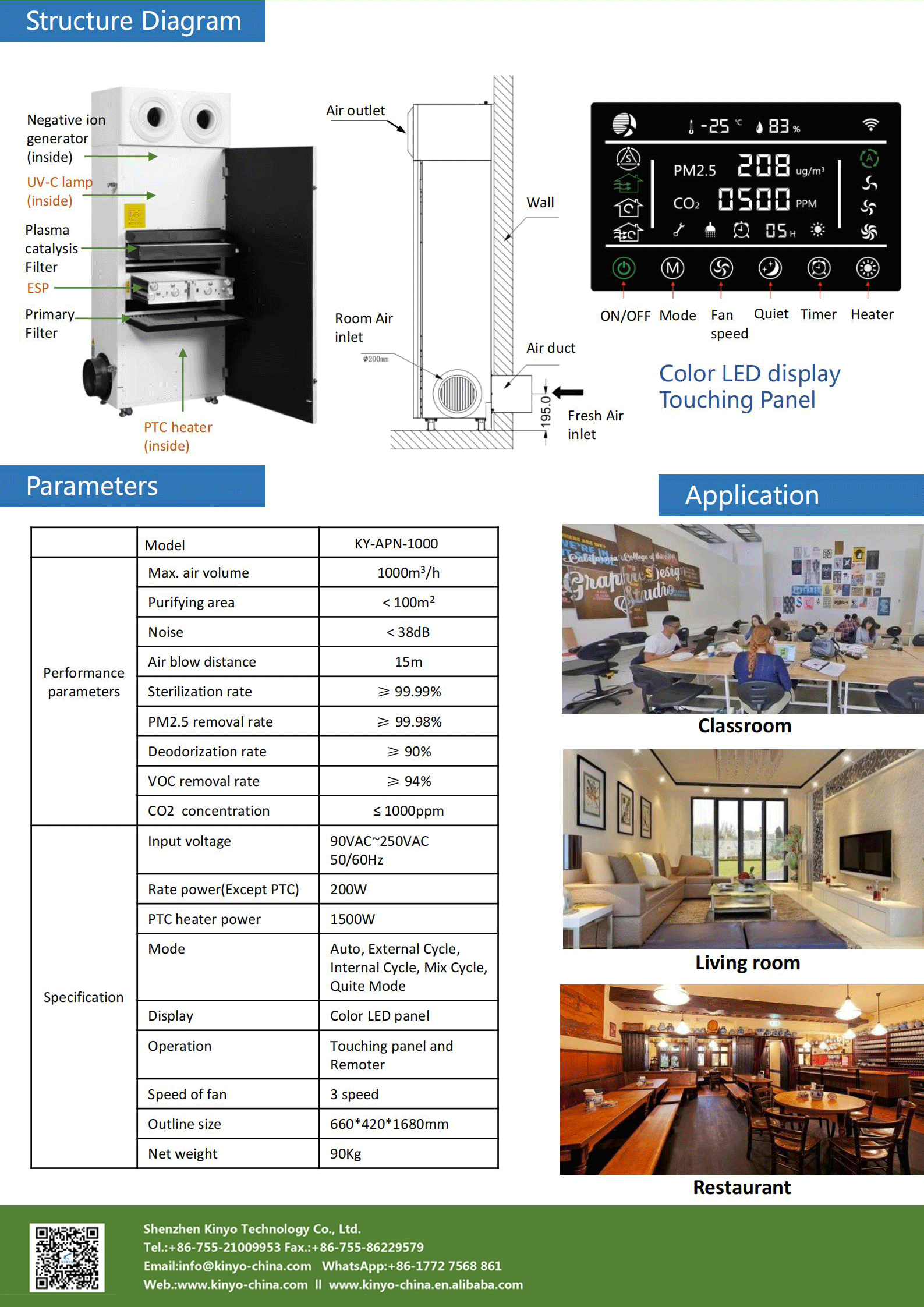

Technical Data & Specifications

Model Number	KY-APN-1000
Product Category	Commercial Fresh Air Purifier
Purification Architecture	Primary Pre-filter + Dual ESP Cells + Plasma Catalytic Filter + UV-C Lamp + Negative Ion Generator
Maximum Air Volume	1000 m³/h (588 CFM)
Air Supply Throw Distance	15 m
Effective Purifying Area	Up to 100 ㎡
Rated Motor Power	200 W (Base unit)
Auxiliary PTC Heating Power	1500 W (Optional)
Operating Voltage	220VAC / 50Hz (Customizable for export grids)
Operating Acoustic Noise	< 38 dB(A) (Quiet Mode) / < 42 dB(A)
Ventilation Duct Interface	Φ 200 mm Rear/Side Duct Connection Collar
Sensors & Display	Color LED Touchscreen (PM2.5, CO2, Temp, Humidity, Filter Status)
Control Options	Touch Panel, Remote Controller, Auto, Quiet Mode, Timer
Chassis Dimensions	660 × 420 × 1680 mm
Net Weight	90.0 kg
Compliance & Standards	Designed to meet CE, RoHS
Quality Grade / Origin	Qualified Product \| Made in China

Applications

School Classrooms & Kindergartens Hospital Wards & Medical Clinics Commercial Conference Halls Veterinary Hospitals & Pet Facilities Auditoriums & Government Offices Negative Pressure Isolation Spaces

OEM / ODM Commercial Fresh Air Purifier Engineering

Developing ventilation or sterilization projects for educational, healthcare, or commercial buildings? KINYO-CHINA offers full OEM/ODM engineering capabilities: customized duct collar sizes, international voltage adaptations, custom chassis branding, and auxiliary PTC heating integrations.
