For residential and light commercial applications, the KYOG04G provides safe and continuous air purification to the entire home or building. It uses patented brush-style bipolar ionization technology that produces positively and negatively charged ions that reduce and neutralize harmful pollutants and odors. The unit installs in just minutes and requires minimal maintenance.
Specifications:

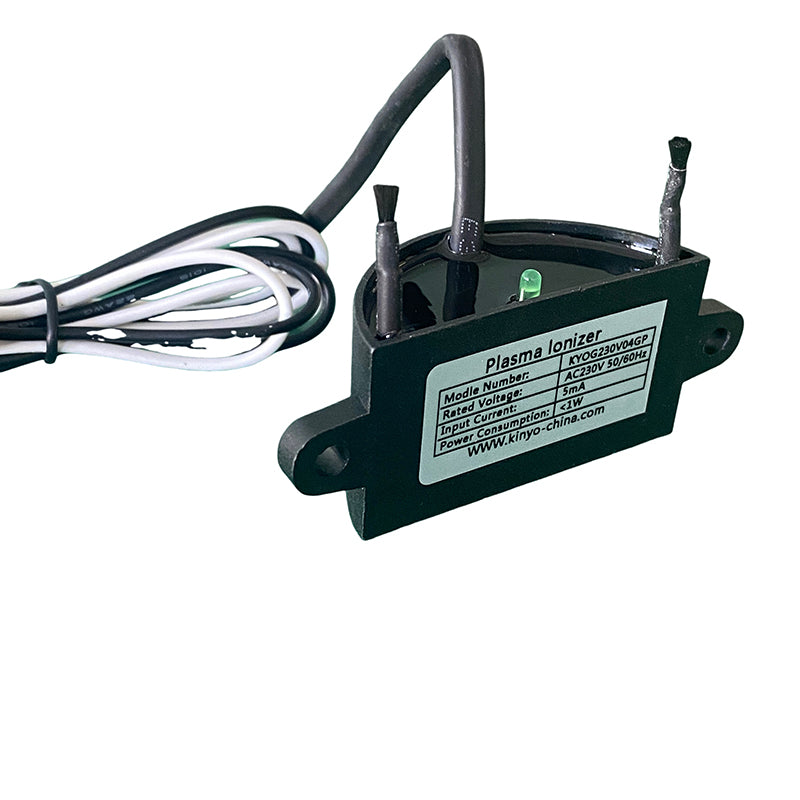

Input voltage: AC 230V 50/60Hz
Ion quantity: >15million pcs/cm³(Air outlet 10cm)
Maximum output power: < 1W
High voltage output: -4±0.5KV DC
Output current: <5mA
Ozone residual: Below 0.05ppm(Air outlet 10cm)

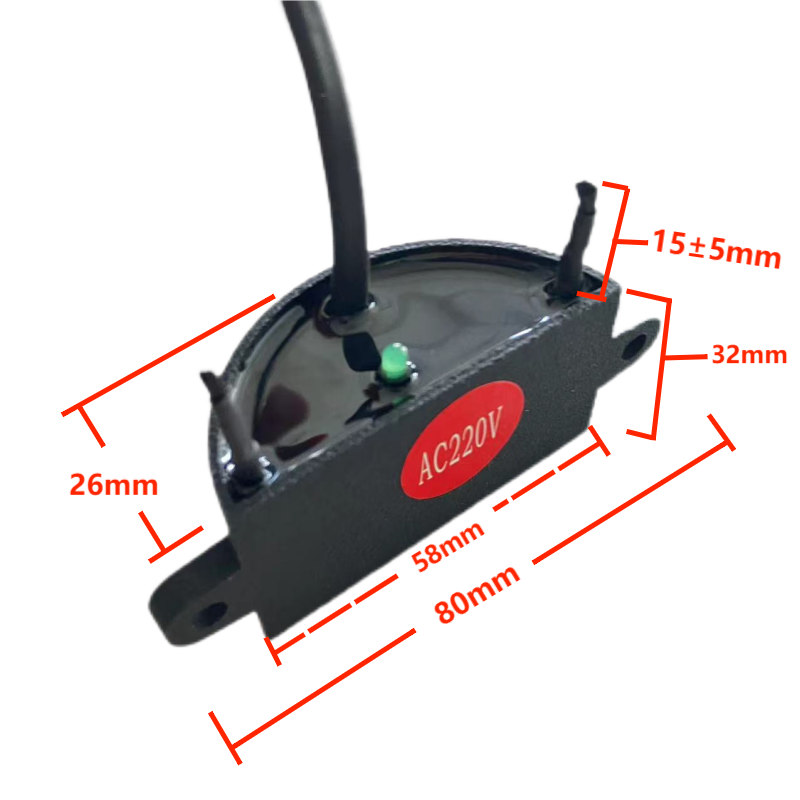

Product size: 80*25*32mm
Weight: 90g
Function: Remove Smoke Dust, Bacterial Killing, Smelly Odor Remove, Formaldehyde Remove
Features and Benefits:
1. Advanced KINYO Bipolar Ionization Systems use a nature based process to improve indoor air quality by creating hundreds of millions of positively and negatively charged ions.
2. These ions seek to attach themselves to airborne pollutants such as particulates, pathogens and VOC’s, removing them from the air;
3. Safe and effective. Meet UL2998, ETL, CE, CB, EMC, RoHS, REACH. Ozone free and does not create harmful bi-products, low noise and long life.
4. No filters to replace or future costs;
5. Easy to install, small size and require very little maintenance. Using unique high-voltage voltage and current double closed-loop control technology to ensure consistent purification efficiency and effective control of ozone concentration.
6. Output the fault.
Support customize:
1. Dry connect function;
2. Faulty feedback protection signal;
3. Input voltage;
4. Design your shell;
5. Custom brand your logo and color carton box;
Notice:
Dear customers,

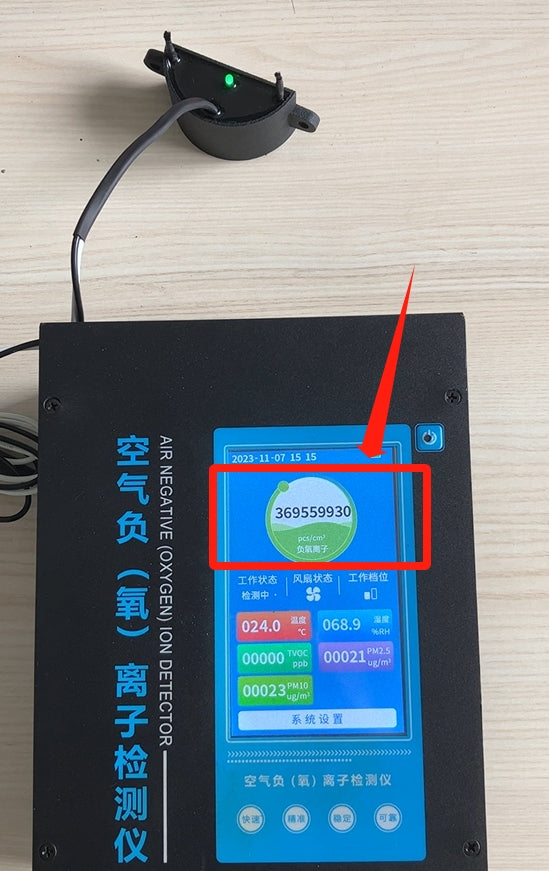

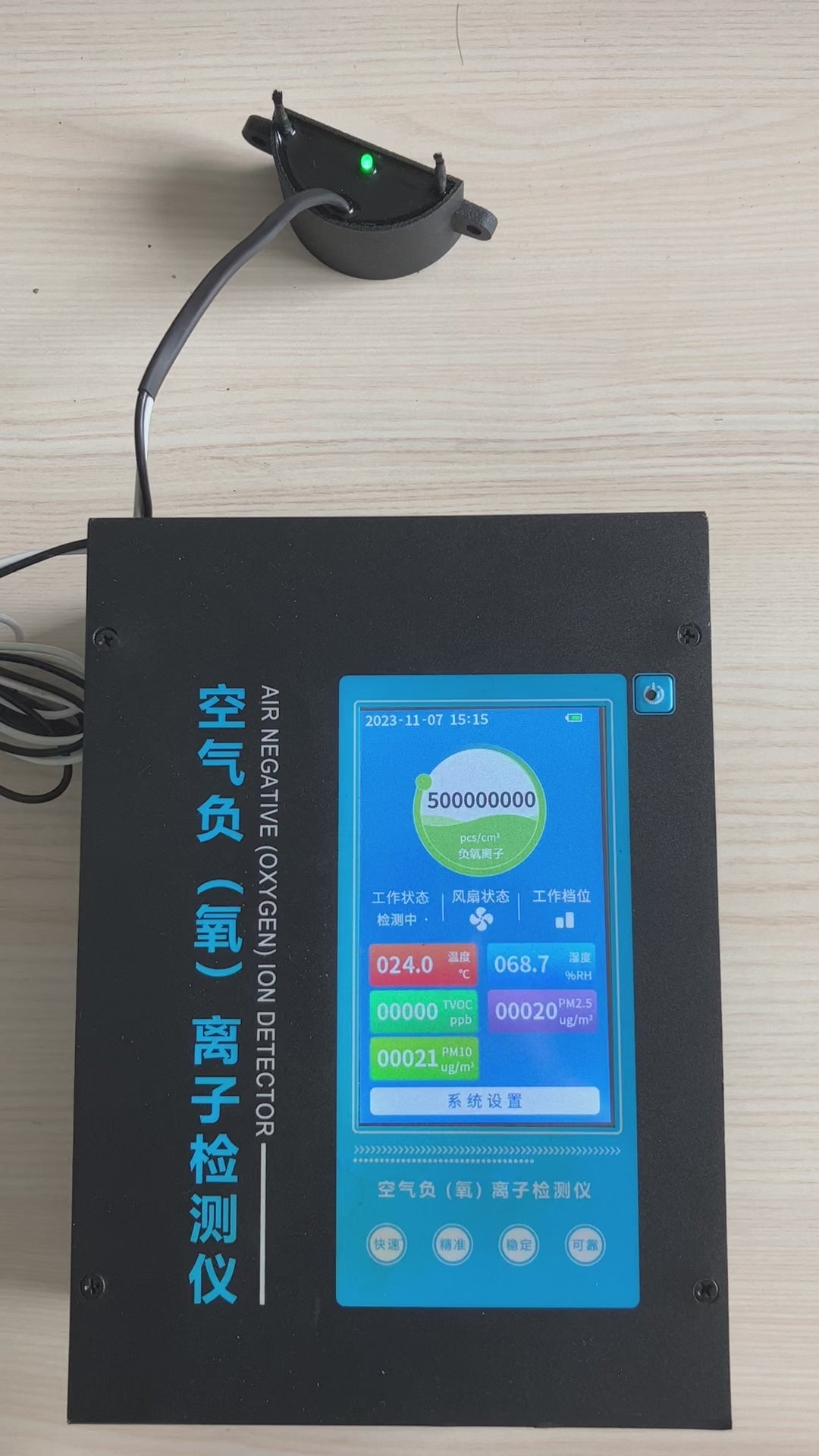

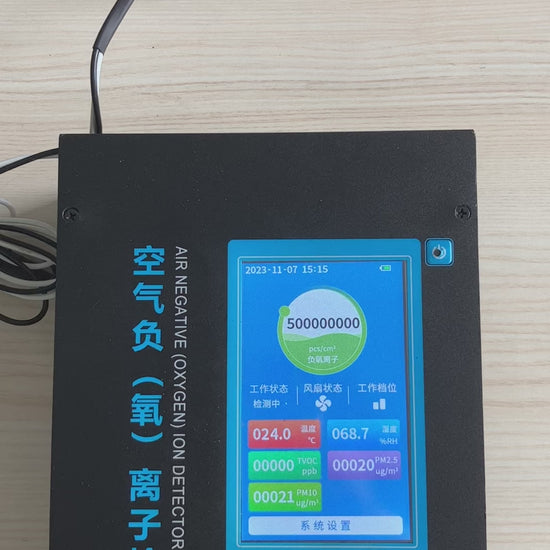

The relevant test data and instrument shown only for reference. The specific test result is related to the test distance and the precision of the instrument.
Before using, please read the following terms carefully.
1. Pay attention to the needle/brush tip have static electricity, although the current is small, do not touch it when working. Recommendation: Before cleaning must stop working more than 15 mins.
2. Make sure that the tip of the needle/brush is upright and there are no objects touching it around.
3. When it's in operation, ensure the tip of the needle/brush maintains a distance of at least 30cm from other objects.
4. Use it together with fan, and the continuous working time should not exceed 24 hours.
5. Use environment: temperature not exceed-10 to 55℃, humidity < 80%；
6. The data is for reference only, the actual object shall prevail;
