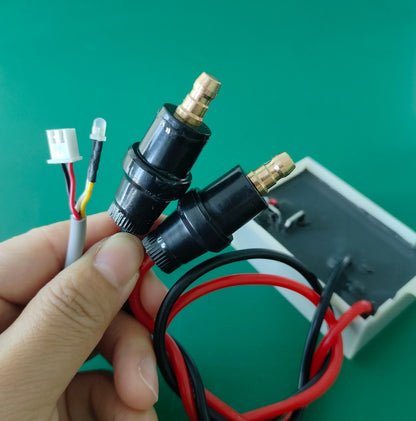

  • Handheld detail view of the KYOG12V03 power supply interface connectors, featuring dual black cylindrical high-voltage plug-in connectors with stepped brass contact pins, a white 3-pin input socket, and an integrated status LED indicator diode on the diagnostic feedback line.

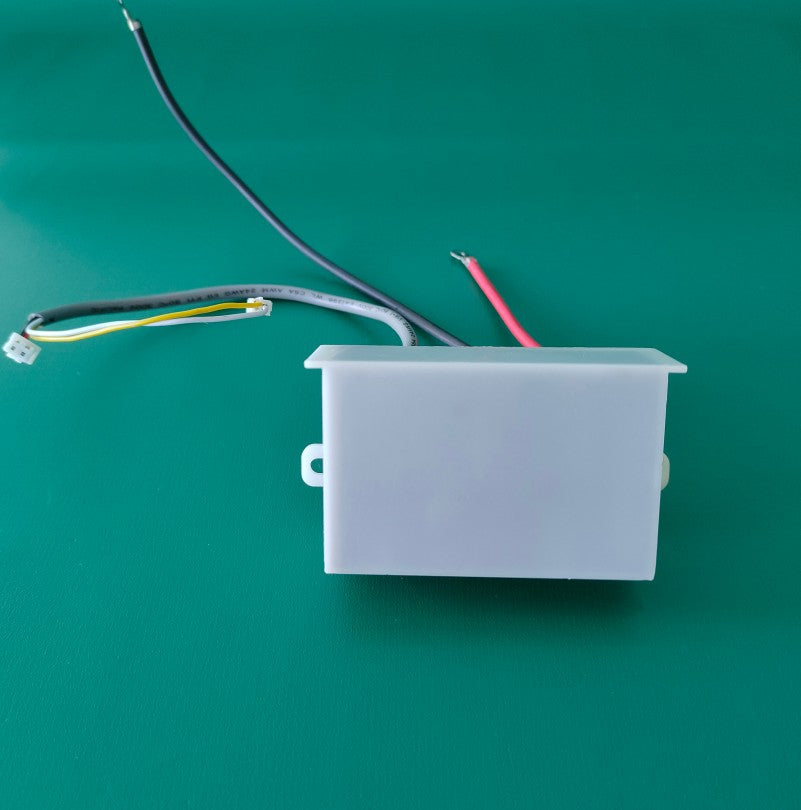

  • Side elevation profile photograph of the compact KYOG12V03 high-voltage power supply enclosure on a green surface, illustrating the streamlined rectangular housing design, dual chassis screw mounting ears, and neatly routed primary DC input and high-voltage output wiring leads.

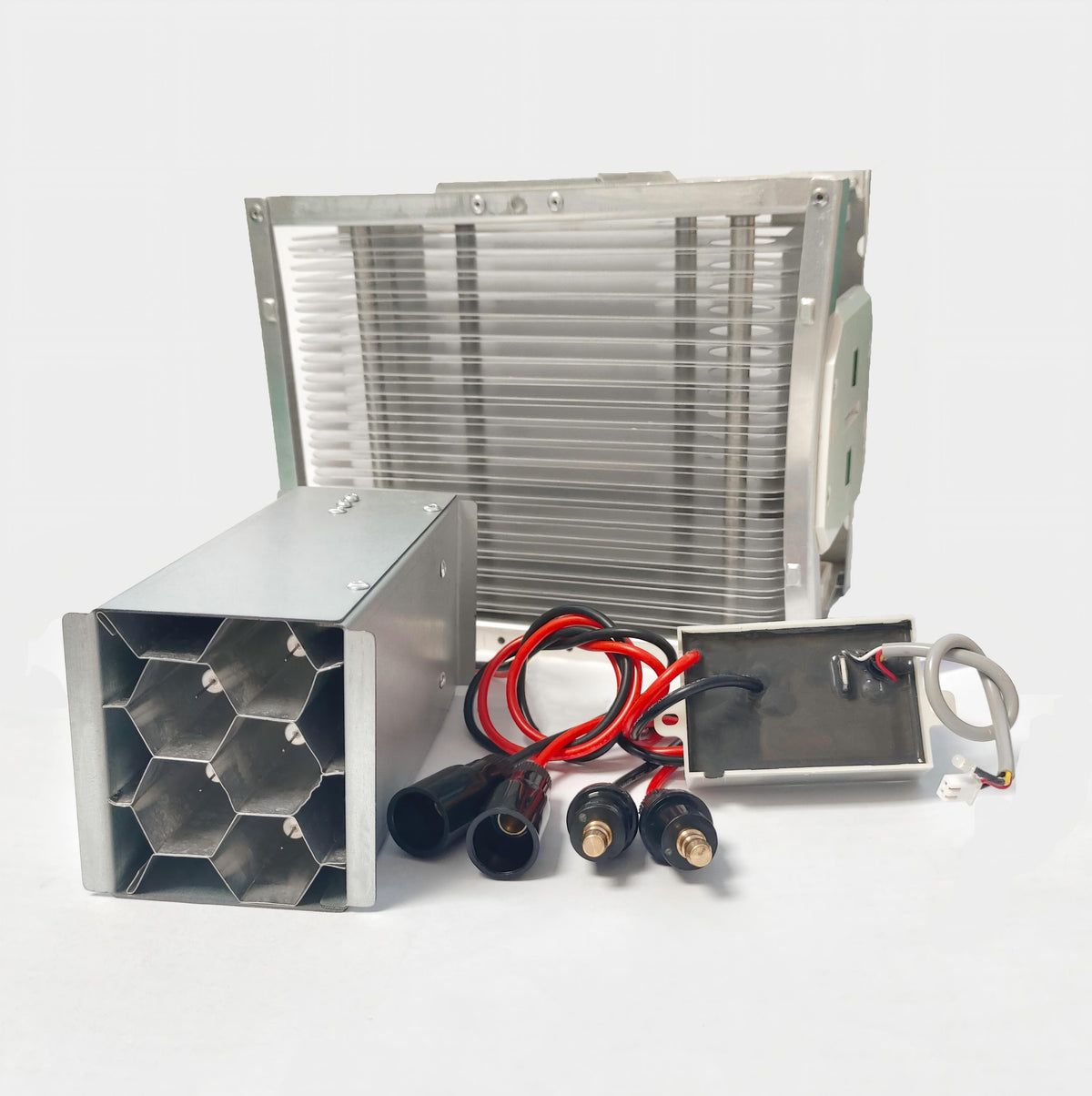

  • Complete ESP air purification system component display on a white background, featuring the KYOG12V03 2W high-voltage power supply connected via industrial quick-disconnect plugs to a compact honeycomb electrostatic collector cell in the foreground and a multi-plate aluminum ESP filter in the background.
  • Detailed engineering schematic titled Figure 2 KINYO Single-Output High Voltage Power Supply Wiring Diagram, illustrating AC transformer step-down power input, +5~7kVDC high-voltage output connections to an ESP cell, grounding, 0V/5V fault status alarm interface, and full wire color code legend.
1 7

High Voltage Power Supply for ESP Purifiers / KYOG12V03 / 12VDC & 2W 200μA Output

High Voltage Power Supply for ESP Purifiers / KYOG12V03 / 12VDC & 2W 200μA Output

$19.79 USD
$19.79 USD
Sale Sold out
Shipping calculated at checkout.
Input voltage
Max Rated Power 2 Watts Ultra-Low Consumption
Output Voltage ±6 kV / ±10 kV High-Voltage DC Rails
Max Current 200 μA Microamp Precision
Airflow Scope < 200 m³/h Compact ESP Units

Precision 2W High-Voltage Power Pack for Compact Electrostatic Air Purifiers

The KYOG12V03 high-voltage power supply delivers reliable 2W high-voltage DC output (configurable for ±6 kVDC or ±10 kVDC) specifically engineered for compact electrostatic precipitator (ESP) air purifiers, fan coil units, and localized ventilation equipment handling airflow up to 200 m³/h. Utilizing advanced voltage and current double closed-loop control technology, it stabilizes electrostatic field intensity while mitigating excess ozone generation. Potted in moisture-proof black epoxy resin inside a flame-retardant chassis with integrated mounting tabs, it features comprehensive safety protections including output short-circuit, under-voltage, 2–5s continuous arc-pull protection, and remote 0V/5V diagnostic fault feedback.

Performance & Verification (P&V)

Parameter Result / Accuracy Notes
High-Voltage Output Amplitude ±6.0 kVDC / ±10.0 kVDC (±5%) Internal Laboratory Test
Continuous Arc-Pull Protection 2.0 ~ 5.0 Seconds Cutoff Latency Internal Laboratory Test
Maximum Output Current 200 μA Maximum (0.2 mA) Internal Laboratory Test
Maximum Rated Power Consumption 2.0 Watts Continuous Full Load Internal Laboratory Test
Fault Status Signal Feedback Normal: 0 VDC / Fault: 5 VDC Internal Laboratory Test
Double Closed-Loop Control Stability Voltage & Current Closed-Loop Circuit Control Internal Laboratory Test
Continuous Operational Lifespan ≥ 30,000 Hours Continuous Industrial Duty Internal Laboratory Test
Safety & Regulatory Compliance Designed to meet CE & RoHS Directives Internal Laboratory Test

Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.

01. Patented Double Closed-Loop Control

Continuous voltage and current monitoring stabilizes ionization efficiency across changing airflow rates and particle loading, keeping ozone byproducts minimal.

02. Active Arc & Short-Circuit Protection

Intelligent protection circuit trips within 2–5 seconds during sustained arcing or dielectric flashovers, preventing damage to the power pack and collector plates.

03. Remote Fault Feedback (0V/5V)

Low-voltage diagnostic interface provides 0VDC during normal operation and 5VDC upon fault activation for seamless integration with master control boards and BMS.

04. Compact Potted Industrial Form Factor

Fully encapsulated with vacuum-poured epoxy resin inside a flame-retardant casing with mounting tabs, ensuring high dielectric strength and humidity resistance.

Technical Data & Specifications

Model Number KYOG12V03
Product Category High-Voltage Power Supply for Electrostatic Precipitators
Circuit Control Topology Voltage and Current Double Closed-Loop Control
Operating Input Voltage 12 VDC Nominal (5VDC / 24VDC Optional / Customizable)
High-Voltage DC Output Options +6 kVDC, +10 kVDC, -6 kVDC, -10 kVDC (Configurable)
Maximum Rated Power 2 Watts Maximum
Maximum Output Current 200 μA (0.2 mA)
Applicable Airflow Capacity < 200 m³/h (Compact Air Purifiers & Small ESP Modules)
Diagnostic Fault Feedback Normal Operation: 0 VDC / Electrical Fault: 5 VDC
Safety Protections Output Short-Circuit, Under-Voltage, 2–5s Arc-Pull Protection
Encapsulation & Enclosure Flame-Retardant ABS Plastic Housing (Potted Black Epoxy Resin)
Mounting Configuration Chassis Screw Mounting (Dual Integrated Side Mounting Tabs)
Electrical Interfacing Multi-Pin DC Input/Signal Harness & Insulated HV Leads with Terminals
Compliance Standards Designed to meet CE and RoHS standards

Recommended Applications & Equipment Integration

Compact Electrostatic Air Purifiers (< 200 m³/h) HVAC Fan Coil Unit (FCU) In-Duct Air Cleaners Desktop & Portable Electrostatic Filter Modules Vehicle Cabin & Elevator Air Cleaning Systems OEM Electronic Air Cleaner Appliance Manufacturing

Custom OEM & ODM High-Voltage Manufacturing

Backed by 20+ years of high-voltage R&D and commercial manufacturing experience, KINYO offers extensive OEM/ODM customization for compact ESP power supplies. Custom engineering options include tailored input voltages (5VDC, 12VDC, 24VDC), specific high-voltage outputs (positive or negative polarity up to 12kV), custom wire lengths and termination connectors (quick-disconnect plugs, ring lugs), modified mounting flanges, private label branding, and customized fault detection thresholds.
