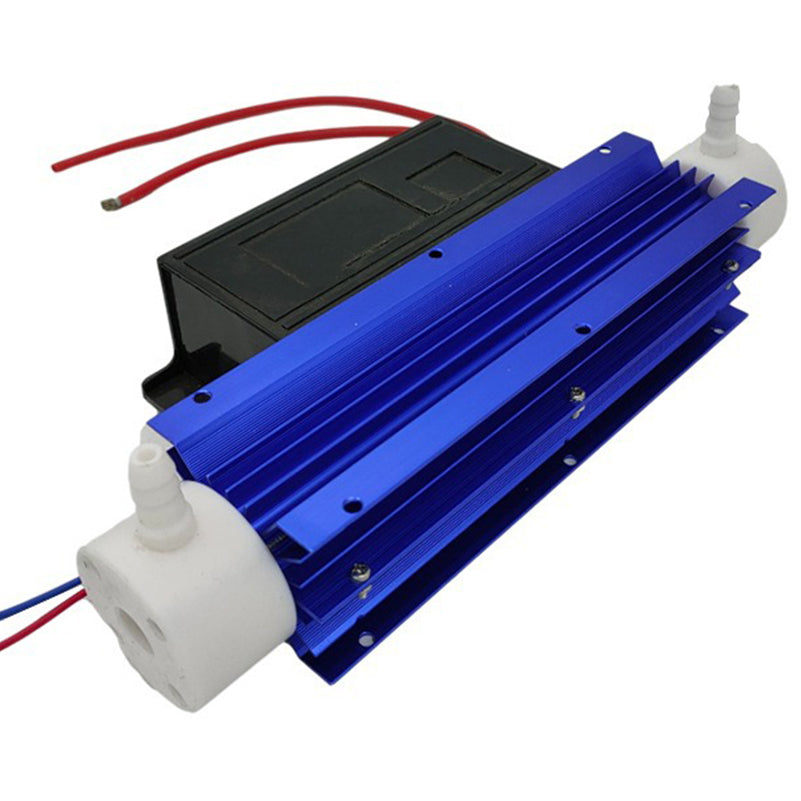

• Isometric three-quarter studio photograph of KINYO-CHINA KYOG-10GC 10g/h ozone generator module showing the blue anodized aluminum finned ceramic discharge tube with white PTFE end manifolds and matched black high-voltage power supply pack engineered for commercial water treatment and aquaculture sanitization.

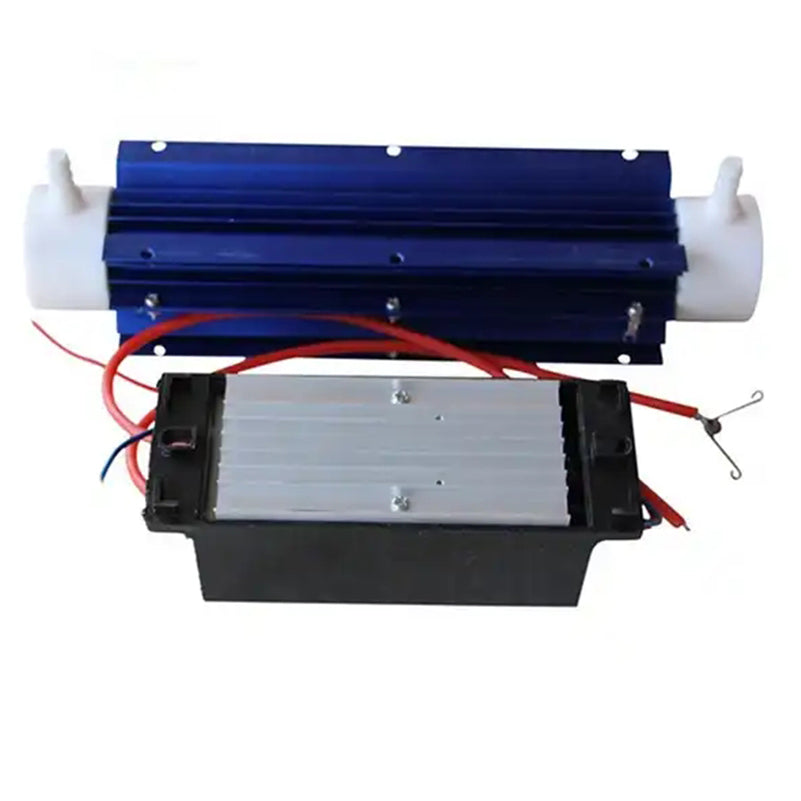

  • Top view studio product shot of KINYO-CHINA KYOG-10GC ceramic tube ozone generator displaying the 260mm blue finned heat sink tube, potted power supply module with aluminum base heat sink, and red high-voltage leads for industrial ozonation equipment.

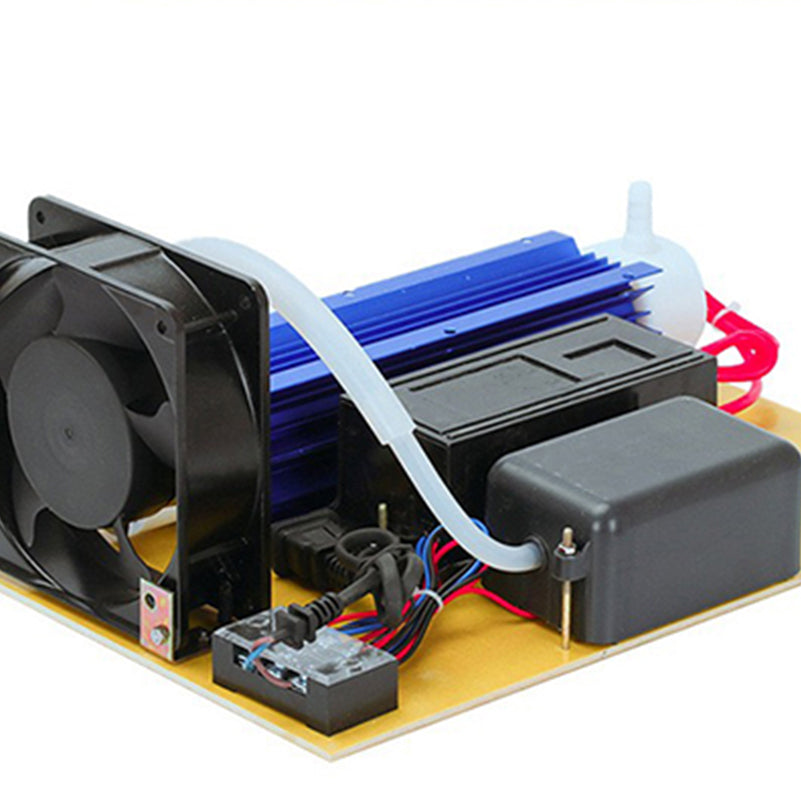

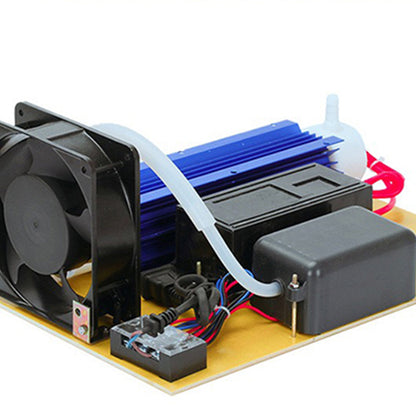

  • Angled perspective view of KINYO-CHINA KYOG-10GC ozone generator module showcasing the blue air-cooled discharge tube, black 100W electronic driver pack, red silicone connection leads, and barbed air inlet nozzle.
  • Top-down perspective photograph of KINYO-CHINA KYOG-10GC 10g/h ozone generator module showing the extruded aluminum blue heat sink housing and compact power pack for commercial water treatment and aquaculture sanitization.

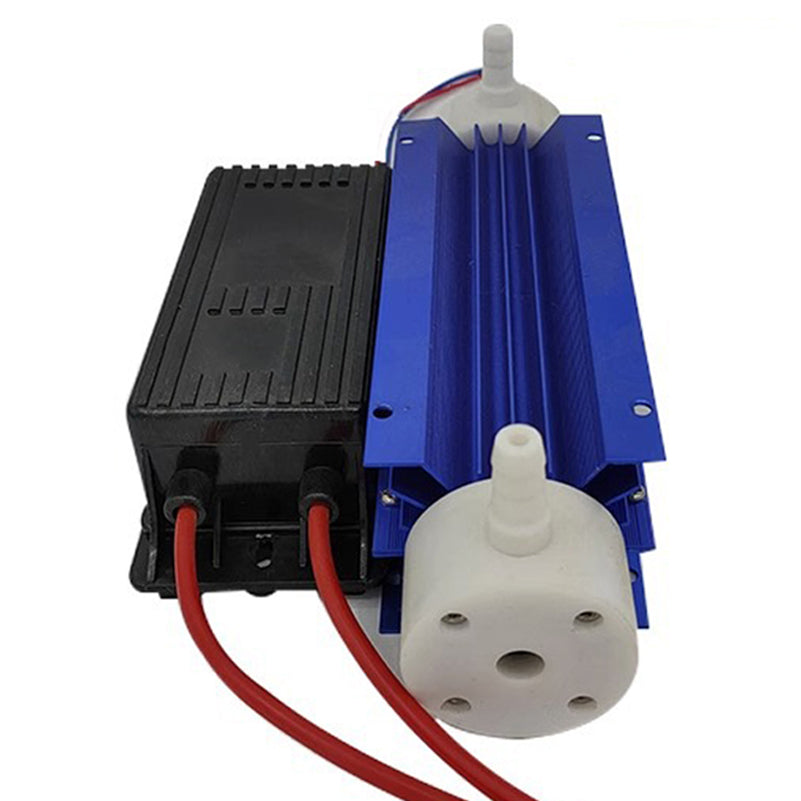

  • Profile perspective studio photograph of KINYO-CHINA KYOG-10GC 10g/h ozone generator ceramic tube showing the longitudinal blue anodized cooling fins, mounting screw holes, and dual barbed hose connectors.

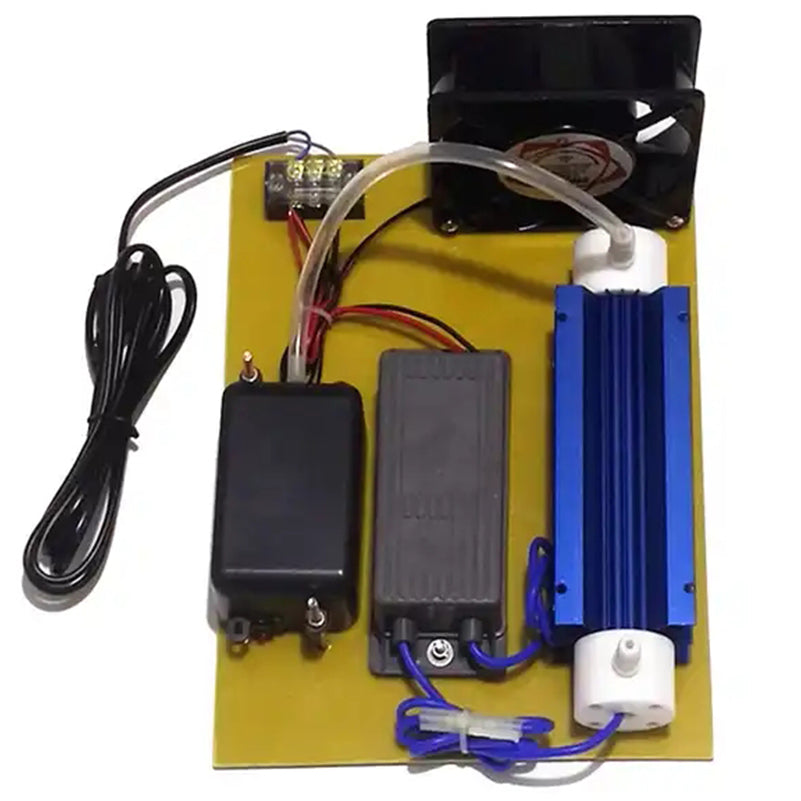

  • Top-down studio photograph of complete KINYO-CHINA KYOG-10GC OEM ozone generator assembly demonstrating the coordinated layout of cooling fan, power pack, diaphragm air pump, and blue ceramic discharge tube for equipment manufacturers.
1 6

Tube Ozone Generator for Water Treatment / KYOG-10GC / 10g/h 100W Air-Cooled

Tube Ozone Generator for Water Treatment / KYOG-10GC / 10g/h 100W Air-Cooled

$37.11 USD
$59.00 USD $37.11 USD
Sale Sold out
Shipping calculated at checkout.
Input voltage
10 g/h
High Ozone Output Yield
>99%
sterilization
260 × 67 mm
Aluminum Heat Sink Tube
Air-Cooled DBD
Ceramic Dielectric Core

Heavy-Duty Ozonation for Commercial Water Purification & Aquaculture Sanitization

Industrial and municipal water treatment, commercial swimming pools, aquaculture, and wastewater oxidation require rugged, high-concentration ozone generation without the fragility or high water-chilling costs of liquid-cooled systems. The KINYO KYOG-10GC module pairs an air-cooled ceramic dielectric barrier discharge tube with a matching 100W solid-state high-frequency driver. Featuring deep blue anodized aluminum heat sink fins and dual barbed gas nozzles, it delivers 10 g/h continuous reactive oxygen for rapid pathogen disinfection, algae eradication, and organic pollutant oxidation.

Performance & Verification

Parameter Result / Rating Verification / Notes
Ozone Generation Output Yield 10 g/h (10,000 mg/h with dry air or oxygen feed) Internal Laboratory Test
Pathogen Disinfection Efficacy ≥ 99.0% bacterial and viral inactivation in water (Pending Confirmation)
Aquatic Algae Elimination Rate ≥ 90.0% algae eradication in recirculating water (Pending Confirmation)
Water Treatment Circulation Reference 20 L/min standard circulation flow reference (10°C water) Internal Laboratory Test
Electrical Power Consumption 100 W rated operating power draw Internal Laboratory Test
Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on water flow rate, water temperature, dissolved oxygen levels and installation environment. Test reports are available upon request.

Engineering Highlights

01. Air-Cooled Ceramic DBD Dielectric Tube
High-purity ceramic dielectric core with external extruded aluminum heat sink fins provides efficient passive heat dissipation without requiring complicated liquid chilling loops.
02. Precision 100W High-Voltage Resonant Driver
High-frequency resonant electronic driver delivers stable, continuous corona discharge with low component thermal rise and high electrical-to-ozone energy conversion efficiency.
03. Heavy-Duty Dual Barbed Gas Ports
Corrosion-resistant PTFE end manifolds feature barbed hose fittings for secure, leak-free connection to silicone or fluoropolymer delivery tubing in humid environments.
04. Modular Skid & Bench Integration
Separated tube and power supply design allows versatile mounting inside industrial water treatment skids, aquaculture ozonation racks, or air sanitization equipment.

Technical Data & Specifications

Product Model KYOG-10GC (KYOG220V10GC / KYOG110V10GC)
Product Category Air-Cooled Ceramic Tube Ozone Generator Module
Ozone Generation Method Dielectric Barrier Discharge (DBD) Ceramic Tube
Rated Ozone Output Yield 10 g/h (10,000 mg/h)
Operating Input Voltage AC 220V (50Hz) / AC 110V (60Hz) (Selectable Options)
Rated Power Consumption 100 W
Ozone Tube Dimensions 260 × 67 × 46 mm (Blue Anodized Aluminum Fins)
Power Supply Dimensions 150 × 56 × 40 mm
Gas Port Configuration Dual Barbed Fittings (Inlet & Outlet)
Feed Gas Requirements Dry Ambient Air or Concentrated Oxygen
Cooling Method Ambient Air Cooling (Forced-air fan cooling recommended for extended operation)
Material Composition High-Purity Ceramic, Blue Anodized Aluminum, Corrosion-Resistant Engineering Polymers
Applicable Standards CE Certified, EMC Compliant Design

Applications

Commercial Water Purification Aquaculture & Fish Hatchery Sanitization Swimming Pool & Spa Water Treatment Industrial Wastewater & Sewage Oxidation Agricultural Irrigation Disinfection Food & Beverage Rinse Water Ozonation Commercial Laundry & Dishwashing Systems Industrial Air Purification Skids

Custom OEM/ODM Engineering & Skid Integration

Shenzhen KINYO Technology Co., Ltd. provides comprehensive OEM/ODM engineering and turnkey assembly services for water treatment and environmental equipment manufacturers. We offer scalable ozone output capacities (5 g/h to 20 g/h), 110VAC/220VAC dual-voltage options, complete pre-mounted test bench assemblies (including cooling fan, diaphragm air pump, and terminal blocks), and bespoke gas manifold fittings. Contact our engineering team for technical datasheets and sample evaluations.
