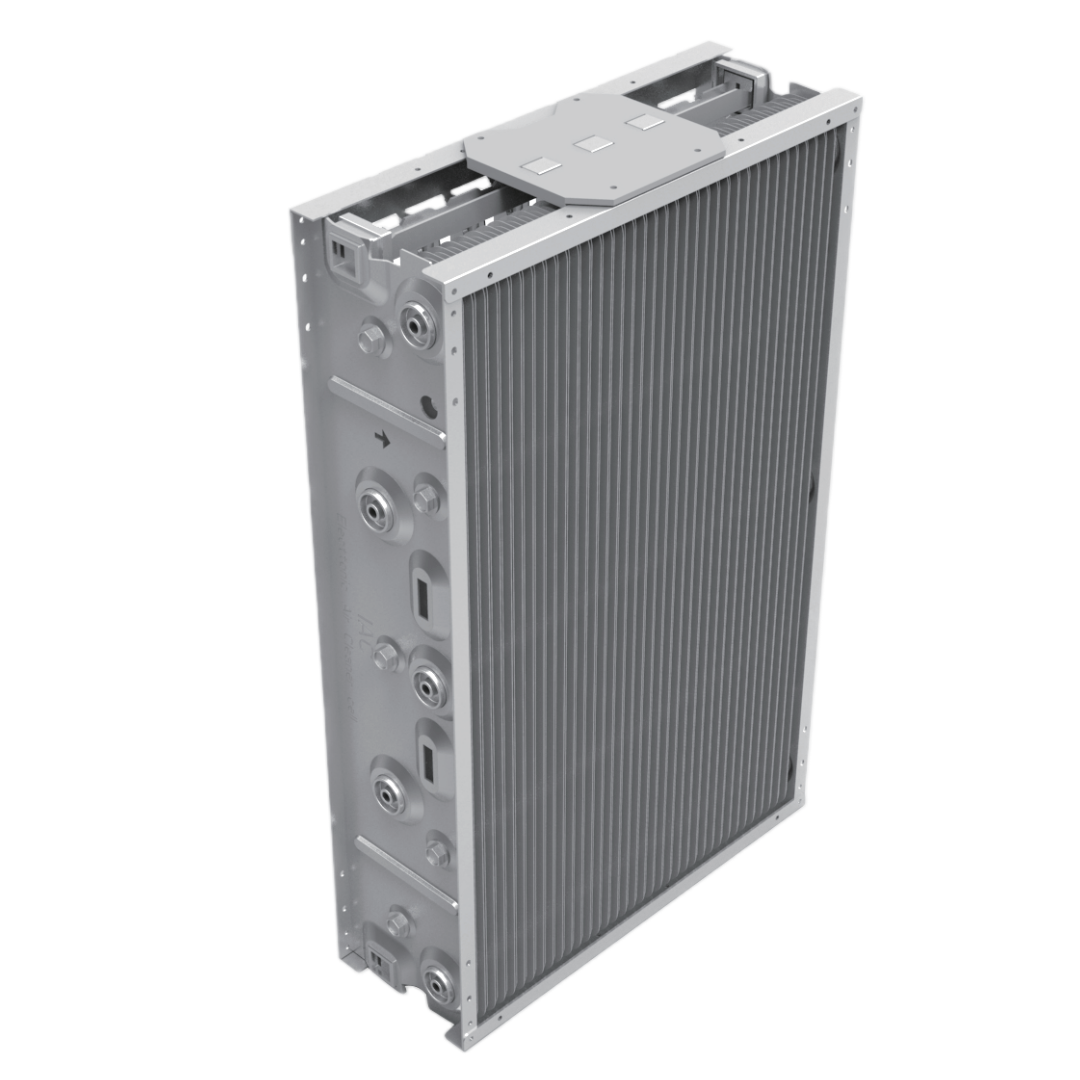

  • KY-ESP-175 electrostatic precipitator filter unit perspective side-angle view showing the 175mm thickened aluminum cell frame, side electrical contact points, and parallel collector plates for commercial kitchen exhaust and HVAC air handling systems.

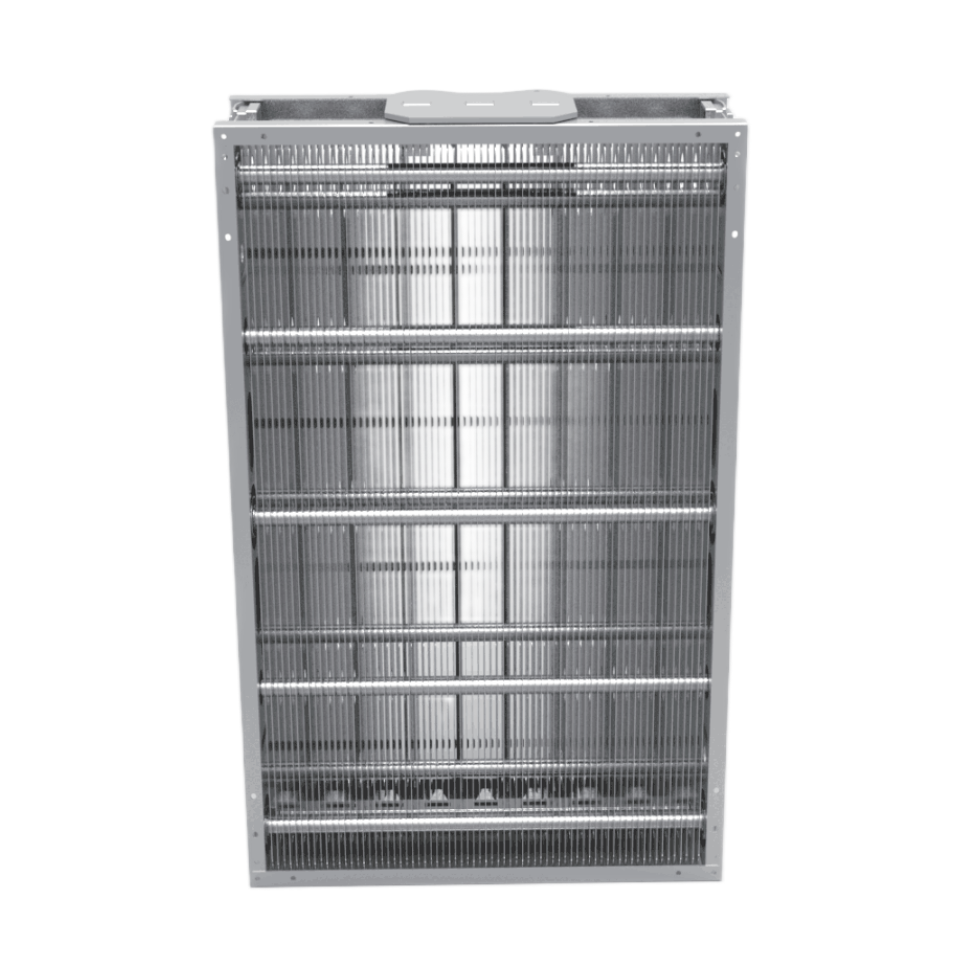

  • Front orthogonal view of the KY-ESP-175 electrostatic precipitator module illustrating the two-stage filtration layout with vertical high-voltage tungsten ionization wires and dense grounded aluminum collection plates for 1000 to 3500 m³/h commercial ventilation.

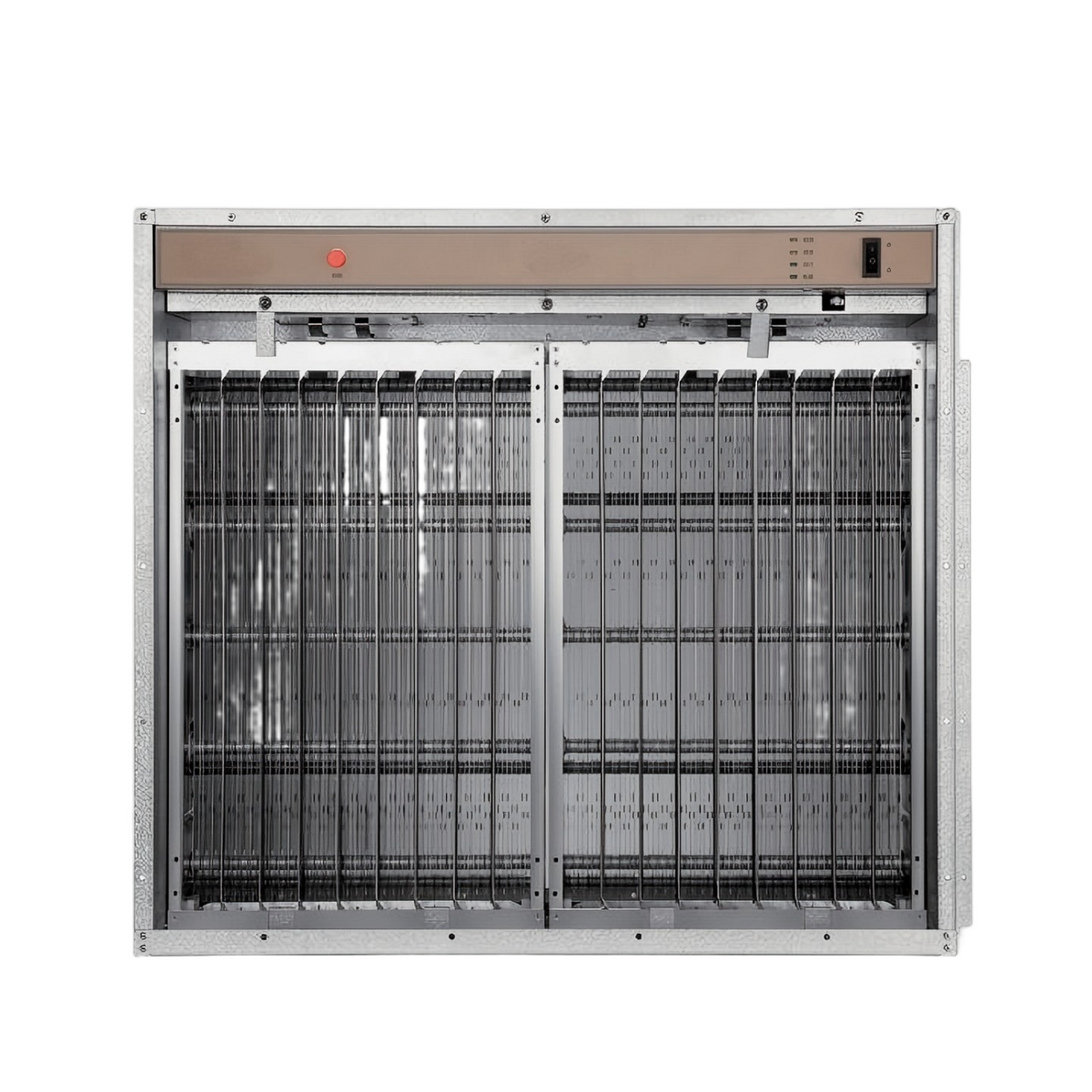

  • Operational product demonstration video showcasing the KY-ESP-175 electrostatic precipitator (ESP) cell structure, assembly process, and high-efficiency particulate removal performance.
  • Component kit photograph showing KY13L440A electrostatic collection module connected to its dedicated high-voltage power supply module and step-down isolation transformer with wiring harnesses.
  • Schematic operational flowchart demonstrating two-stage electrostatic air cleaning mechanism: intake dirty air through pre-filter, high-voltage tungsten wire ionization, particle collection on charged aluminum plates, and clean air exhaust.

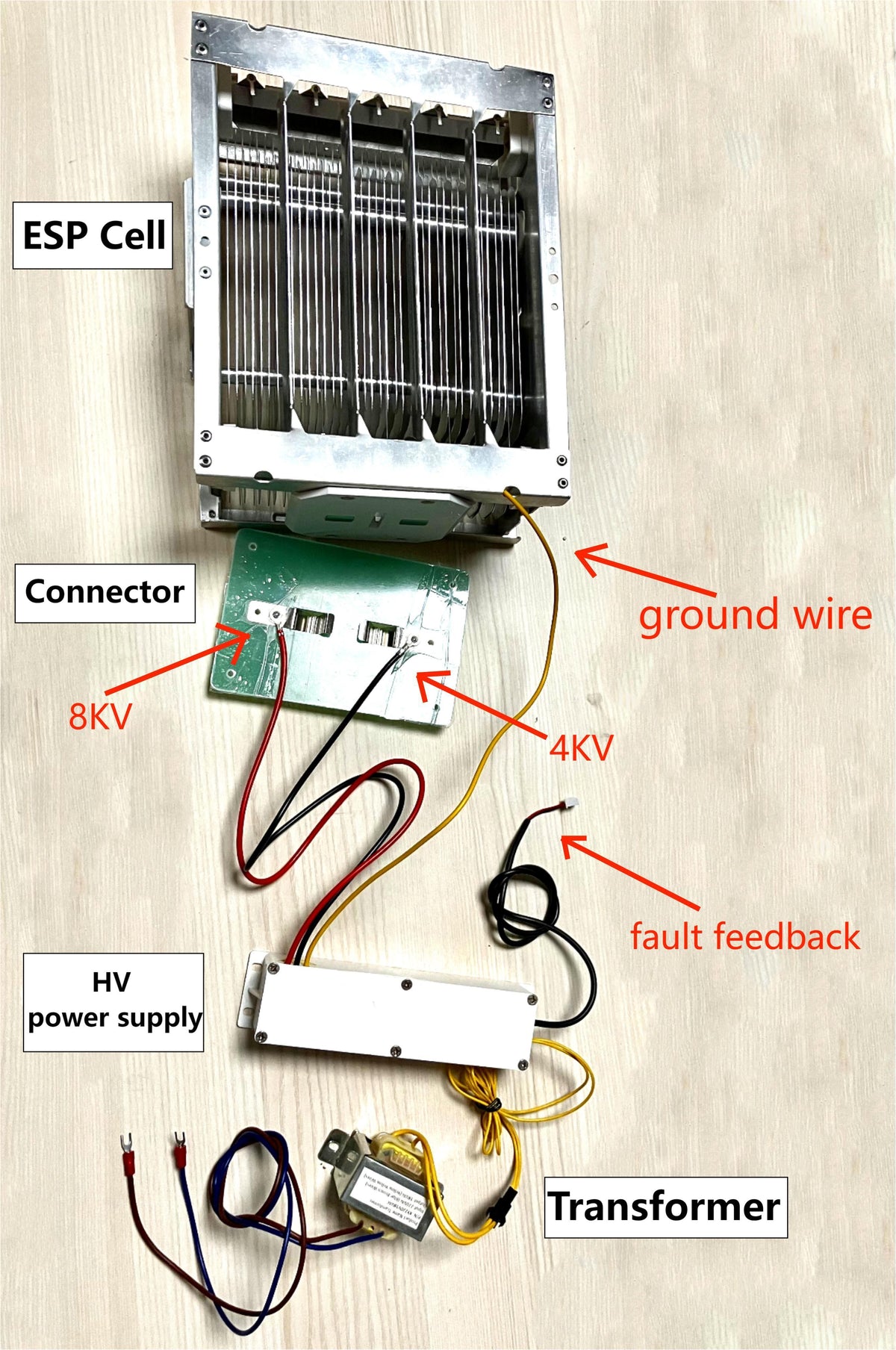

  • Hardware connection layout photograph showing the KY-ESP-175 electrostatic collector cell connected to the interface board with 8kV and 4kV terminals, ground wire, fault feedback line, solid-state high-voltage power supply, and AC step-down transformer.
1 8

ESP Filter Unit for Commercial Kitchen & HVAC / KY-ESP-175 / 175mm Cell & 1000-3500m³/h

ESP Filter Unit for Commercial Kitchen & HVAC / KY-ESP-175 / 175mm Cell & 1000-3500m³/h

$499.00 USD
$499.00 USD $499.00 USD
Sale Sold out
Shipping calculated at checkout.
Service type
175 mm
Thickened Depth
≥ 99%
PM2.5 Removal
≥ 99%
Sterilization Rate
Washable
Reusable filter

Industrial Heavy-Duty Electrostatic Precipitator (ESP) Filter Module: Engineered specifically for high-capacity commercial kitchen ventilation, central HVAC air handling units (AHU), and industrial fume scrubbers. Featuring an expanded 175mm cell depth, the KY-ESP-175 delivers significantly enlarged ionization surfaces and increased particle residence time to capture heavy grease smoke, oil mist, welding fumes, and industrial particulate matter across airflow rates from 1000 m³/h up to 3500 m³/h. Built with a robust stainless steel housing and washable aerospace-grade aluminum collection plates, it provides durable continuous filtration with low static aerodynamic drag (<25 Pa) and zero consumable replacement overhead. Backed by KINYO-CHINA 20+ years of electrostatic manufacturing expertise with full OEM/ODM dimensional and airflow customization.

Parameter Result / Accuracy Notes
Particulate (PM2.5) Removal ≥ 99% Third-Party Laboratory Tested
Microbial Sterilization Efficiency ≥ 99% Third-Party Laboratory Tested
Cell Installation Depth 175 mm Thickened Heavy-Duty Frame Topology
Airflow Handling Range 1000 ~ 3500 m³/h Factory Aerodynamic Air Volume Specification
Static Wind Resistance < 25 Pa Low Wind Resistance Design
Collector Maintenance Protocol 100% Washable & Reusable Zero Consumable Replacement Cost
Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.
Engineering Highlights
01. 175mm Thickened Cell Depth
Substantially expanded 175mm cell frame provides extended air residence time and greater dust-holding capacity, optimal for severe commercial grease and industrial dust loads.
02. High Airflow (1000~3500 m³/h)
Engineered aerodynamic airflow channels handle large air volumes up to 3500 m³/h while maintaining low static wind drag (<25 Pa) to protect blower motor efficiency.
03. Washable & Zero Consumables
Heavy-gauge aluminum collector plates withstand repeated detergent immersion washing, completely eliminating regular consumable filter replacement expenses.
04. Matched High-Voltage Inverter
Seamlessly integrates with dedicated KINYO solid-state high-voltage power supplies (dual 8kV/4kV DC) with continuous arc-pull protection and fault signal feedback.
Technical Data & Specifications
Model Number KY-ESP-175 (175mm Heavy-Duty Series)
Product Category Heavy-Duty Electrostatic Precipitator (ESP) Filter Unit
Cell Installation Depth 175 mm (Thickened Architecture)
Purification Architecture Two-Stage Electrostatic Precipitation (High-Voltage Tungsten Ionizer + Parallel Aluminum Collector Plates)
Airflow Handling Capacity 1000 ~ 3500 m³/h (Custom Air Volumes Available)
Target Airborne Contaminants Kitchen Grease Fumes, Oil Mist, Industrial Dust, Welding Smoke, Particulate Matter (PM2.5)
Static Aerodynamic Drag < 25 Pa (Low Wind Resistance Topology)
Chassis & Shell Material Industrial Stainless Steel / Galvanized Steel Housing
Collector Plate Material Aerospace-Grade Washable Aluminum Alloy Collector Plates
Matched High-Voltage Power Supply Dual 8 kV / 4 kV DC Solid-State Power Supply Module (KYOG Series)
Input Power Options 12VDC / 24VDC or 110VAC / 220VAC (Via External Step-Down Transformer)
Maintenance Protocol 100% Washable & Reusable (Zero Consumables)
Compliance & Standards Designed to meet CE & RoHS Directives
Quality Grade / Origin Qualified Industrial Product | Made in China
Applications
Commercial Kitchen Fume & Grease Scrubbers Central HVAC Air Handling Units (AHU) Industrial Waste Gas & Smoke Filtration CNC Machining Oil Mist Collection Welding Fume & Laser Cutting Extraction Ventilation Duct Plenums
OEM / ODM Custom ESP Filter Module Manufacturing
Looking to integrate custom-dimension electrostatic precipitator modules into your commercial kitchen exhaust, AHU ventilation system, or industrial fume scrubber? KINYO-CHINA offers 20+ years of electrostatic manufacturing expertise: bespoke cell width, height, and depth dimensions, tailored airflow capacities (100~10,000 m³/h), custom matched 12V/24VDC or 110V/220VAC high-voltage power supplies, private labeling, and bulk export crating.
