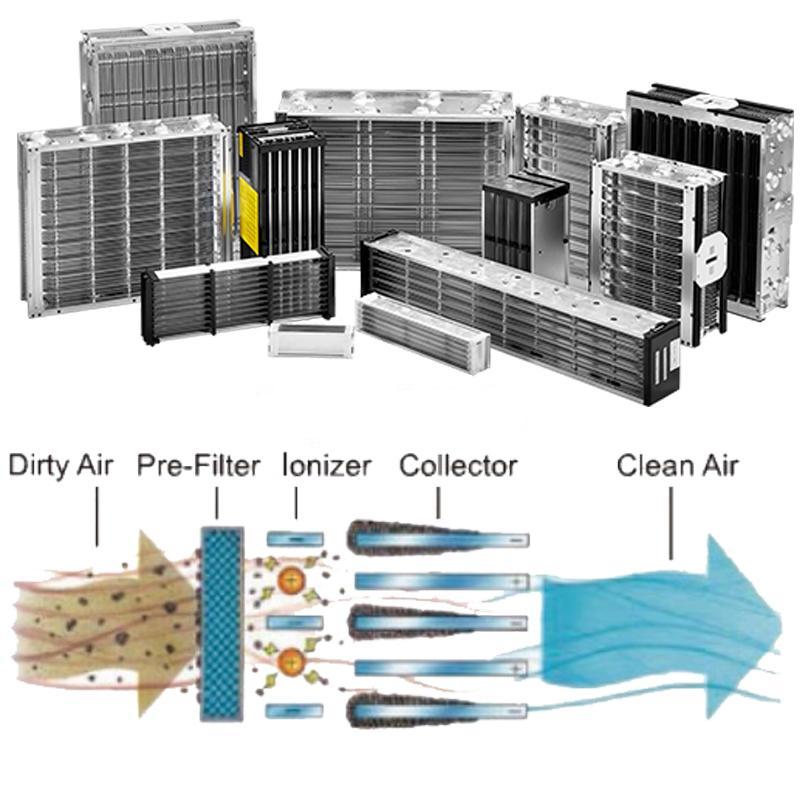

Try the KINYO Dual High Voltage Power Supply for ESP Filter systems, Air Cleaners, and other HVAC Parts. With 20 years of experience, you can trust this reliable and safe high-voltage power supply for your air purification system. Enjoy the peace of mind of clean air.
Protecting Functions：
1. Output short circuit protection, 2. Arcing protection: 2~5 seconds continuous arc protection 3. Overload protection 4. Fault signal feedback: Automatically cut off the high voltage output when protection, and output the fault protection signal
Selling Points：
1. Using unique high-voltage voltage and current double closed-loop control patent technology to ensure consistent purification efficiency and effective control of ozone concentration. 2. Kinyo has over 20 years of experience in R&D and manufacturing. Our products are efficient and reliable by advanced technology.
Specification：

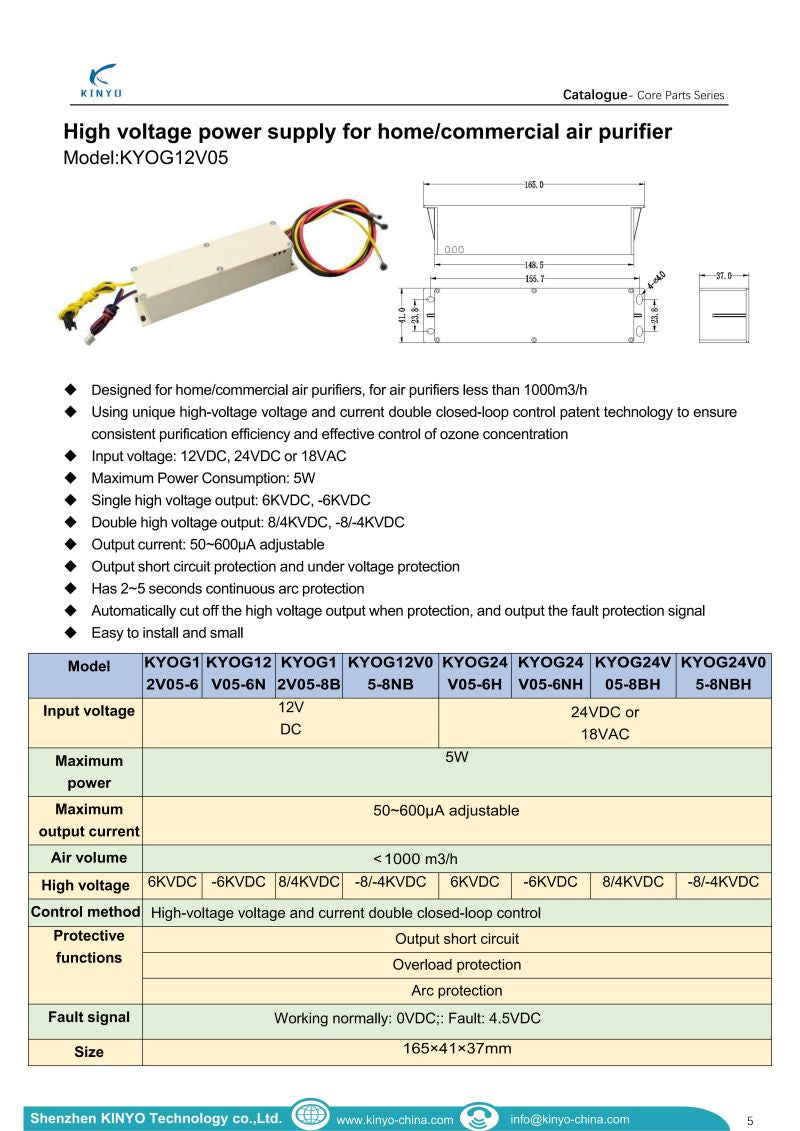

Model: KYOG12V05
Input voltage: 12VDC or 24VDC or 85V~250VAC 50Hz/60Hz (Customizable)
Maximum Power Consumption: 5 Watts
Single high voltage output: 6KVDC, -6KVDC (Customizable)
Double high voltage output: 8/4KVDC, -8/-4KVDC (Customizable)
Output current: 50-600μA (Adjustable)
Air volume:<1000 m3/h

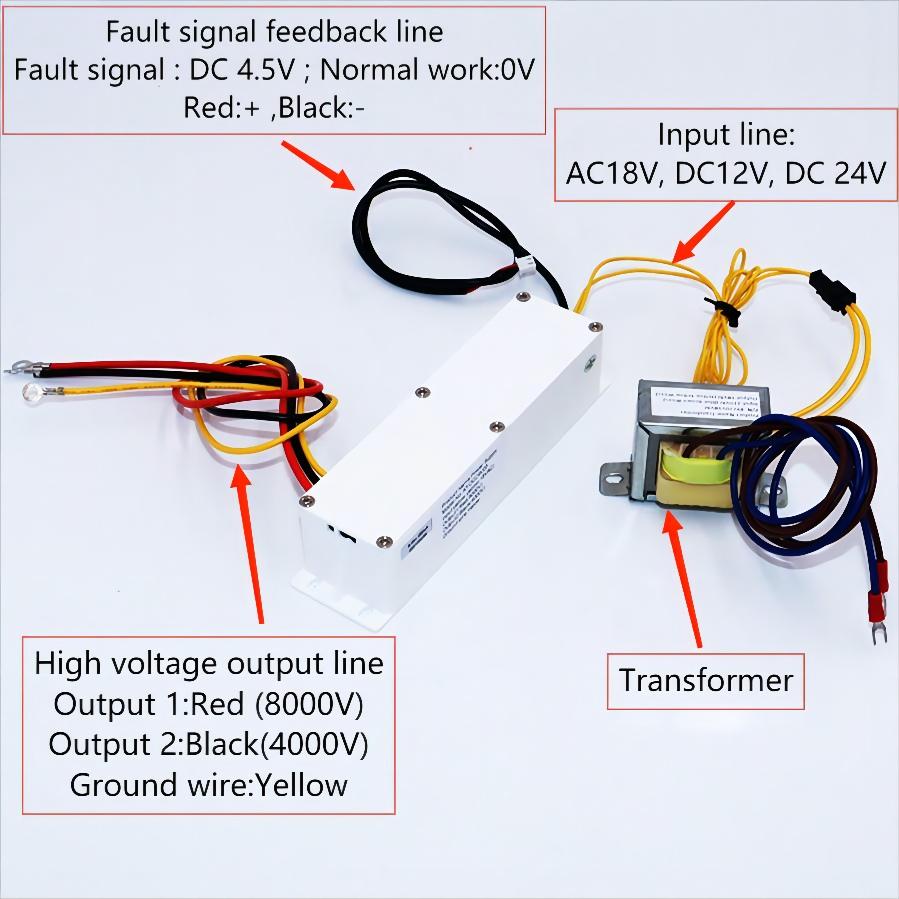

Fault signal feedback: Working normally: 0VDC; Fault: 4.5VDC

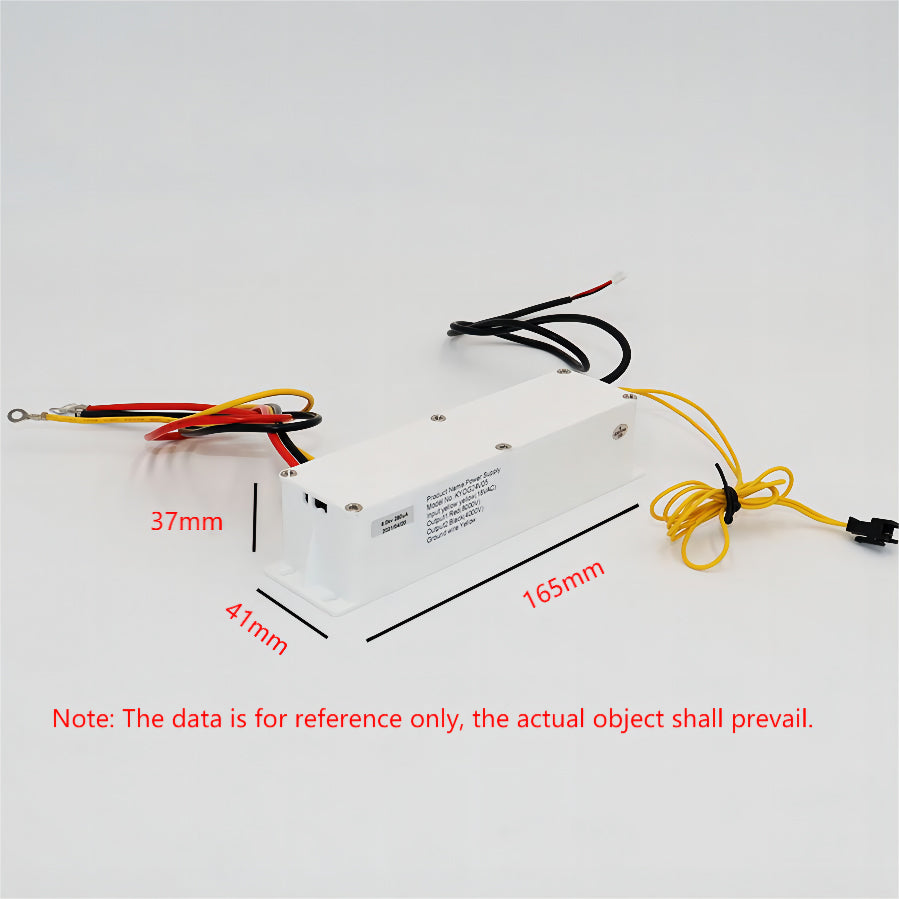

Size:165×41×37mm

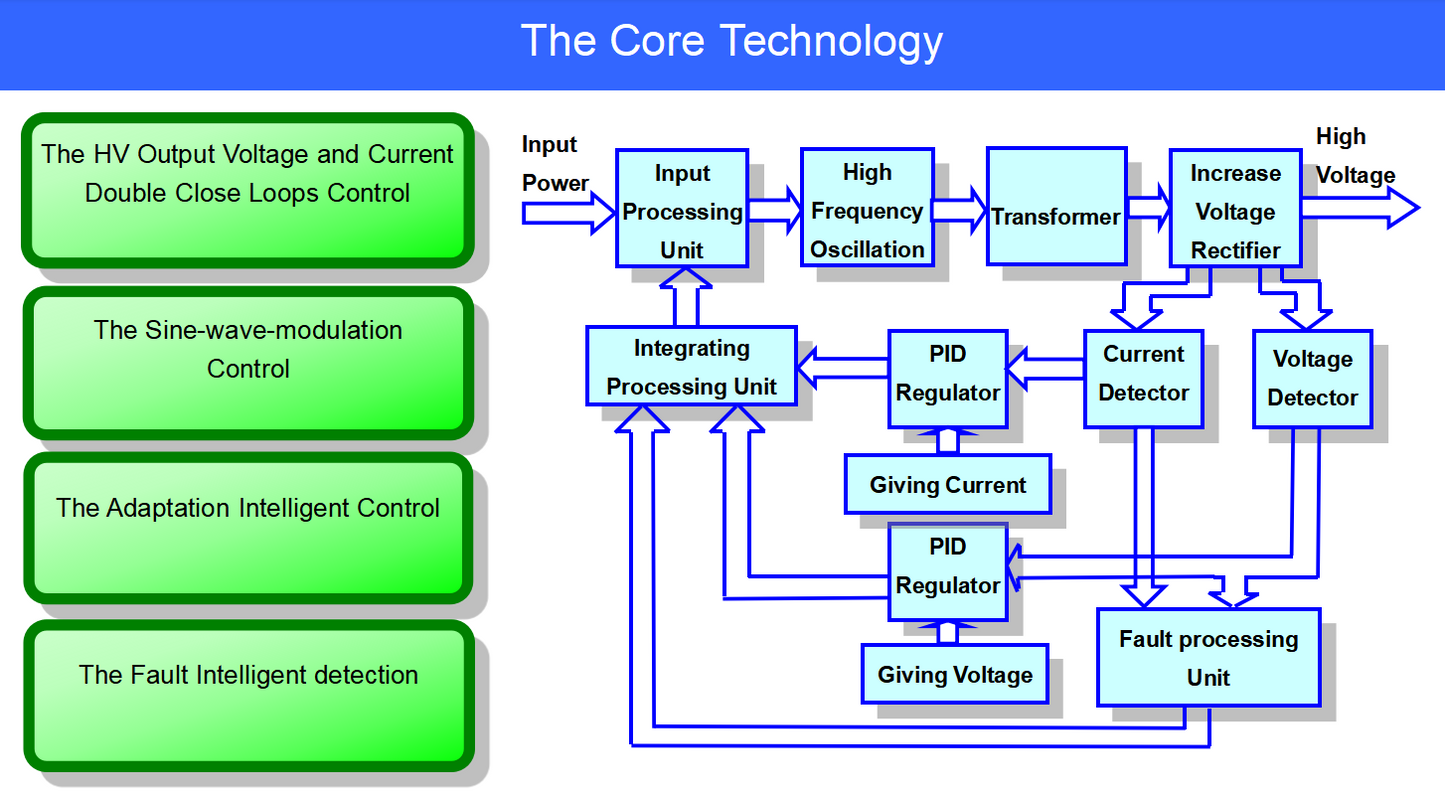

Control Technology: Current and voltage double close loop control.
Support Customization
Input / output voltage / Double/single high voltage / Output current(Adjustable)
