Brush Type Plasma Bipolar Generator Ionizer KY04G

Brush Type Plasma Bipolar Generator Ionizer KY04G

Regular price $59.99 USD
Regular price $33.32 USD Sale price $59.99 USD
Sale Sold out
Shipping calculated at checkout.
Input voltage

For residential and light commercial applications, the KYOG04G provides safe and continuous air purification to the entire home or building. It uses patented brush-style bipolar ionization technology that produces positively and negatively charged ions that reduce and neutralize harmful pollutants and odors. The unit installs in just minutes and requires minimal maintenance.


Input voltage: 230VAC 50/60Hz
Output voltage: 230V ±3.8KV±0.5KVDC

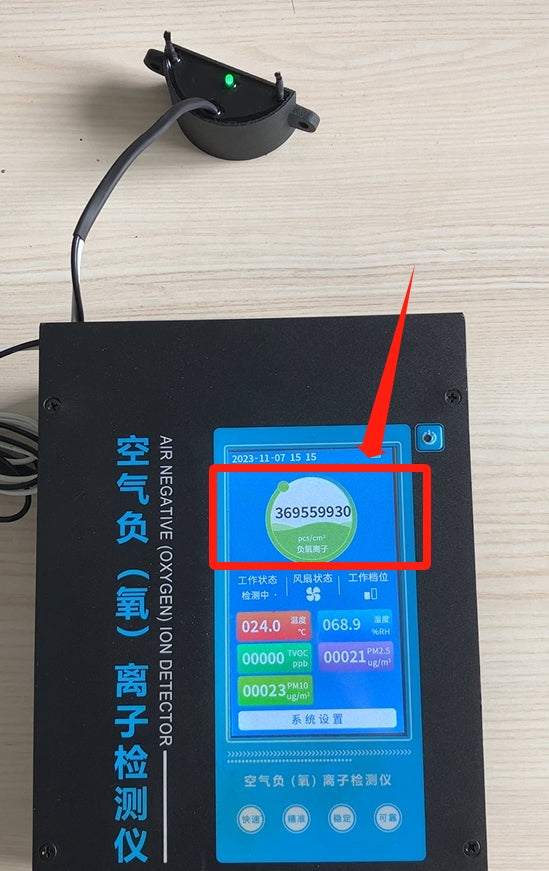

Ion quantity(PCS/cm3 AC230V ): >20×PCS/cm³
Mode of Operation: Brush, Needlepoint Type
Insulation resistance: Power line to output line>25MΩ(500V DC)
Dielectric strength: Power line to shell AC3750V50HZ 5mA 5S rated power no breakdown.
Rated power: <0.5W
Input current: <5mA

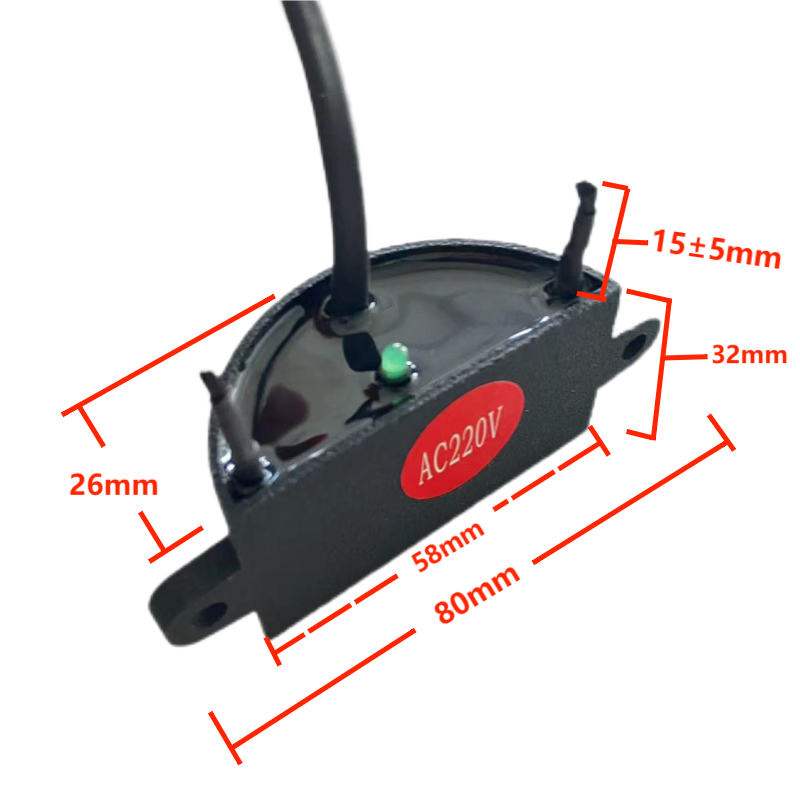

Size: 80x26x32mm (LxWxH)
Using temperature: <-10℃ ~+60℃
Using humidity: 35% ~ 85 %
Storage temperature: -2 0℃ ~+ 7 0℃
Moisture-proof: No abnormality occurred after being placed for 72H with no power, temperature :+25°C, humidity:95%.
High-temperature test: No abnormality occurred after being placed for 72H with no power, temperature: +75℃
Low-temperature test: No abnormality occurred after being placed for 72H with no power, temperature: -20℃
Fall-down test: Normal work ,falling from 100cm height
Weight: 0.2kg
Function: Remove Smoke Dust. Generate negative ions. Automatically cut off the high voltage output when protection, and output the working signal

Features and Benefits:

  • Proven to reduce or neutralize: dust, bacterial, virus, pollen, VOC, odor and mold. Designed for HVAC ventilation systems, home/commercial air purifiers, air conditioner, and air volume less than 1000m³/h air handlers.
  • Pathogens Killed (Bacteria, Viruses, Mold)Particle Reduction. Smoke Control, Odors Neutralized by destroying VOCs. Helps to Control Allergens/ Asthma, Prevents Dirty Sock Syndrome.
  • Using unique high-voltage voltage and short circuit protection to ensure consistent purification efficiency and effective control of ozone concentration.
  • Small and easy to install.
  • Ozone free, low noise, long life.


    • If you need other voltage ,please contact with online service . welcome to customize OEM or ODM your products.
    • The relevant test data and instrument shown in it are only for reference. The specific test value is related to the test distance and the precision of the instrument. Please be aware that when purchasing, please purchase the corresponding option.
    • Welcome to you feedback any questions when you used ,We will listen carefully and try our best to improve the product ,thanks.
