Oxygen Generator Control Board PCBA | KINYO | Fits 1-10L/min, 85-250VAC, OEM/ODM

Name: Oxygen Generator Control Board PCBA | KINYO | Fits 1-10L/min, 85-250VAC, OEM/ODM
Brand: KINYO-CHINA
Price: 99.00 USD
Availability: InStock

$99.00 USD

Sale Sold out

Shipping calculated at checkout.

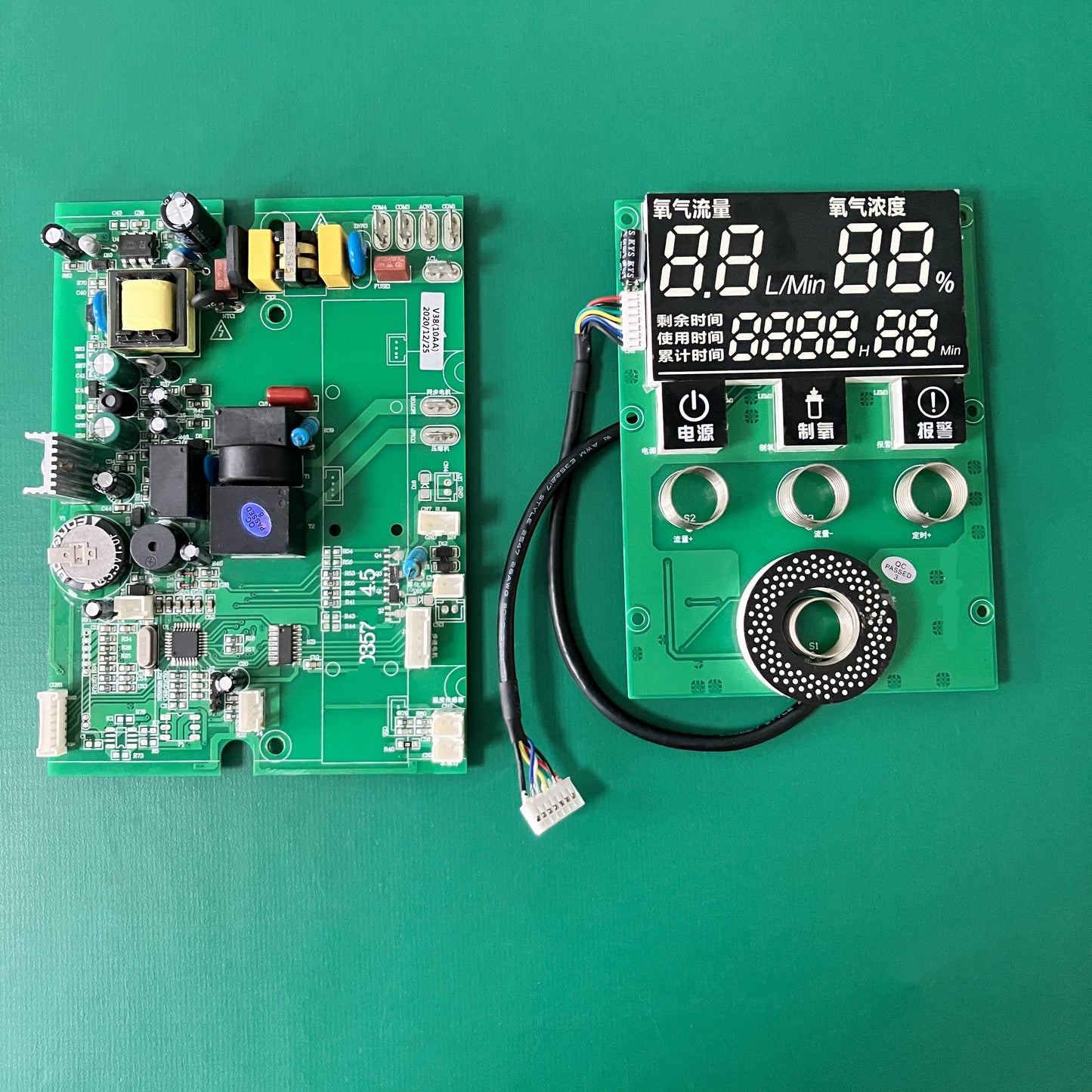

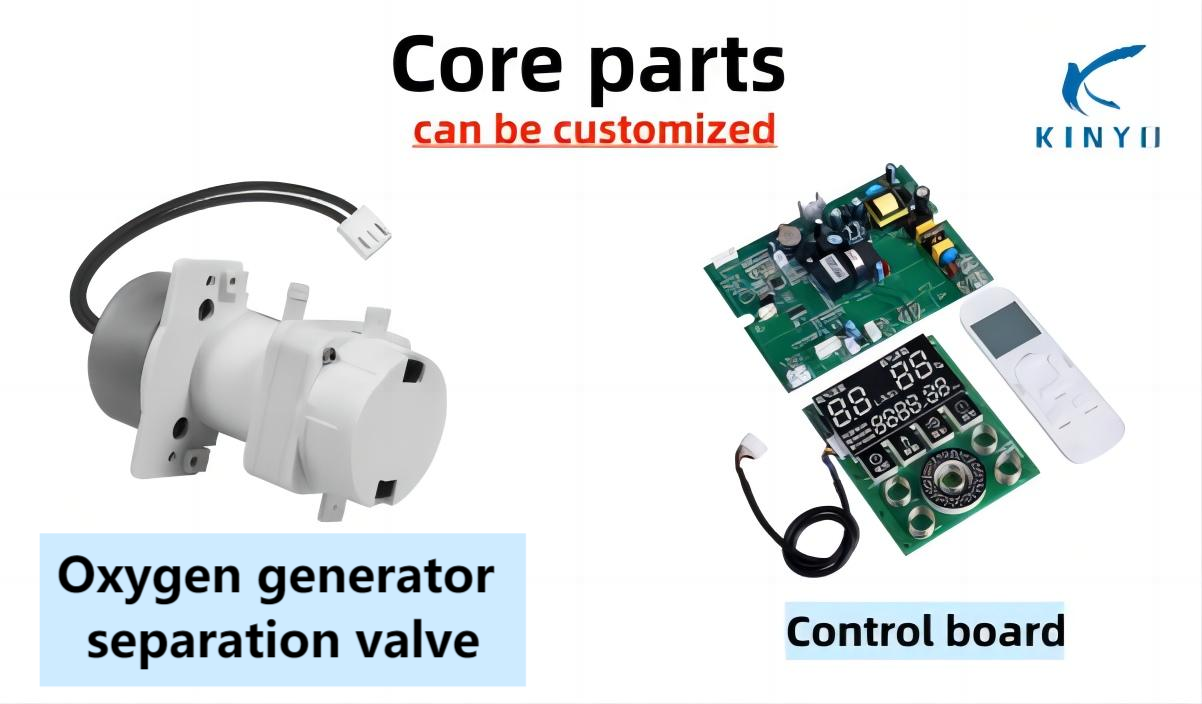

The KINYO Oxygen Generator Control Board PCBA is a high-reliability, turnkey controller engineered for 1–10 L/min medical-grade and household oxygen concentrators, air compressors, and negative ion systems. Backed by 20+ years of electronic engineering expertise, it provides precise coordination across compression cycles, molecular sieve valve timing, flow rate regulation, and user interface modules.

Applicable Flow Rate

1–10 L/min Units

Wide Input Voltage

85–250VAC Universal

Rapid OEM / ODM

20+ Years Experience

Multi-Load Drive

Compressor & Fan Motors

Custom Development, Tooling Support & B2B Manufacturing

• Sample / Prototype (MOQ: 1 pc): 15–20 days for circuit design & bench validation.
• Custom OEM/ODM Solution (MOQ: 500 sets): 25–35 days for mold tooling, custom enclosure & volume SMT fabrication.

ENGINEERING HIGHLIGHTS

1–10 L/min Universal Scalability: Adaptive drive algorithm calibrated for small portable 1L/2L/3L units up to high-output 5L, 8L, and 10L clinical oxygen generators.
Robust Multi-Load Control: Seamlessly drives oil-free air compressors, cooling fans, geared motors, stepping valves, and high-voltage negative ion modules with synchronous protection logic.

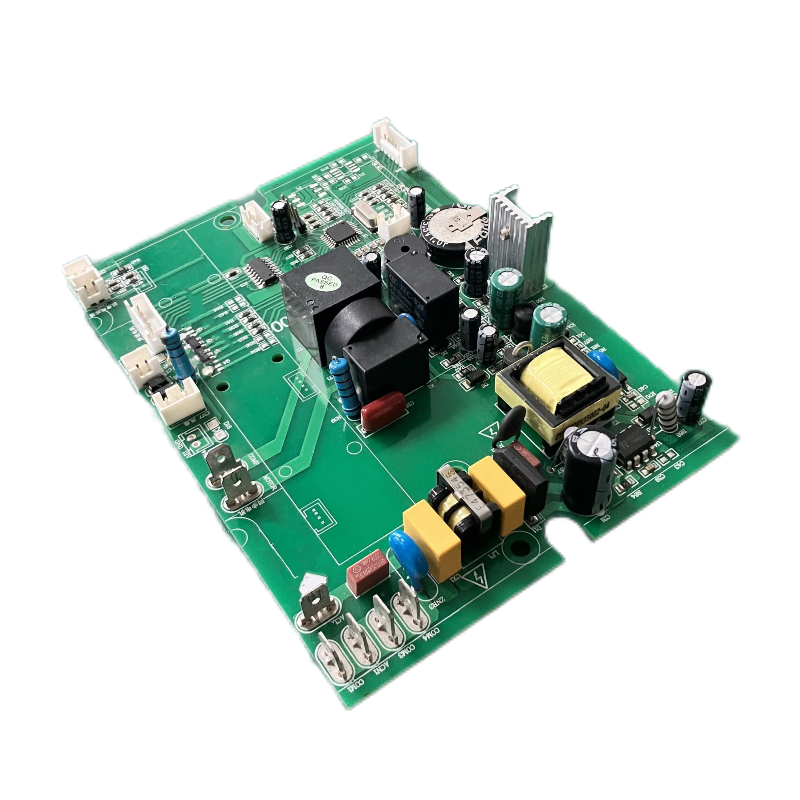

Switching Power Supply Architecture: Compatible with 85V–250VAC wide-range AC inputs, with low standby power and power-loss state retention.

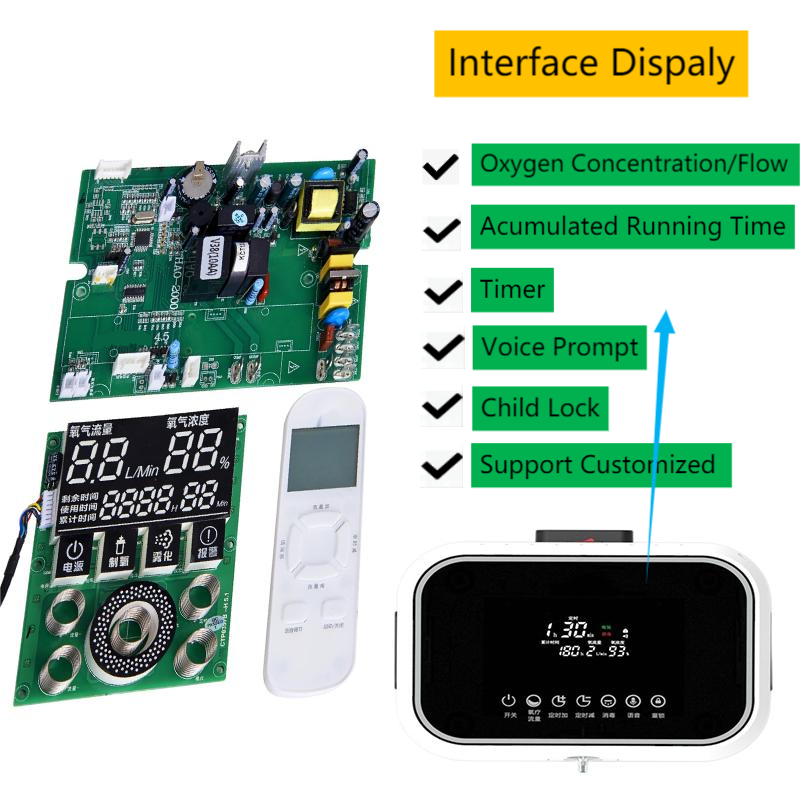

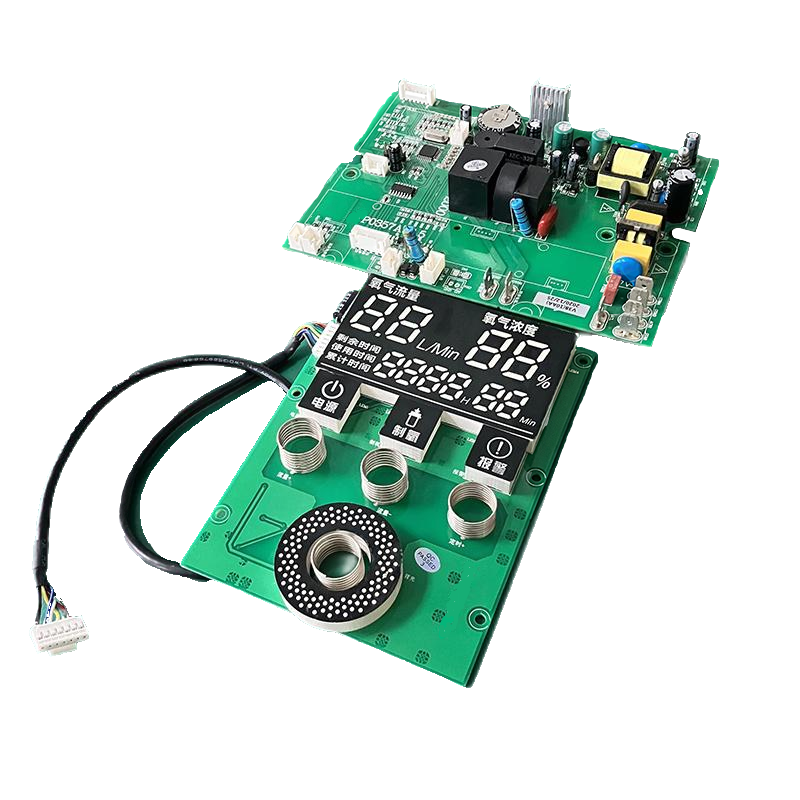

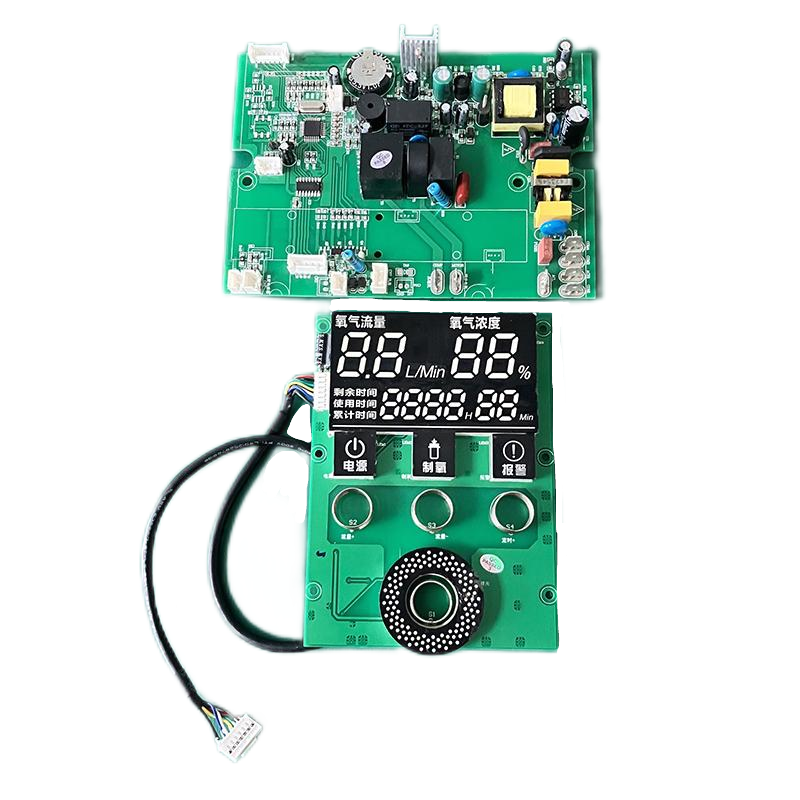

Flexible HMI & Display Support: Supports LED segment tubes, LCD displays, color TFT screens, and capacitive/tactile touch switches for modern industrial and consumer designs.
Smart Sensing & Fault Detection: Real-time integration with ultrasonic/electrochemical oxygen concentration sensors, pressure transducers, thermal cutoffs, and acoustic alarm buzzers.

TECHNICAL SPECIFICATIONS

Applicable Flow Capacity	1–10 L/min (1L, 3L, 5L, 8L, 10L Units)
Microcontroller (MCU)	High-Performance 8-bit / 32-bit MCU Platform
Operating Voltage	85VAC–250VAC (50/60Hz Universal Switching Power)
Controlled Peripherals	Oil-Free Air Compressor, AC/DC Fan Motor, Stepping Valves, Ionizer Module
Display & Input Methods	LED Indicators, LCD Display, Touch Buttons, Tactile Keypads
Sensor Interfaces	Oxygen Concentration Sensor, Pressure Transducer, Thermal Cutoff
Circuit Protection	Over-Pressure Protection, Over-Current Cutoff, Power-Loss Memory
B2B MOQ & Customization	Sample MOQ: 1 pc \| Custom OEM/ODM MOQ: 500 sets (Tooling & Mold Support)

TARGET APPLICATIONS

1–10 L/min Medical Oxygen Concentrators Household Healthcare Oxygen Units Oil-Free Air Compressor Sets Negative Ion Respiratory Systems High-Altitude Plateau Oxygen Supply

Turnkey Custom PCBA Development & Enclosure Tooling

Supports customized PCB geometry, customized firmware protocols, and precision plastic injection mold tooling. Contact our engineering team for prototype samples and tooling quotes.

Request Engineering Consultation

View full details
