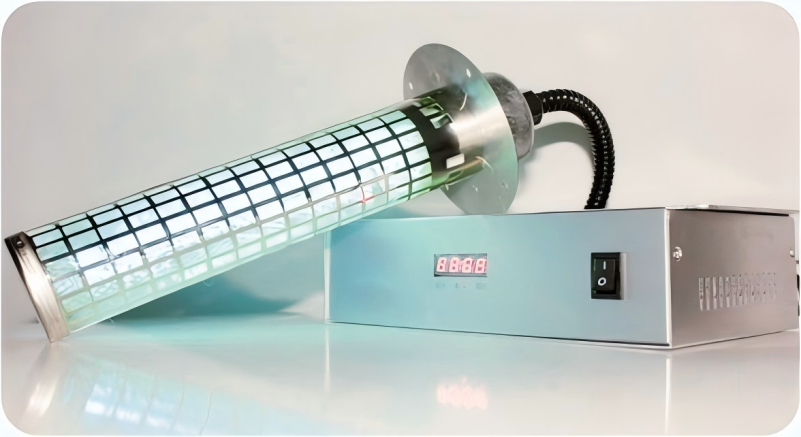

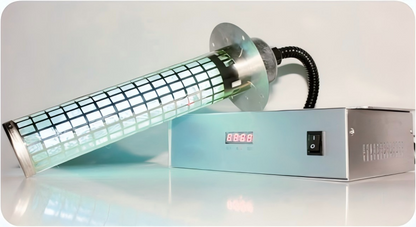

Ozone-Free Photocatalytic Oxidation (PCO) for AHU/FCU Duct Retrofit: The KINYO KY-ADS-M225V is a compact plunger-type photocatalytic oxidation air purification module designed for in-duct integration into commercial AHU, FCU, central air conditioning, and ventilation systems. Combining high-intensity UV-C light with TiO2 titanium dioxide catalyst grids, it decomposes airborne TVOCs, odors, formaldehyde, and bacteria into harmless water and CO2 without producing ozone or secondary chemical residues.
Performance & Verification
Parameter
Result
Notes
Pathogen Inactivation
> 99.9%
Third-Party Tested
TVOC Removal
≥ 96%
Third-Party Tested
Formaldehyde Removal
≥ 95%
Third-Party Tested
Ozone Concentration
< 0.005 ppm
Third-Party Tested
Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.
Engineering Highlights
01. UV-C + TiO2 Photocatalyst Core
Triple action sterilization and VOC decomposition via high-output UV-C light tube and nano-porous titanium dioxide catalytic lattice.

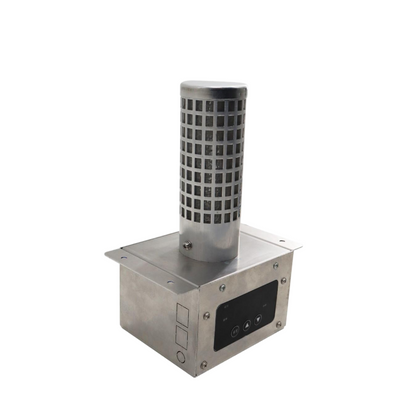

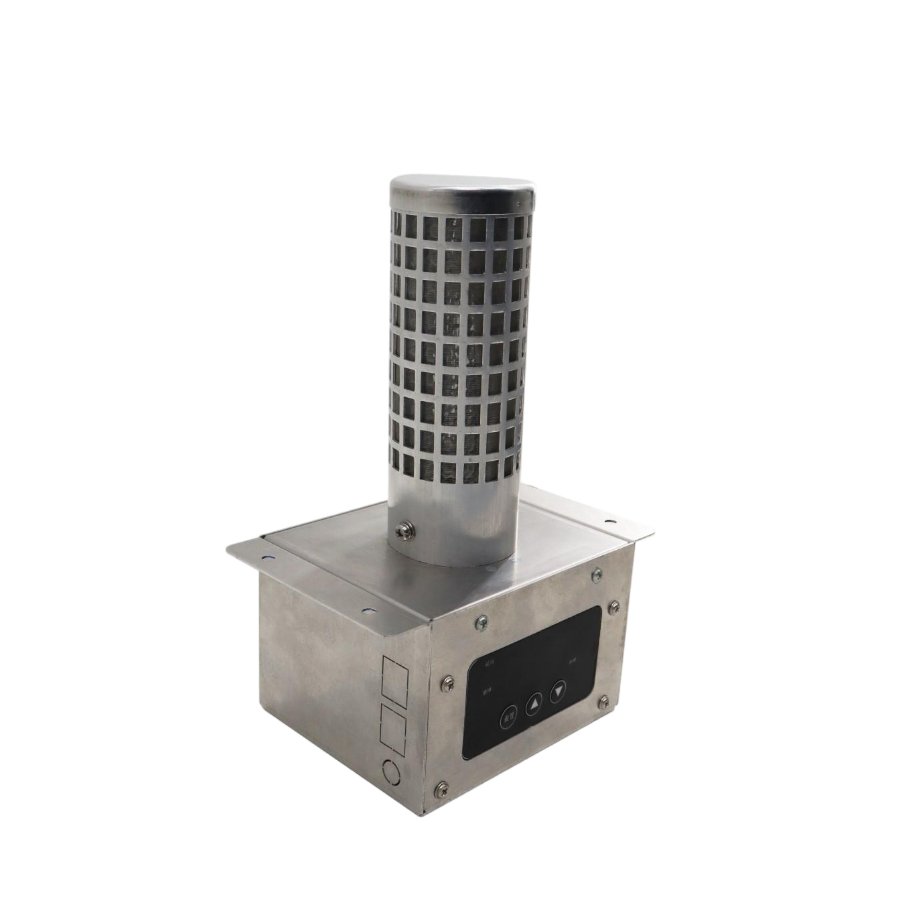

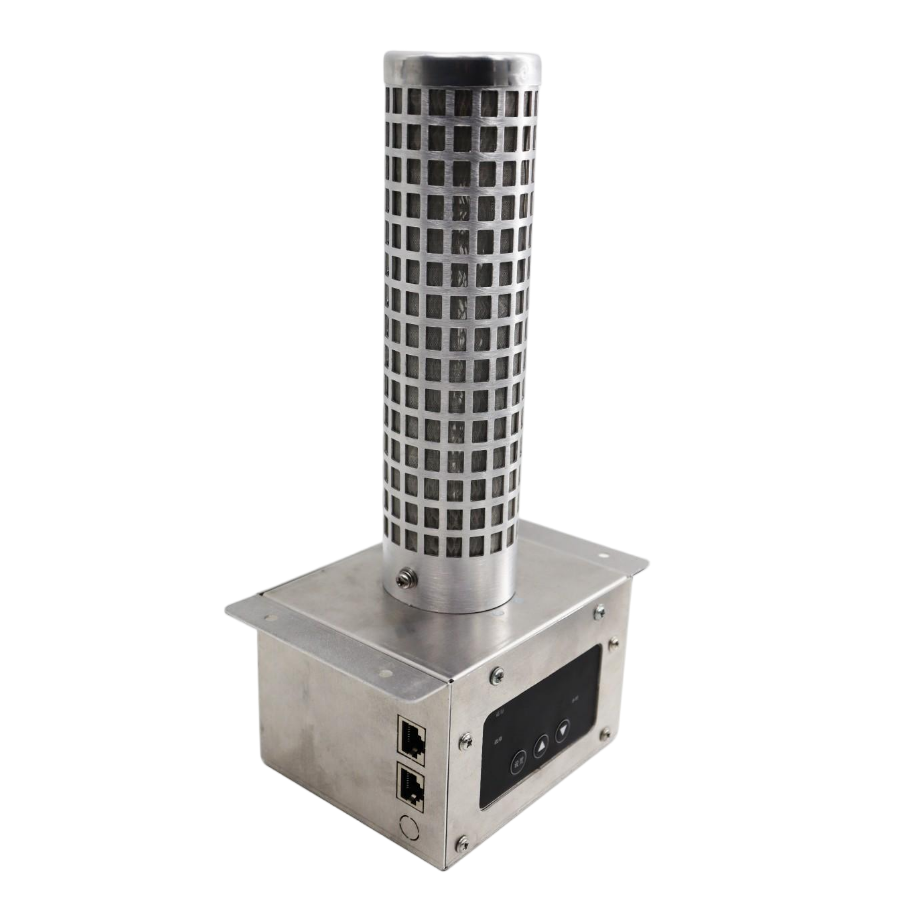

02. Plug-and-Play Insertion Assembly
Compact cylindrical probe drops directly into duct side walls, AHU inspection doors, or FCU chambers for rapid retrofit installation.
03. Smart Airflow Sensing Induction
Autonomous start/stop triggered automatically with air movement, maintaining energy efficiency and extending UV tube service life.
04. RS-485 & BMS Telemetry (Optional)
Integrated digital display with cumulative operating runtime and optional RS-485 Modbus telemetry for commercial building automation.
