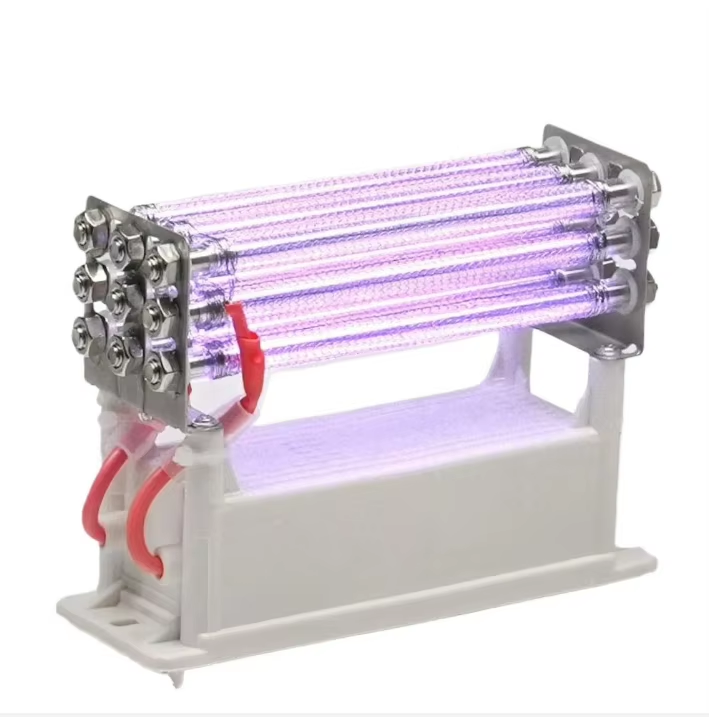

• Isometric three-quarter studio photograph of KINYO-CHINA KYOG220V27G commercial ozone tube generator module in active operation displaying purple corona discharge glow across nine quartz mesh discharge tubes in a three-by-three matrix, mounted atop a compact white insulated high-voltage power supply base engineered for high-efficiency 27 g/h ozone production, commercial deodorization, and industrial air treatment.

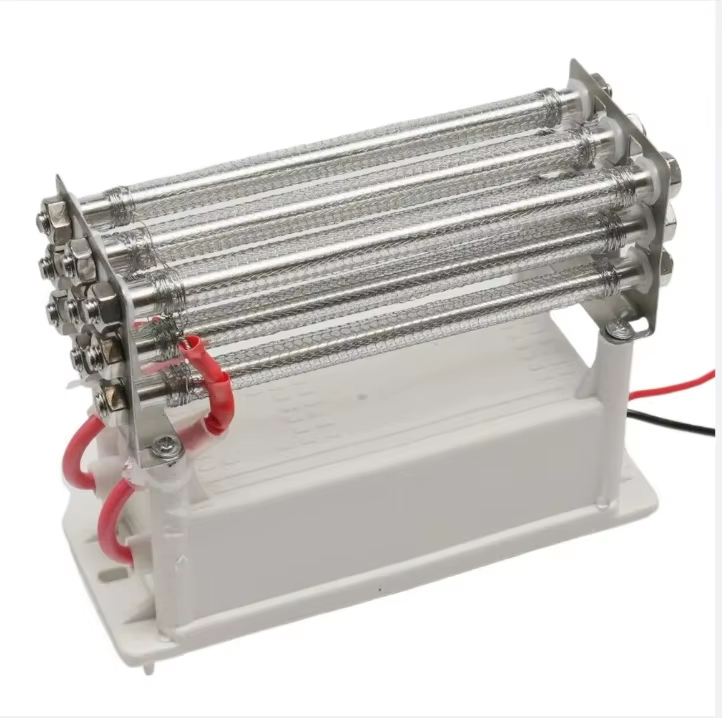

  • Studio perspective product view of KINYO-CHINA KYOG220V27G 27g/h ozone generator module showing nine stainless steel mesh quartz dielectric tubes rigidly secured in dual aluminum end brackets, high-voltage insulated red silicone lead wires, and bottom-mounted white power supply housing operating at 220VAC 60W for commercial dishwashers, HVAC ducts, and cold storage sanitization.

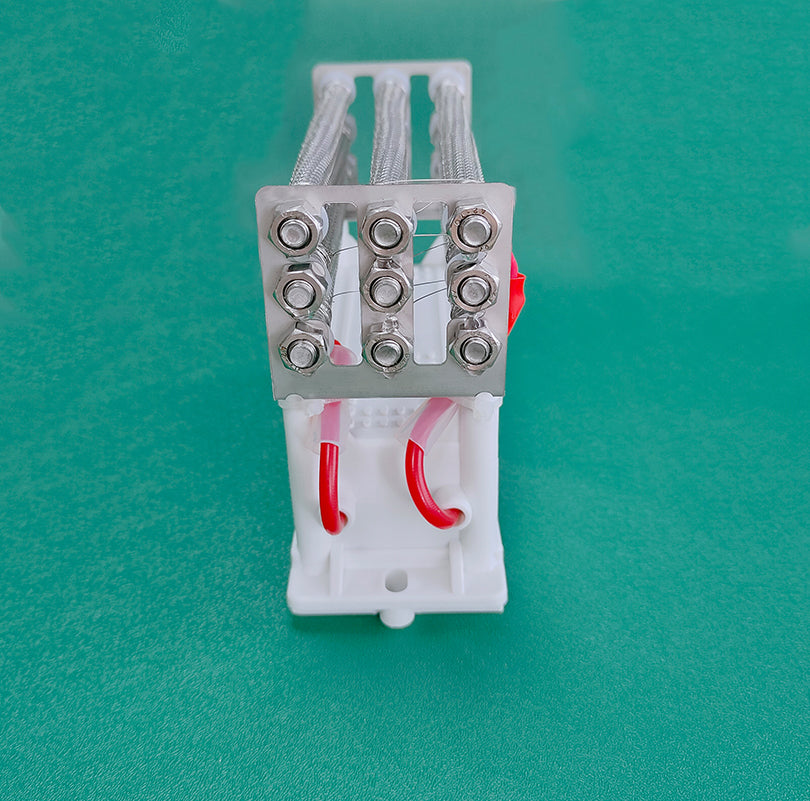

  • End-profile close-up view of KINYO-CHINA KYOG220V27G ozone generator tube assembly on a green background highlighting the precision 3x3 array of nine quartz tubes, stainless steel hex nuts, secure tension grounding plates, and high-voltage feed leads designed for uniform corona discharge with 3 to 5 mm discharge gap and 3kV primary-to-secondary dielectric isolation.

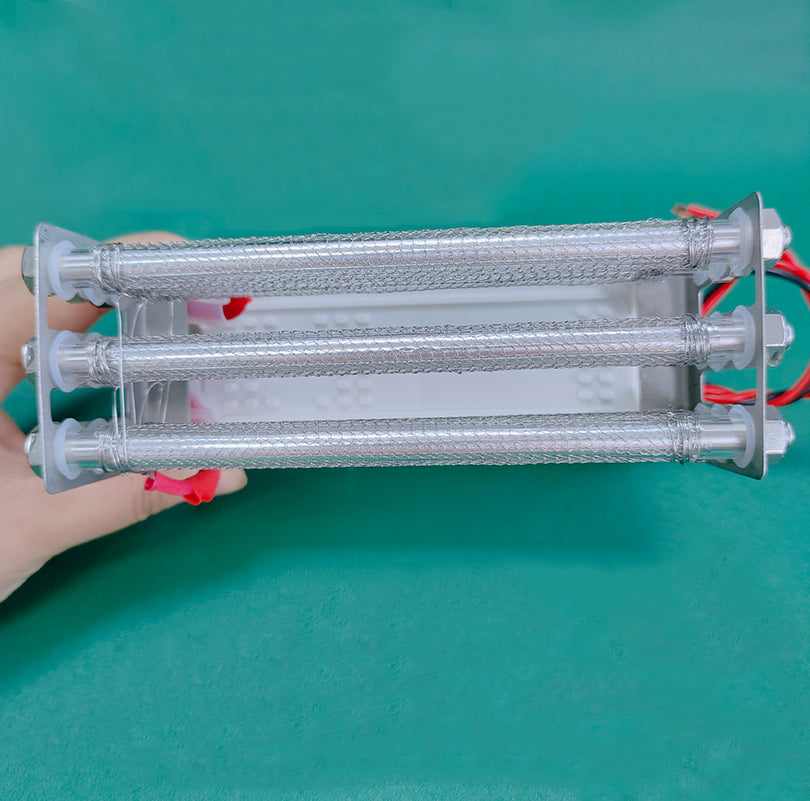

  • Top-down perspective studio shot of KINYO-CHINA KYOG220V27G 27g/h ozone generator held by hand demonstrating the compact 200mm tube length, stainless steel mesh outer sleeves, and robust structural assembly delivering 3.1kV to 3.5kV high-frequency pulse discharge at 16kHz for portable deodorization and commercial appliance integration.

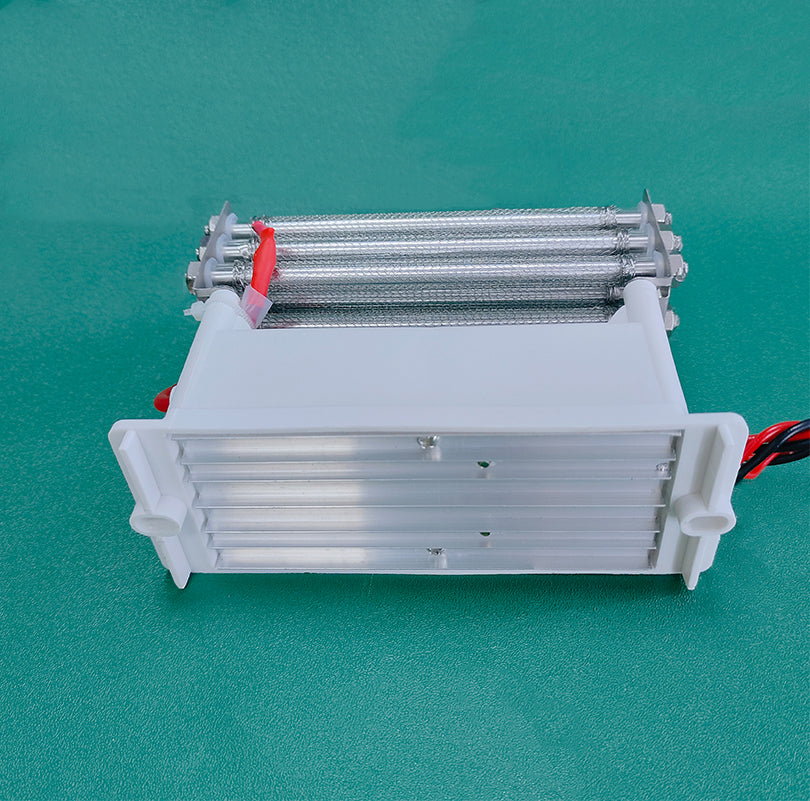

  • Bottom-angle view of KINYO-CHINA KYOG220V27G ozone generator power module showcasing the extruded aluminum heat sink fin base with chassis mounting tabs and dual input wiring, engineered for optimal thermal dissipation, continuous 60W duty, and open-circuit and short-circuit electronic protection.
  • Product packaging photograph of KINYO-CHINA ozone tube generator module securely cushioned inside protective bubble wrap within a sturdy corrugated cardboard shipping carton, ready for international B2B export shipment, OEM appliance manufacturing supply, and wholesale distribution.
1 7

Ozone Tube Generator for Commercial Disinfection / KYOG220V27G / 27g/h 60W 3.5kV

Ozone Tube Generator for Commercial Disinfection / KYOG220V27G / 27g/h 60W 3.5kV

$27.14 USD
$23.62 USD $27.14 USD
Sale Sold out
Shipping calculated at checkout.
Input voltage
27 g/h
High Ozone Output Yield
60 W ± 5 W
Low Power Consumption
3.1–3.5 kV
16 kHz Resonant Drive
9 Quartz Tubes
3×3 Corona Discharge Array

Engineered for Commercial Sanitation, Odor Degradation & HVAC Disinfection

Commercial and industrial sanitation systems require continuous, high-concentration ozone generation with minimal component degradation. The KINYO KYOG220V27G integrates a heavy-duty 9-tube quartz dielectric corona discharge array with an engineered high-frequency resonant power module, delivering stable 27 g/h ozone production. Built for direct integration into commercial dishwashers, HVAC ducts, drying cabinets, cold storage facilities, and agricultural water ozonation systems, it offers reliable open-circuit and short-circuit protection with 3 kV primary-to-secondary dielectric safety isolation.

Performance & Verification

Parameter Result / Rating Verification / Notes
Ozone Generation Output Yield 27 g/h (with dry ambient air or pure oxygen feed) Internal Laboratory Test
Microbial Sterilization Efficacy ≥ 99.0% airborne bacterial reduction (Pending Confirmation)
High-Voltage Drive Output 3.1 kV – 3.5 kV AC at ~16 kHz resonant frequency Internal Laboratory Test
Power Factor & Electrical Efficiency Power factor ≥ 0.95 (Rated 60 W ± 5 W, input current ≤ 380 mA) Internal Laboratory Test
Dielectric Insulation Withstand 3 kV isolation between primary and secondary circuits Internal Laboratory Test
Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.

Engineering Highlights

01. 9-Tube Quartz Corona Matrix
A precision-aligned 3×3 array of nine quartz dielectric tubes with outer stainless steel mesh sleeves delivers uniform electric field distribution and consistent high-density corona discharge.
02. Integrated High-Frequency Resonant Driver
Custom resonant power supply operates at ~16 kHz with high power factor (≥ 0.95), optimizing electrical-to-ozone conversion efficiency while keeping component thermal rise minimal.
03. Multi-Tier Electrical Safety Protection
Engineered with 3 kV primary-to-secondary electrical safety isolation, complemented by automatic open-circuit and short-circuit protection circuits to protect upstream appliance controllers.
04. Versatile Feed Gas & Cooling Support
Compatible with dry ambient air or pure concentrated oxygen feed gas, utilizing standard forced-air convection cooling through its base aluminum heat sink for extended continuous duty.

Technical Data & Specifications

Product Model KYOG220V27G
Product Category Corona Discharge Ozone Tube Generator Module
Ozone Generation Method High-Frequency Dielectric Barrier Discharge (DBD) Quartz Tubes
Rated Ozone Output Yield 27 g/h (0.1–28 g/h scalable range upon request)
Operating Input Voltage AC 220 V, 50/60 Hz
Rated Power Consumption 60 W ± 5 W
Input Operating Current ≤ 380 mA
Output High Voltage 3.5 kV ± 5% (3.1 kV – 3.5 kV AC, 3500 V ± 500 V)
Operating Frequency ~16 kHz Resonant Frequency
Power Factor ≥ 0.95
Discharge Gap 3 – 5 mm
Tube Assembly Configuration 9-Tube Quartz Mesh Array (3×3 Matrix with Aluminum End Brackets)
Dimensions Power Supply: 145 × 55 × 40 mm; Ozone Tube Unit: 200 × 45 mm
Operating Mode Intermittent continuous pulse discharge, continuous tube operation
Safety & Protection 3 kV primary-secondary isolation; open-circuit and short-circuit protection
Feed Gas & Cooling Dry air or pure oxygen feed; ambient air cooling (forced-air fan recommended)
Applicable Standards Designed to comply with CE and industrial ozone equipment safety directives

Applications

Commercial Dishwashers Commercial Clothes Dryers Refrigerator & Cold Storage Deodorization Electronic Shoe Cabinets HVAC Duct Air Sterilization Industrial Water Treatment & Ozonation Agricultural & Greenhouse Sanitation OEM Air Purifier Manufacturing

Custom OEM/ODM Engineering & Multi-Voltage Integration

Shenzhen KINYO Technology Co., Ltd. provides comprehensive OEM/ODM engineering support for global commercial appliance and environmental equipment manufacturers. We support customized ozone yield specifications ranging from 0.1 g/h to 28 g/h, multi-voltage power inputs (110VAC, 220VAC, or 12VDC), bespoke structural mounting frames, and matched microcontroller timing boards. Contact our engineering team for sample evaluations and technical datasheets.
