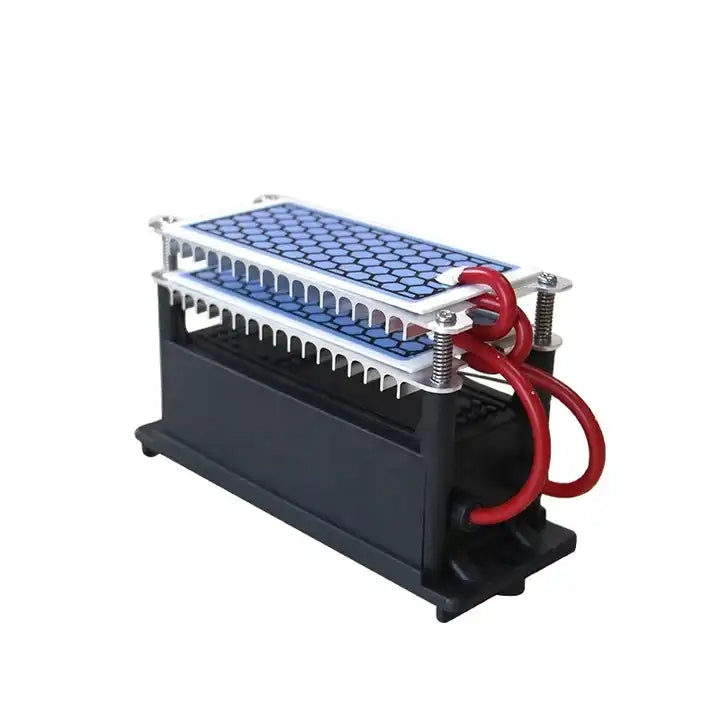

• KYOG220V10GP ceramic plate ozone generator module displayed in an isometric studio view on a white background, highlighting the black potted high-voltage power supply base, aluminum heat sink fins, stacked honeycomb ceramic discharge plates, and heavy-duty red silicone-insulated high-voltage lead wires.

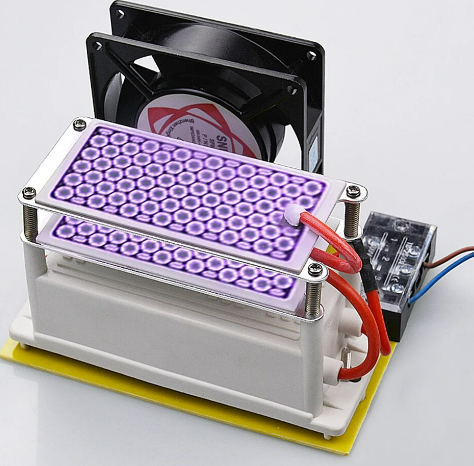

  • Operational close-up photograph of the KYOG220V10GP ozone generator module during active corona discharge, showcasing the vivid violet plasma glow across dual honeycomb ceramic plates, backed by a high-velocity axial cooling fan and wiring terminal block.
  • Side view photograph of the KYOG220V15GP CT04 ceramic ozone generator module on a clean white surface, showcasing the white flame-retardant housing with official CE marking and model silkscreen, red and black DC power input wires, aluminum cooling bracket, and dual honeycomb dielectric plates.

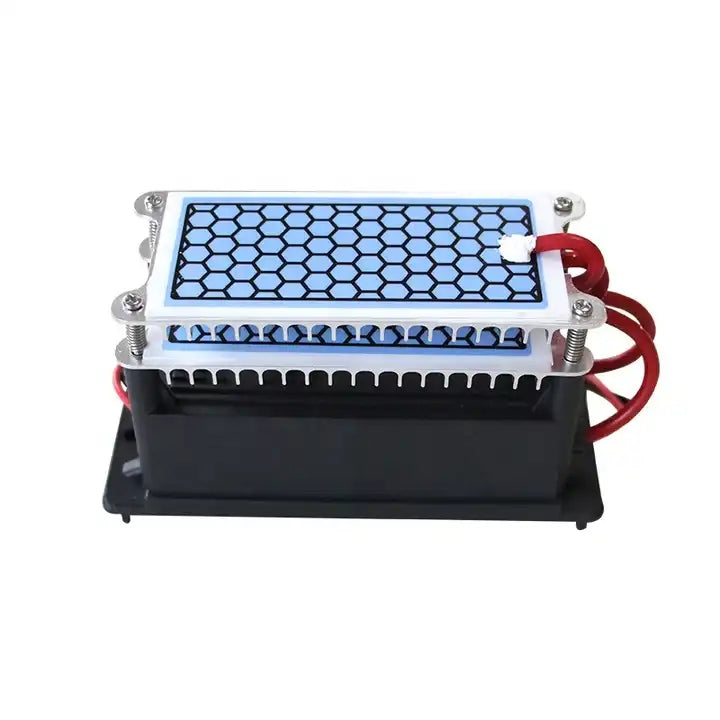

  • Side profile studio shot of the KYOG220V10GP ozone generator on a white background, detailing the black molded base mounting flange, slotted aluminum heat dissipation spacers, stacked blue dielectric honeycomb ceramic plates, and neatly routed red high-voltage leads.

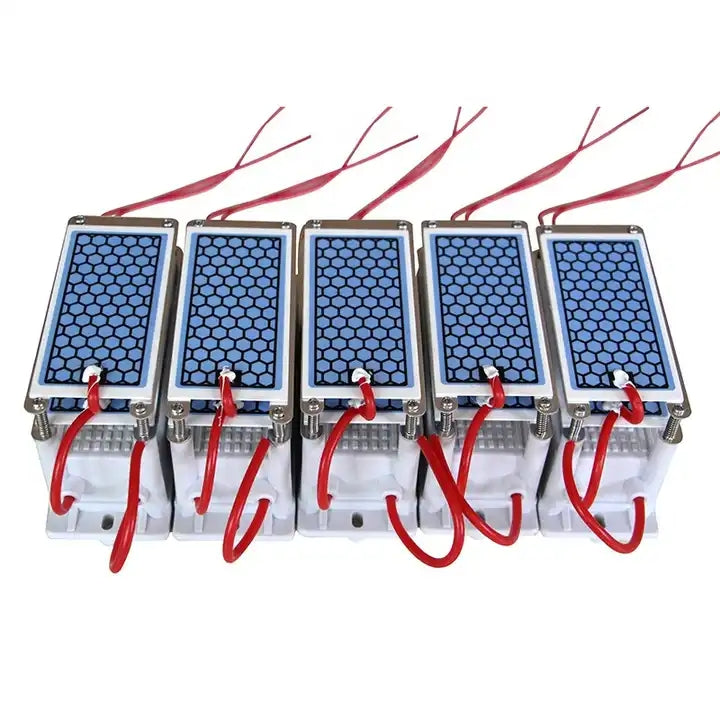

  • Factory production line display featuring a row of five assembled KYOG220V10GP ceramic plate ozone generator modules on a white background, illustrating high-capacity OEM manufacturing, standardized honeycomb ceramic elements, and red high-voltage wiring.
1 6

Ceramic Plate Ozone Generator for Air Treatment/ 5-60g/h

Ceramic Plate Ozone Generator for Air Treatment/ 5-60g/h

$7.80 USD
$7.80 USD
Sale Sold out
Shipping calculated at checkout.
Ozone output
Input voltage
Ozone Yield 10 ~ 15 g/h Continuous Output
Dielectric Tech Honeycomb DBD Dual Ceramic Plates
Input Voltage 220V / 110V / 12V Multi-Power Options
Unit Weight ≈ 0.45 kg Compact Module

High-Efficiency 10–15g/h Ceramic Plate Ozone Generator Module for Air Treatment & Disinfection

The KYOG220V10GP ozone generator module integrates a high-voltage corona power supply with stacked honeycomb ceramic dielectric plates to deliver 10 g/h to 15 g/h of ozone output (expandable up to 60 g/h). Designed for professional air treatment, industrial deodorization, and appliance integration, it utilizes atmospheric oxygen through Dielectric Barrier Discharge (DBD) to rapidly oxidize volatile organic compounds (VOCs), eliminate stubborn odors, and eradicate airborne microbes. Built with slotted aluminum heat sinks for continuous thermal management, it offers versatile input options (220VAC, 110VAC, or 12VDC) and a compact 0.45 kg form factor suitable for OEM HVAC ducts, dryers, refrigerators, and disinfection chambers.

Performance & Verification (P&V)

Parameter Result / Accuracy Notes
Rated Ozone Generation Yield 10.0 ~ 15.0 g/h (Dry Ambient Air) Internal Laboratory Test
High-Voltage Discharge Frequency 10 ~ 25 kHz Corona Resonant Frequency Internal Laboratory Test
Odor Elimination Efficiency ≥ 95.0% Rapid Deodorization Rate Internal Laboratory Test
Microbial Disinfection Efficacy ≥ 99.0% Airborne Bacterial Inactivation Internal Laboratory Test
Ceramic Plate Operational Lifespan ≥ 10,000 Hours (With Monthly Maintenance) Internal Laboratory Test
Power Module Operational Lifespan ≥ 20,000 Hours Continuous Industrial Duty Internal Laboratory Test
Safety & Regulatory Compliance Designed to meet CE Directives (Chassis CE Marked) Internal Laboratory Test

Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.

01. Honeycomb Mesh Dielectric Discharge

Engineered with dual high-purity ceramic plates featuring hexagonal honeycomb metallized discharge grids, providing uniform corona density and high ozone yield.

02. Integrated Slotted Heat Sinks

Heavy-duty extruded aluminum fin brackets dissipate dielectric heat rapidly under forced fan airflow, preventing thermal degradation and sustaining rated ozone yield.

03. Multi-Voltage Power Compatibility

Available in 220VAC, 110VAC mains configurations as well as 12VDC mobile vehicle inputs, providing seamless power flexibility for diverse equipment designs.

04. Washable & Renewable Electrodes

Ceramic plates can be easily cleaned monthly with ethyl alcohol to remove ambient dust and carbon films, restoring full ozone generating capacity without frequent replacements.

Technical Data & Specifications

Model Number Series: KYOG
Product Category Integrated Ceramic Plate Ozone Generator Module
Discharge Mechanism Dielectric Barrier Discharge (DBD) with Honeycomb Ceramic Electrodes
Operating Input Voltage AC 220V / AC 110V / DC 12V (Configurable / Customizable)
Rated Ozone Generation Output 5 g/h ~ 60 g/h (Customizable 0.1 g/h to 60 g/h)
Dielectric Plate Configuration Dual Stacked Honeycomb Alumina Ceramic Plates with Heat Sink Spacers
Cooling Requirement Forced Air Cooling (External Cooling Fan Strongly Recommended)
Maintenance Protocol Clean Ceramic Plates with Ethyl Alcohol Monthly; Use Only When Fully Dry
Enclosure & Mounting Flame-Retardant Encapsulated Base with Chassis Mounting Tabs
Net Unit Weight ≈ 0.45 kg (450 g)
Operational Safety Notice High-voltage output danger. Direct human occupancy prohibited during ozone treatment.
Compliance Standards Designed to meet CE standards (Chassis CE labeled)

Recommended Applications & Equipment Integration

Commercial Air Treatment & Deodorization Systems HVAC Duct Ozone Disinfection Units Commercial Dishwashers & Laundry Dryers Cold Storage & Food Preservation Refrigerators Electronic Shoe Cabinets & Wardrobe Sanitizers Automotive & Vehicle Interior Decontamination

Custom OEM & ODM Ozone Solutions (0.1 g/h to 60 g/h)

KINYO specializes in tailored ozone generation systems for global equipment manufacturers. Custom options include wide-ranging ozone output yields (from 0.1 g/h miniature modules up to 60 g/h multi-plate industrial banks), specialized operating voltages (12VDC, 24VDC, 110VAC, 220VAC), integrated cooling fan assemblies, tailored chassis mounting brackets, private label branding, and customized wiring harnesses.
