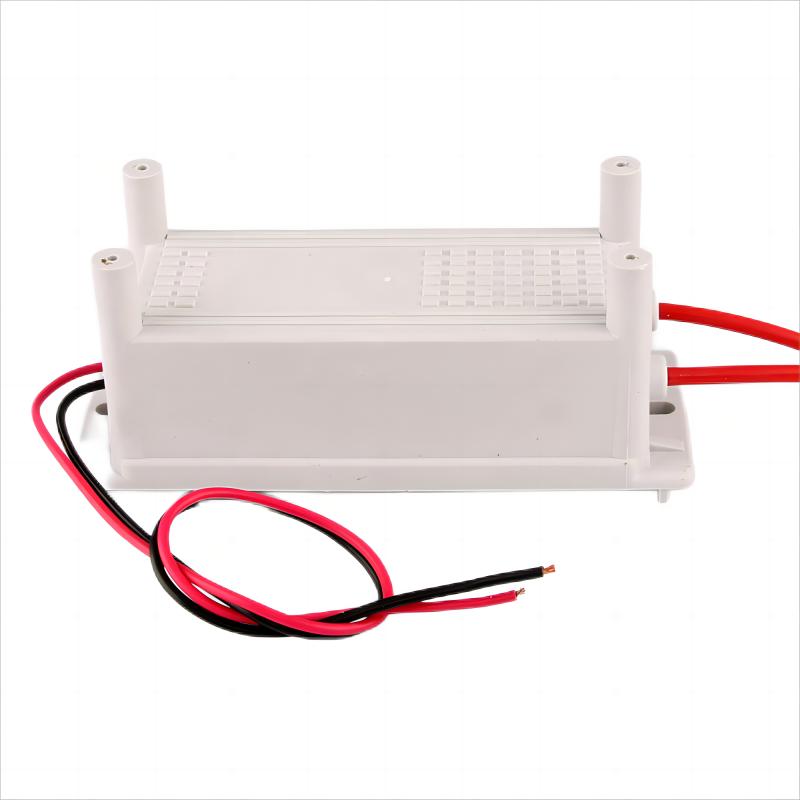

• KY-OG-65W high voltage ozone generator power supply shown in a top-down perspective studio view on a white background, highlighting the compact potted white flame-retardant ABS enclosure with four elevated corner mounting standoffs, pre-stripped red and black low-voltage input leads, and dual thick high-voltage insulated red output cables engineered to drive 0.5 to 10 g/h ozone generator tubes and ceramic discharge plates.
  • Underside baseplate view of the KY-OG-65W ozone generator power supply on a white background, showcasing the heavy-duty extruded aluminum fin heat sink secured with machine screws for rapid thermal dissipation, side chassis mountin

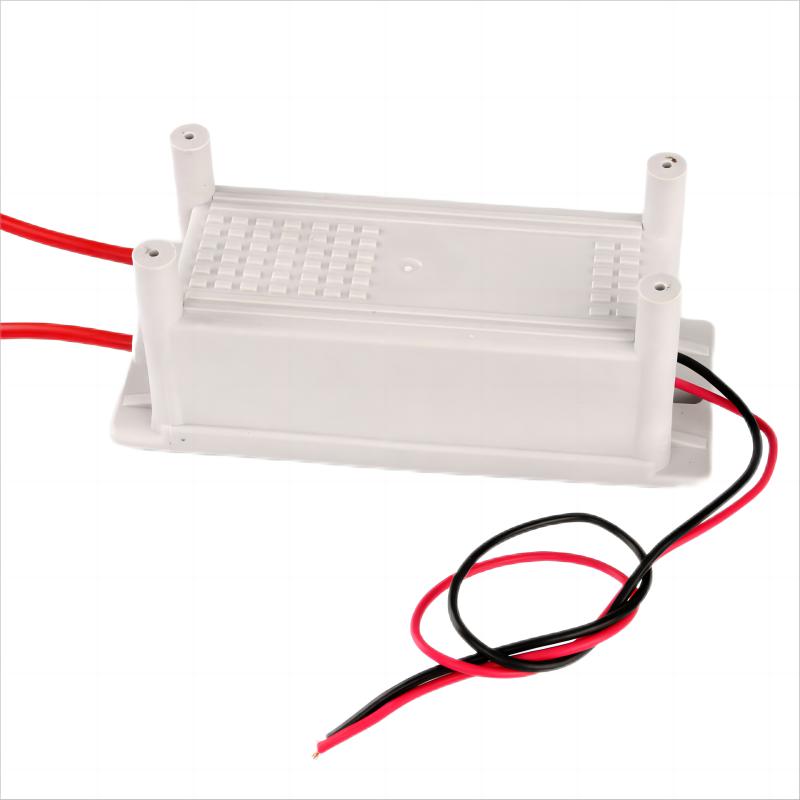

  • Isometric studio shot of the KY-OG-65W 65W high voltage power supply module on a white background, detailing the fully sealed waterproof and moisture-resistant white housing with corner mounting pillars, flexible red and black input wiring harness, and durable silicone high-voltage output wires capable of delivering 3.5 to 4.5 kV at 15 to 90 kHz resonant frequency.

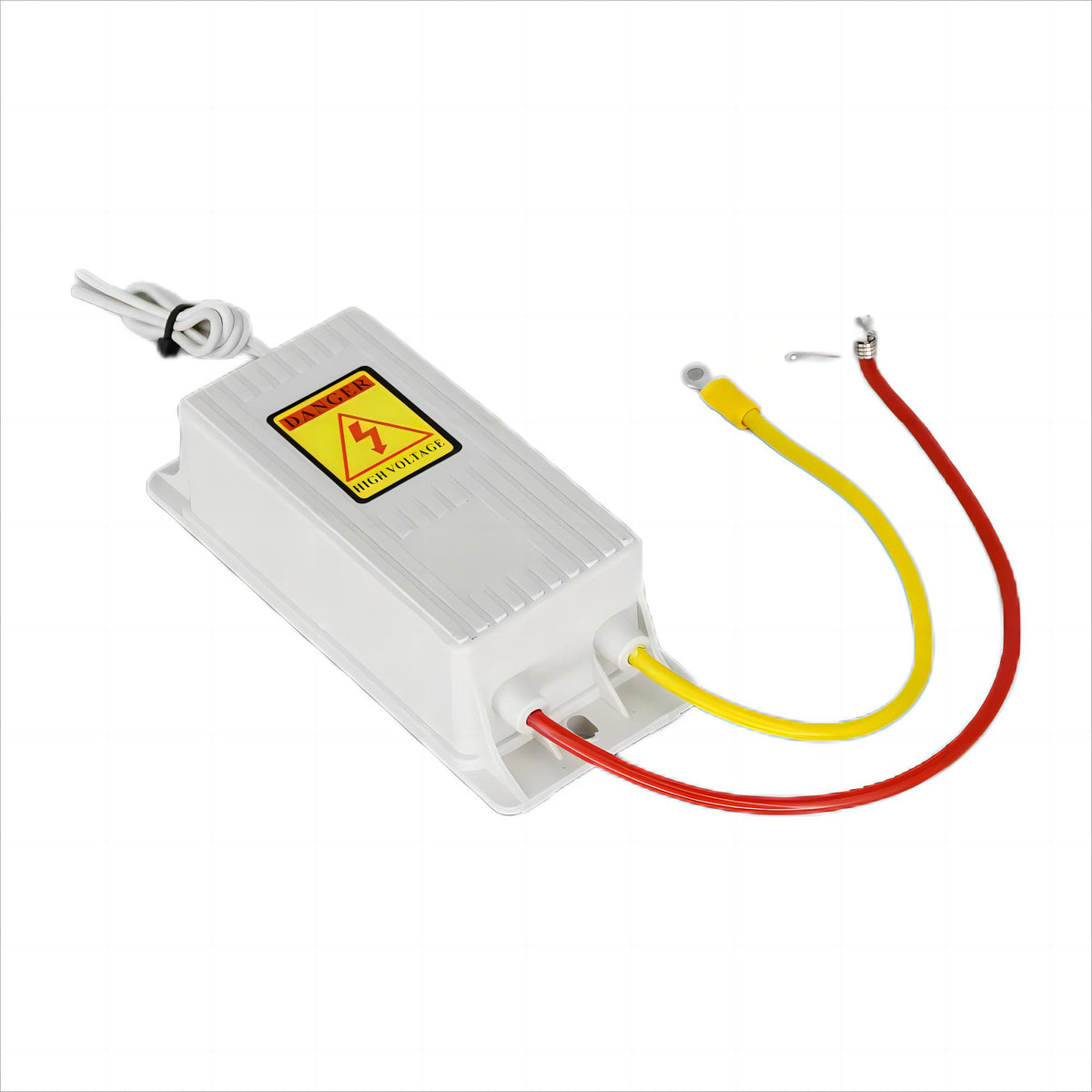

  • Top-angle view of the KY-OG-65W ozone power pack enclosure featuring a high-visibility yellow triangular DANGER HIGH VOLTAGE warning label on the ribbed white top cover, a neatly coiled white AC mains power cable, and high-voltage yellow and red output lead wires terminated with an insulated ring terminal and metal contact spring clip for fast electrode attachment.
  • Perspective studio view of the KY-OG-65W high-voltage ozone inverter module displaying the prominent DANGER HIGH VOLTAGE safety icon, side-exit pre-wired white AC supply cord, dual mounting flange ears, and thick silicone insulated yellow and red high-voltage leads with pre-crimped eyelet and clip connectors for safe OEM integration.

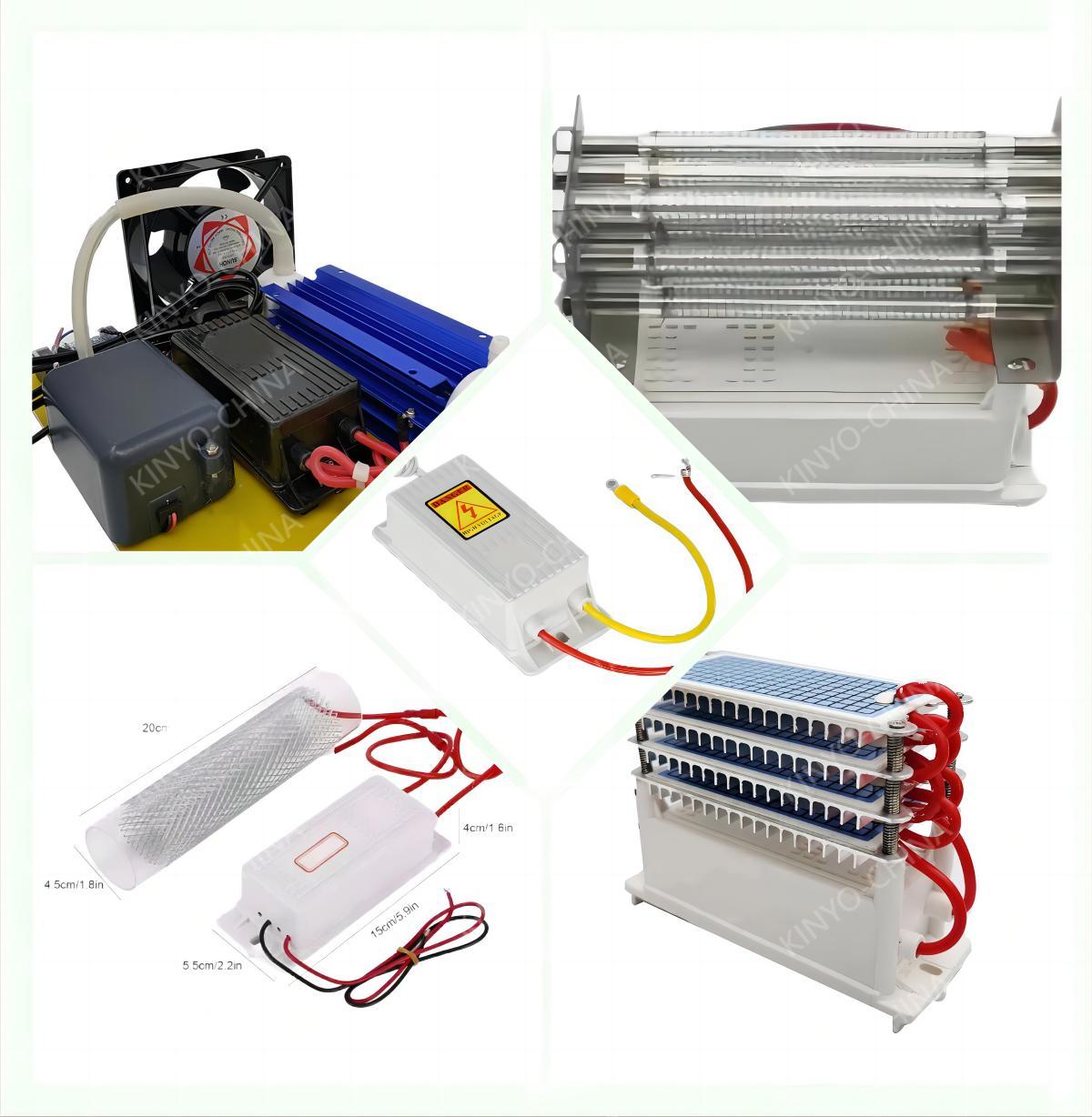

  • Comprehensive application and system assembly collage for the KY-OG-65W ozone generator power supply, illustrating compatibility across various configurations including fan-cooled ozone modules, quartz glass ozone discharge tubes with 20cm length and 148x60x45mm power pack dimensions, and multi-layer ceramic ozone plate stacks linked by high-voltage silicone tubing for commercial air sterilization and water treatment.
1 6

High Voltage Power Supply for Ozone Generator / KY-OG-65W / 3.5-4.5kV & 15-90kHz

High Voltage Power Supply for Ozone Generator / KY-OG-65W / 3.5-4.5kV & 15-90kHz

$5.49 USD
$7.65 USD $5.49 USD
Sale Sold out
Shipping calculated at checkout.
Input voltage
Max Rated Power 65 Watts Optimal Load ≤ 65W
High-Voltage Output 3.5–4.5 kV 15–90 kHz Frequency
Ozone Tube Capacity 0.5–10 g/h Tubes & Ceramic Plates
Chassis Dimensions 148×60×45 mm Aluminum Heat Sink Base

Commercial High-Frequency High-Voltage Power Inverter for Corona Discharge Ozone Generators

The KY-OG-65W high-voltage power supply module is engineered specifically for commercial air deodorization equipment, medical ozone sterilizers, and industrial water purification systems. Delivering a stable 3.5–4.5 kV high-frequency AC pulse (15–90 kHz) up to 65W, it efficiently excites dielectric barrier corona discharge across 0.5 to 10 g/h quartz glass ozone tubes and ceramic ozone plates. Featuring a heavy-duty extruded aluminum heat sink base and potted flame-retardant casing, it ensures continuous-duty reliability, long service life, and moisture resistance in challenging HVAC and industrial environments.

Performance & Verification (P&V)

Parameter Result / Accuracy Notes
Operating Input Voltage AC 200–240V / AC 100–130V (50/60 Hz) Internal Laboratory Test
High-Voltage Output Voltage 3.5 – 4.5 kV AC Pulse Internal Laboratory Test
Output Operating Frequency 15 – 90 kHz High-Frequency Modulation Internal Laboratory Test
Maximum Continuous Power 65 Watts (Optimal Operating Load ≤ 65W) Internal Laboratory Test
Applicable Ozone Generation Yield 0.5 – 10 g/h Quartz Tubes & Ceramic Plates
Continuous Operational Lifespan > 20,000 Hours (2-Year Factory Warranty) Internal Laboratory Test
Environmental Operating Limits -10°C ~ 45°C (Optimal 1–20°C), ≤85% RH Internal Laboratory Test
Safety & Regulatory Compliance Designed to meet CE, FCC & RoHS Directives

Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, airflow, pollutant concentration and installation environment. Test reports are available upon request.

Engineering & Technical Highlights

01. Wide Frequency Inverter (15–90kHz)

High-frequency electronic resonant circuit ensures rapid corona excitation, high dielectric ionization efficiency, and minimal thermal degradation of ceramic/quartz load elements.

02. Integrated Extruded Aluminum Heat Sink

Heavy-duty fluted aluminum baseplate draws heat away from power switching transistors, maintaining safe junction temperatures during 24/7 continuous industrial duty cycles.

03. Universal Modular Tube Compatibility

Engineered to drive 0.5g, 10g, 15g, 20g, and up to 60g modular ozone generators across single/stacked ceramic plates and honeycomb quartz discharge chambers.

04. High-Voltage Moisture & Arc Protection

Reinforced silicone high-voltage leads with pre-crimped ring/clip terminals and potted flame-retardant housing prevent corona arcing, short-circuit faults, and moisture ingress.

Technical Data & Specifications

Model / Standardized Identifier KY-OG-65W (Module Ozone Power Supply)
Product Category High-Voltage Ozone Generator Power Supply
Circuit Inverter Topology High-Frequency Resonant Corona Discharge Inverter
Rated AC Input Voltage AC 200V–240V / AC 100V–130V (50/60 Hz)
Rated High-Voltage Output 3.5 kV – 4.5 kV AC Pulse
Resonant Output Frequency 15 kHz – 90 kHz High-Frequency Band
Maximum Power Consumption 65 Watts Maximum (Optimal Continuous Load: ≤ 65W)
Compatible Ozone Load 0.5–10 g/h Quartz Glass Tubes or Ceramic Ozone Plates
Output Wiring Harness Silicone High-Voltage Leads with Ring Lug & Spring Clip Terminals
Thermal Management Extruded Aluminum Fin Heat Sink Base
Enclosure Profile & Mounting Flame-Retardant ABS with Chassis Screw Mounting Flange Slots
Physical Dimensions 148 mm (L) × 60 mm (W) × 45 mm (H)
Net Unit Weight 450 g (0.45 kg)
Operating Environmental Window -10°C to +45°C (Optimal: 1°C to 20°C), ≤ 85% RH
Compliance Standards Designed to meet CE, FCC, and RoHS standards

Recommended Applications & Equipment Integration

0.5–10 g/h Quartz Ozone Generator Tubes Ceramic Ozone Discharge Plate Assemblies Commercial Restroom & Garbage Deodorizers HVAC Duct & Air Handling Ozone Injection Agricultural & Wastewater Treatment Systems Medical & Food Processing Air Sterilizers

Custom OEM & ODM High-Voltage Power Solutions

As a leading manufacturer of corona discharge and high-voltage purification electronics with 20+ years of industrial experience, KINYO delivers bespoke engineering for ozone power supplies. Tailored options include custom input voltages (12VDC, 24VDC, 110VAC, 220VAC, 277VAC), customized resonant frequencies, specialized high-voltage output ranges (up to 10kV+), custom lead wire lengths and connector terminations, private labeling, and integrated protection circuits (thermal shutdown, open/short circuit cutoff).
