Digital Temperature Controller PCBA for HVAC & Ovens / OEM/ODM / -30°C~300°C & 3000W Relay

Name: Digital Temperature Controller PCBA for HVAC & Ovens / OEM/ODM / -30°C~300°C & 3000W Relay
Brand: KINYO-CHINA
SKU: KY-TC-3000W-ODM
Price: 66.00 USD
Availability: InStock

$66.00 USD

Sale Sold out

Shipping calculated at checkout.

-30°C ~ 300°C

Ultra-Wide Temperature Range

±0.5°C

High-Precision Control Accuracy

3000W Max

Heavy-Duty Relay Output

100-250VAC

Universal Wide-Range Input

PERFORMANCE & VERIFICATION

Parameter	Result	Notes
Temperature Control Range	-30.0℃ ~ +300.0℃	Wide-span sensor supported (Pending Confirmation)
Temperature Control Accuracy	±0.5℃ Resolution	Calibrated ADC acquisition (Pending Confirmation)
Maximum Output Switching Power	3000W Max	Heavy-duty electromechanical relay (Pending Confirmation)
Operating Input Voltage	100VAC ~ 250VAC 50/60Hz	Universal grid supply compatible (Pending Confirmation)
Control Return Difference (Hysteresis)	0.5℃ ~ 5.0℃ Adjustable	Adjustable anti-cycling delay (Pending Confirmation)

Note: Performance results were obtained under controlled laboratory conditions. Actual performance may vary depending on test conditions, ambient temperature, sensor probe type, wire run resistance, and load inductance. Test reports are available upon request.

ENGINEERING HIGHLIGHTS

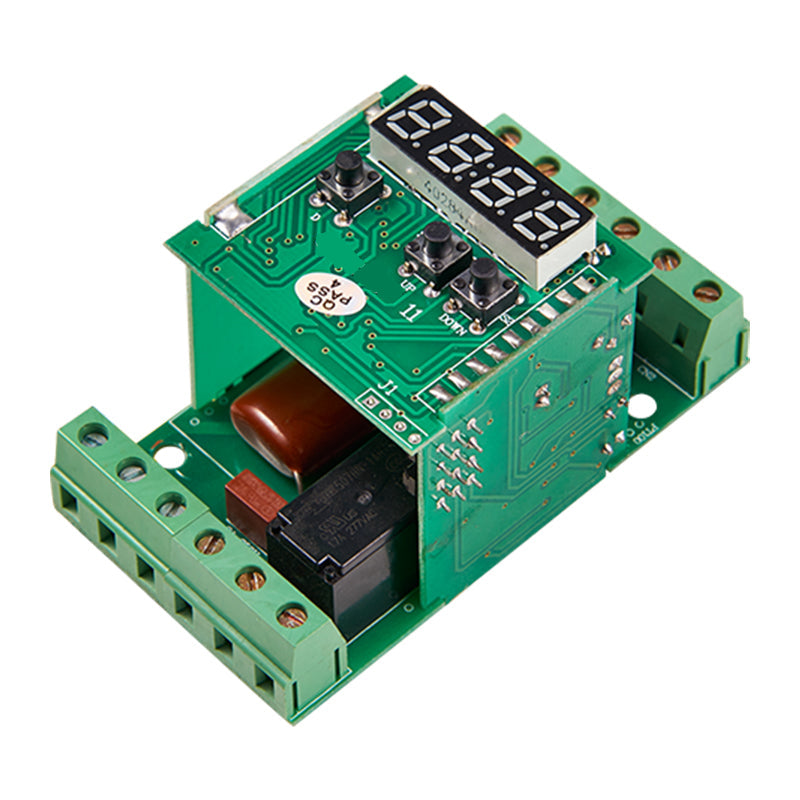

Dual-Deck Modular Architecture

Separates the high-voltage 3000W switching relay power base from the front-panel 4-digit digital display and tactile key MCU daughterboard, isolating electrical noise and maximizing heat dissipation.

Dual-Mode Heating & Cooling Logic

Configurable firmware accommodates positive-coefficient heating elements (ovens, water tanks) or compressor-based cooling loads (refrigeration, chillers) with customizable start-delay protection.

Precision Hysteresis & Offset Calibration

Features 0.5°C to 5.0°C programmable return difference to prevent relay chattering and mechanical wear, coupled with digital temperature offset calibration to eliminate probe lead resistance errors.

Heavy-Duty Industrial Terminals

Equipped with flame-retardant screw terminal blocks rated for continuous high-current industrial wiring, supporting rapid field wiring and secure connection to external sensor probes and loads.

TECHNICAL SPECIFICATIONS

Product Model	OEM/ODM (KY-TC-3000W-ODM)
Core Processor	High-Performance 8-Bit Industrial MCU
Operating Supply Voltage	100VAC ~ 250VAC 50/60Hz
Controllable Temperature Range	-30.0°C to +300.0°C (8 Programmable Sub-Ranges)
Temperature Control Accuracy	0.5°C Resolution
Maximum Switching Capacity	3000W Max Load (High-Power Relay Contact)
Control Return Difference (Hysteresis)	0.5°C ~ 5.0°C Adjustable
Display & Input Interface	4-Digit 7-Segment LED Digital Display + 3 Tactile Push Buttons
Mounting & Connection	Heavy-Duty Industrial Screw Terminal Blocks

TARGET APPLICATIONS

Commercial Baking & Industrial Ovens Electric & Heat Pump Water Heaters Cold Storage & Commercial Chillers HVAC Fan Coil & Air Terminal Units Agricultural & Laboratory Incubators

OEM/ODM Custom Engineering Capabilities

KINYO-CHINA delivers tailored electronic temperature controller PCBA solutions. We support custom board dimensions, sensor probe interfaces (NTC, PT100, PT1000, K-Type Thermocouple), modified relay power capacities up to 40A, customized UI daughterboards (LCD, OLED, or color TFT), proprietary firmware control curves, and custom Modbus RS-485 / WiFi IoT communications.
